Wilwood Mustang Compact Tandem Master Kit, Chrome Powder-Coated 7/8-Inch Bore, Pushrod and Left Valve

This Mustang manual-brake package pairs a 7/8-inch integral-reservoir master with its pushrod and left-side valve bracket. Chrome powder coat finishes the master body; the compact housing still requires room for its cover and connecting tubes. For motorsport, street-performance and specialized applications, Wilwood Engineering designs and manufactures disc brake systems and their components. The Camarillo, California company was founded by Bill Wood in 1977. Its range of rotors, calipers, valves, fittings, brake lines and master cylinders supports assemblies whose individual parts must be selected to work together.

Technical Details

• Manufacturer part number: 261-15522-P
• Material: Aluminum
• Cylinder bore: 7/8"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
• Fluid capacity: 7.8 / 4.7 oz
• Flange-to-end length: 6.55"
• Overall Length: 12.32"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 5.75"
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

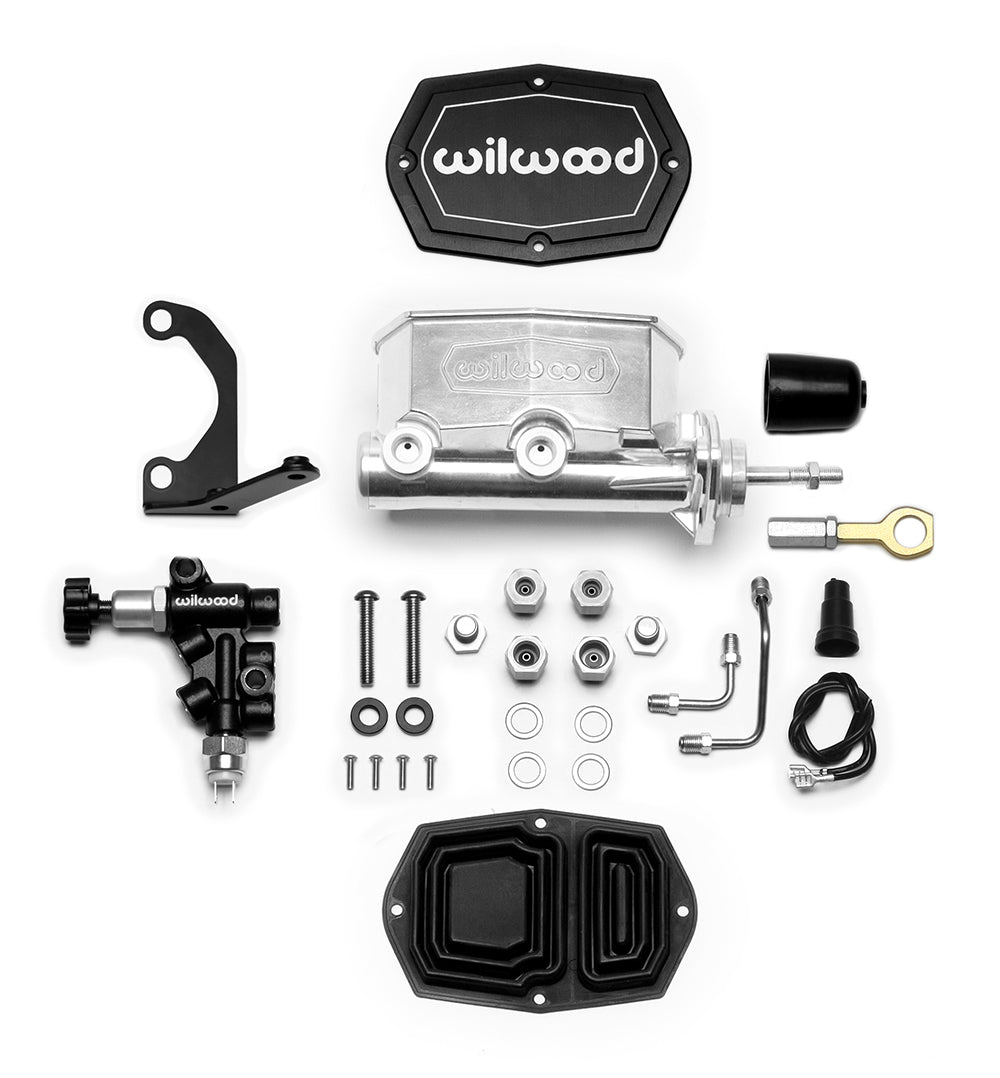

• Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch

Fitment & Compatibility

Use the documented Mustang application to check the pedal connection. Confirm hydraulic sizing and space for the left-side tube assembly.

Wilwood’s kit summary gives a 1964–1973 Ford/Mustang range, while the corresponding bare-master family identifies 1964–1972. Confirm the actual manual pedal, supplied eyelet and mounting geometry, particularly for 1973, before ordering.
