Wilwood Chrome Powder-Coated 15/16-Inch Remote Tandem Master Kit for Classic Mustang, Pushrod and Left Valve

SKU: 261-15493-P

$511.25

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

This chrome powder-coated remote-master kit retains separate fluid feeds for the tandem circuits and includes the classic Mustang pushrod arrangement. Its 15/16-inch bore and left-mounted valve must suit the existing brake installation. Wilwood Engineering designs disc brake systems and manufactures a range of calipers, master cylinders, valves, fittings, rotors and brake lines. Founded in 1977 by Bill Wood, the Camarillo, California company serves specialized, street-performance and motorsport applications. Component selection requires understanding the brake assembly as a whole, including its hydraulic sizing and mechanical interfaces.

Technical Details

Manufacturer part number: 261-15493-P
Material: Aluminum / Plastic
Cylinder bore: 15/16"
Pressure circuits: 2
Reservoir Type: Remote
Fluid capacity: 7.0 / 7.0 oz
Flange-to-end length: 6.56"
Overall Length: 10.76"
Mounting centers: 3.22–3.40"
Pushrod dimensions: 4.23" x 3/8-24
Finish: Chrome powder coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly

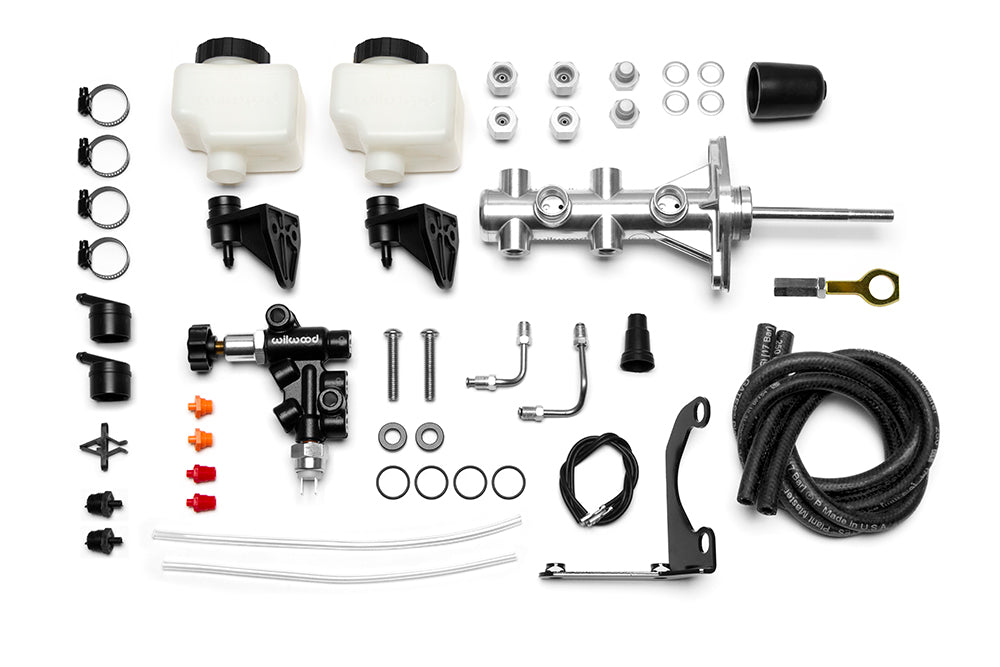

Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs
Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting

Fitment & Compatibility

Check the precise Mustang pedal layout against the instructions. The reservoir supply, pushrod travel and mounting flange must work together without binding or feed restriction.
