Wilwood Chrome Powder-Coated Compact Tandem Master Cylinder Kit, Left Valve Bracket, 1-1/8-Inch Bore, No Pushrod

SKU: 261-14964-P

$511.34

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

A chrome powder-coated compact master with a 1-1/8-inch bore supplies the tandem hydraulic circuits in this left-bracket kit. The combination valve and formed tubes accompany the master, while an operating pushrod is excluded. Wilwood Engineering's design and manufacturing work covers disc brake systems for specialized applications, street performance and motorsport. Founded by Bill Wood in 1977, the company operates from Camarillo, California. Its component range includes master cylinders, fittings, brake lines, rotors, valves and calipers, each requiring selection in the context of the complete brake system.

Technical Details

Manufacturer part number: 261-14964-P
Material: Aluminum
Cylinder bore: 1-1/8"
Pressure circuits: 2
Stroke Length: 1.10 in
Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
Fluid capacity: 7.8 / 4.7 oz
Flange-to-end length: 6.55"
Overall Length: 7.16"
Mounting centers: 3.22–3.40"
Finish: Chrome powder coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly

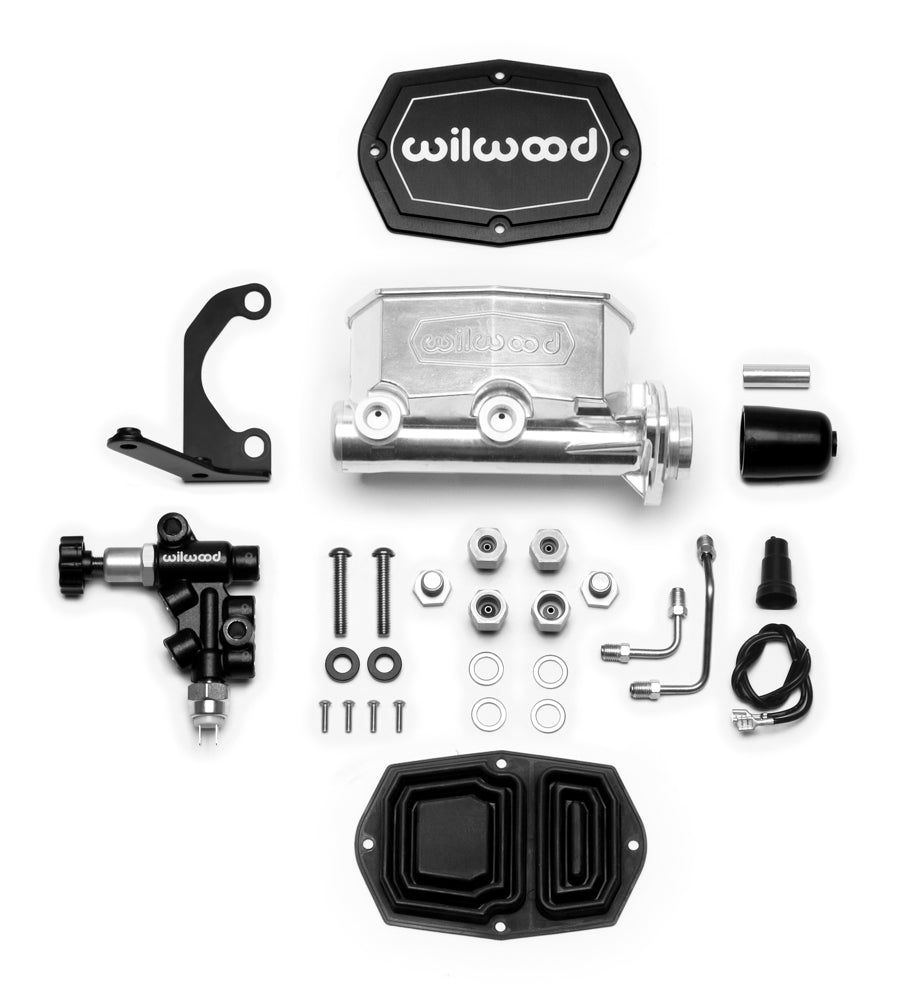

Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch

Fitment & Compatibility

Verify booster rod depth before choosing the kit. Its larger bore must agree with the calipers, pedal leverage and available piston travel.
