Wilwood Chrome Powder-Coated One-Inch Tandem Master Cylinder and Left-Bracket Valve Kit, Pushrod Excluded

SKU: 261-14963-P

$511.34

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

The left-mounted combination valve joins a chrome powder-coated, one-inch compact tandem master in this package. Its input does not include a pushrod, so the actuator must be selected around the compatible booster or linkage arrangement. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, Wilwood designs and manufactures disc brake systems and a component range covering master cylinders, rotors, calipers, fittings, valves and brake lines. Across its motorsport, specialized and street-performance applications, the correct choice depends on the complete brake system rather than one dimension alone.

Technical Details

Manufacturer part number: 261-14963-P
Material: Aluminum
Cylinder bore: 1.00"
Pressure circuits: 2
Stroke Length: 1.10 in
Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
Fluid capacity: 7.8 / 4.7 oz
Flange-to-end length: 6.55"
Overall Length: 7.16"
Mounting centers: 3.22–3.40"
Finish: Chrome powder coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly

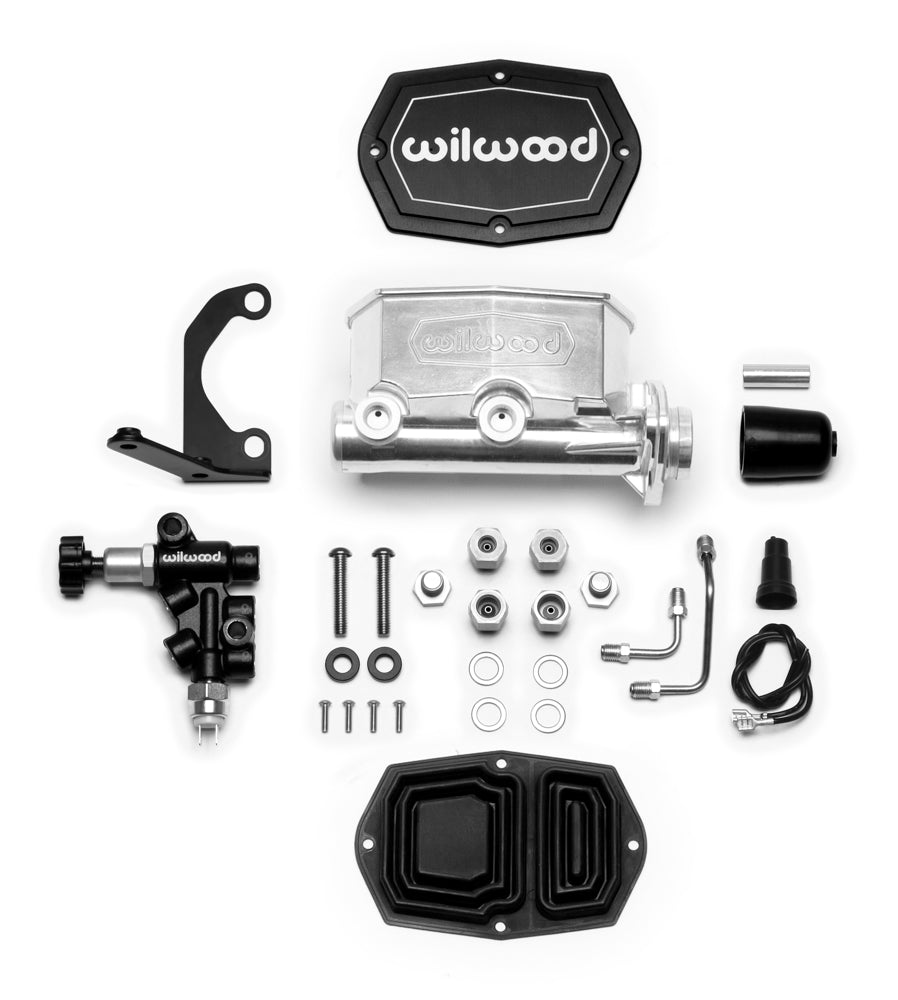

Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch

Fitment & Compatibility

Confirm valve clearance and booster-to-piston engagement. The vehicle lines need the correct flare adapters, with front and rear circuits routed through the matching valve connections.
