Wilwood Left-Bracket Compact Tandem Master Cylinder Kit with Pushrod, 15/16-Inch Bore, Chrome Powder Coat

SKU: 261-14962-P

$511.34

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

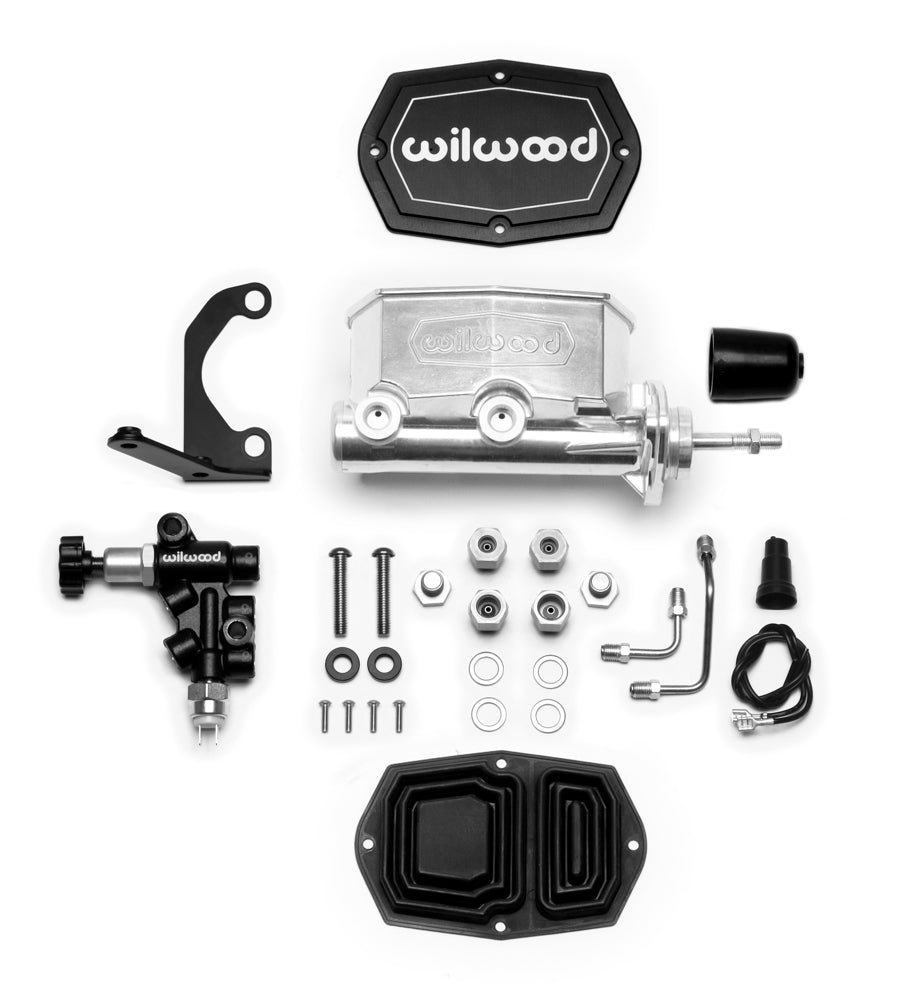

A chrome powder-coated compact master is packaged with the left valve bracket, combination valve, connecting tubes and pushrod. Its 15/16-inch bore must suit the required pedal effort and fluid displacement. Wilwood Engineering, the Camarillo, California disc brake manufacturer founded by Bill Wood in 1977, designs and builds systems for specialized, motorsport and street-performance applications. The product range covers brake lines, valves, fittings, calipers, master cylinders and rotors. A replacement component must preserve the intended relationship between the system's hydraulic and mechanical parts.

Technical Details

Manufacturer part number: 261-14962-P
Material: Aluminum
Cylinder bore: 15/16"
Pressure circuits: 2
Stroke Length: 1.10 in
Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
Fluid capacity: 7.8 / 4.7 oz
Flange-to-end length: 6.55"
Overall Length: 10.93"
Mounting centers: 3.22–3.40"
Pushrod dimensions: 4.38" x 3/8-24
Finish: Chrome powder coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly
Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch

Fitment & Compatibility

Check pedal engagement and room for the left bracket. Preserve the required piston travel when setting pushrod clearance and pedal stops.
