Wilwood Left-Valve Black Remote Master Cylinder Kit, 1-1/8-inch Tandem with Pushrod

The included captured rod differentiates this 1-1/8-inch Remote Tandem kit from the rodless large-bore version. Its black master, twin reservoir supply and left-side combination valve are intended for an installation whose actuation geometry has been specifically checked. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and builds disc brake systems, with calipers, master cylinders, rotors, brake lines, fittings and valves serving street-performance, motorsport and specialized applications. Selecting an individual part requires checking how it works with the rest of the braking assembly.

Technical Details

• Manufacturer part number: 261-14391-BK
• Material: Aluminum / Plastic
• Cylinder bore: 1-1/8"
• Pressure circuits: 2
• Reservoir Type: Remote
• Fluid capacity: 7.0 / 7.0 oz
• Flange-to-end length: 6.56"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 4.23" x 3/8-24
• Finish: Black E-coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

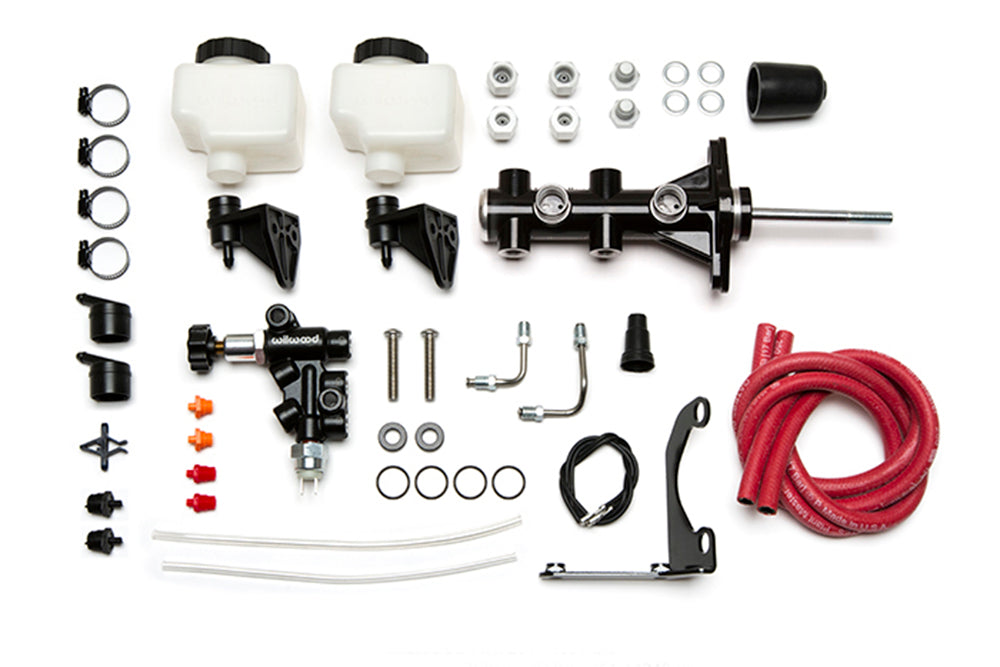

• Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
• Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
• Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs
• Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting
• Housing envelope: 7.16 inches as listed, excluding the projecting operating rod; verify the complete rod-equipped length

Fitment & Compatibility

A 1-1/8-inch bore requires deliberate pedal-effort and displacement calculations when used manually. Confirm full travel, complete return and the overall space including the projecting pushrod; the 7.16-inch housing dimension is not the complete rod-equipped envelope.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1189 instructions and specifications
• Wilwood FL162 instructions and specifications
• Wilwood DS1178 instructions and specifications

With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
