Wilwood Left-Bracket Chrome Remote Master Cylinder Kit, 1-inch Tandem Bore and Combination Valve

The one-inch cylinder in this kit has a chrome powder-coated body and no captured operating rod. A left-side combination valve, preformed tubes and two 7 oz reservoirs complete the hydraulic package around the separately selected actuation arrangement. From calipers and rotors to master cylinders, valves, brake lines and fittings, Wilwood Engineering's range covers disc brake systems and service components. Bill Wood founded the company in 1977; it is based in Camarillo, California and designs and manufactures for street-performance, specialized and motorsport applications. All component choices need to account for the complete system.

Technical Details

• Manufacturer part number: 261-14251-P
• Material: Aluminum / Plastic
• Cylinder bore: 1.00"
• Pressure circuits: 2
• Reservoir Type: Remote
• Fluid capacity: 7.0 / 7.0 oz
• Flange-to-end length: 6.56"
• Overall Length: 7.16"
• Mounting centers: 3.22–3.40"
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

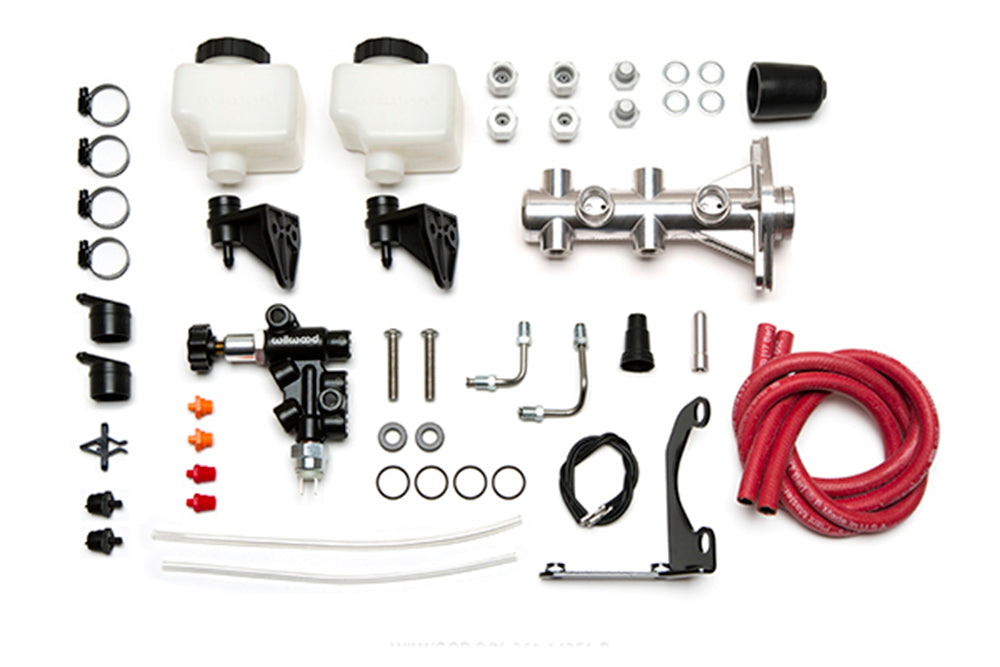

• Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
• Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
• Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs
• Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting

Fitment & Compatibility

Verify 3.22–3.40-inch flange spacing and the actual piston engagement depth. The one-inch bore may be used in a matched manual or assisted installation; reservoir location, feed lines and valve clearance require their own checks.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1189 instructions and specifications
• Wilwood FL162 instructions and specifications
• Wilwood FL467 instructions and specifications
• Wilwood DS1178 instructions and specifications
