Wilwood Left-Valve Remote Master Cylinder Kit, Black 15/16-inch Tandem with Captured Rod

The 15/16-inch bore in this black Remote Tandem kit is paired with a captured pushrod for manual operation. The package adds two reservoirs and a left-side combination valve so fluid supply and rear-pressure control can be arranged around the installation. The disc brake systems Wilwood Engineering designs and manufactures include calipers, rotors, master cylinders, brake lines, valves and fittings. The company dates to Bill Wood's founding in 1977 and is based in Camarillo, California. Motorsport, specialized and street-performance applications all call for parts matched to the operating requirements of the full system.

Technical Details

• Manufacturer part number: 261-14250-BK
• Material: Aluminum / Plastic
• Cylinder bore: 15/16"
• Pressure circuits: 2
• Reservoir Type: Remote
• Fluid capacity: 7.0 / 7.0 oz
• Flange-to-end length: 6.56"
• Overall Length: 10.76"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 4.23" x 3/8-24
• Finish: Black E-coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

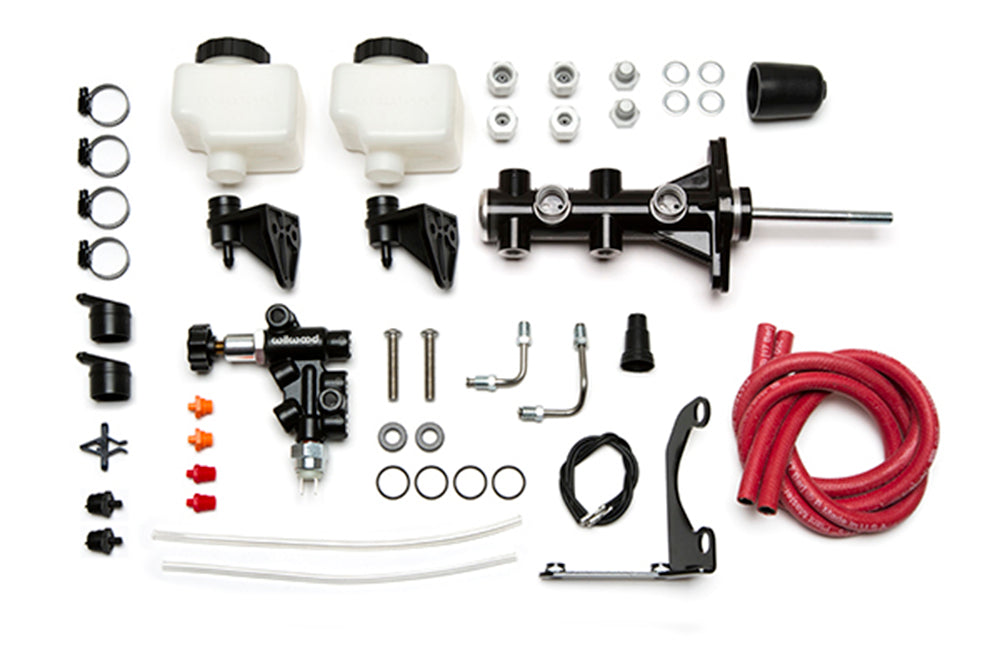

• Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
• Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
• Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs
• Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting

Fitment & Compatibility

Confirm pedal leverage and travel for the installed calipers, then check the 3.22–3.40-inch mounting flange. The remote feed arrangement needs suitable reservoir elevation and protected hose routing; the bracket also requires usable space on the master’s left side.
