Wilwood Left-Bracket Chrome Remote Master Cylinder and Valve Kit, 7/8-inch Bore with Pushrod

A chrome powder-coated Remote Tandem master gives this 7/8-inch kit a separate-reservoir layout. It arrives with the captured pushrod, two 7 oz containers and the left-hand valve assembly, including formed master-to-valve tubes. For motorsport, street-performance and specialized applications, Wilwood Engineering designs and manufactures disc brake systems and their components. The Camarillo, California company was founded by Bill Wood in 1977. Its range of rotors, calipers, valves, fittings, brake lines and master cylinders supports assemblies whose individual parts must be selected to work together.

Technical Details

• Manufacturer part number: 261-14249-P
• Material: Aluminum / Plastic
• Cylinder bore: 7/8"
• Pressure circuits: 2
• Reservoir Type: Remote
• Fluid capacity: 7.0 / 7.0 oz
• Flange-to-end length: 6.56"
• Overall Length: 10.76"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 4.23" x 3/8-24
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

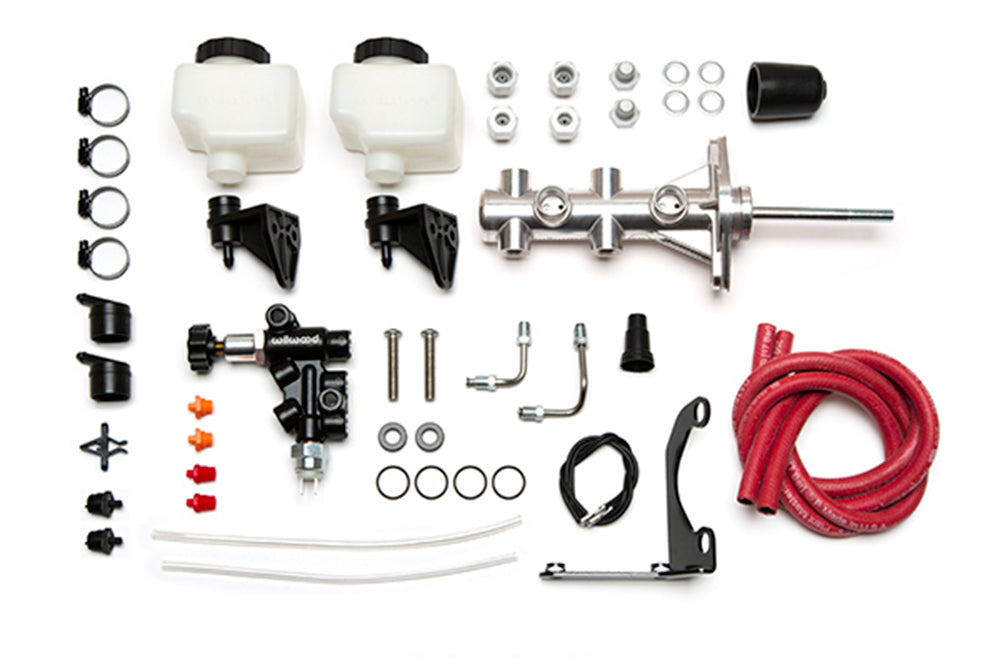

• Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch
• Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
• Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs
• Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting

Fitment & Compatibility

Use a manual linkage with the correct clevis thread and sufficient stroke. Reservoir placement, hose fall and valve access are installation choices that must be checked alongside bore size; keep the two circuit feeds and pressure outlets correctly assigned.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1189 instructions and specifications
• Wilwood FL162 instructions and specifications
• Wilwood FL467 instructions and specifications
• Wilwood DS1178 instructions and specifications

The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
