Wilwood Left-Valve Classic Mustang Master Cylinder Kit, Chrome 7/8-inch Tandem with Eyelet

A chrome powder-coated 7/8-inch master anchors this Mustang manual-brake kit. The supplied eyelet linkage is combined with a black left-hand valve assembly, allowing the cylinder and proportioning hardware to be installed as a matched package. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, Wilwood designs and manufactures disc brake systems and a component range covering master cylinders, rotors, calipers, fittings, valves and brake lines. Across its motorsport, specialized and street-performance applications, the correct choice depends on the complete brake system rather than one dimension alone.

Technical Details

• Manufacturer part number: 261-13272-P
• Material: Aluminum
• Cylinder bore: 7/8"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral
• Fluid capacity: 8.0 / 4.8 oz
• Flange-to-end length: 8.15"
• Overall Length: 13.65"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 5.75"
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

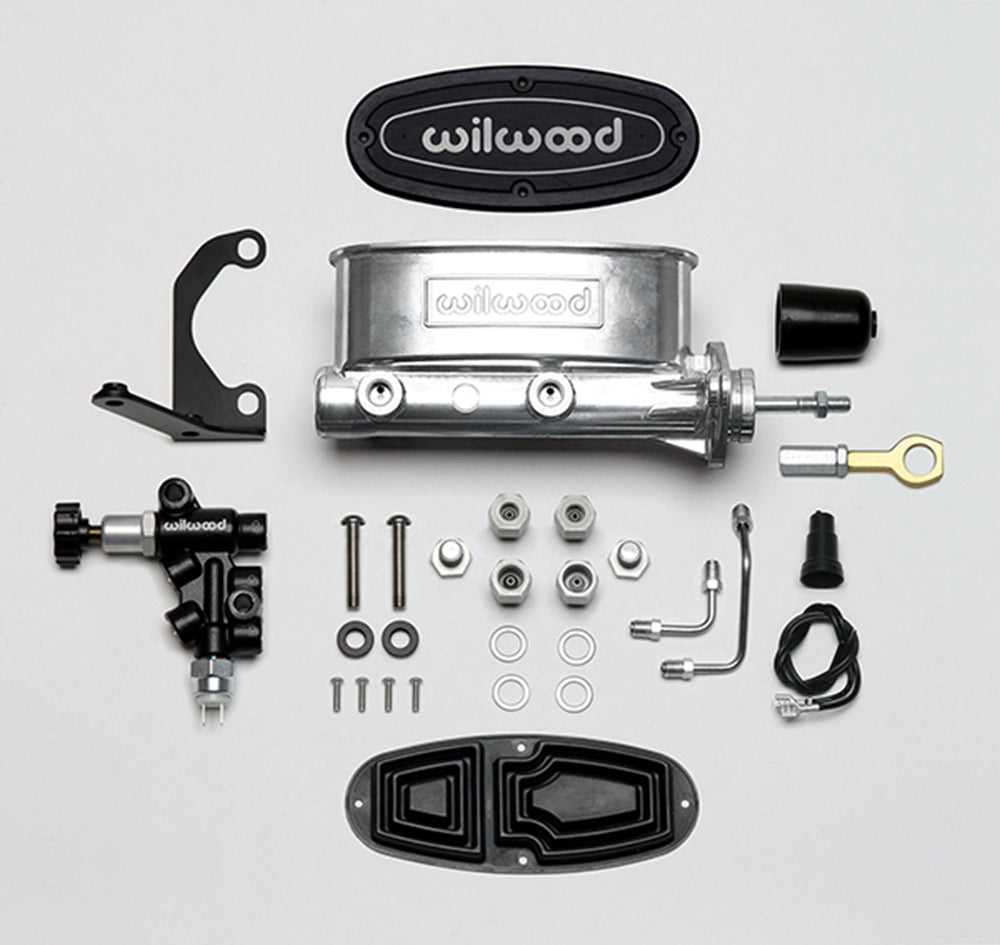

• Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch

Fitment & Compatibility

Confirm the classic Ford Mustang manual pedal geometry; the bare-master family lists 1964–1972. Allow full stroke and unimpeded return, and size the bore for the installed brakes rather than treating the vehicle name as approval of every conversion.
