Wilwood Left-Bracket Tandem Master and Valve Kit, Chrome 7/8-inch Bore with Manual Pushrod

The 7/8-inch master in this package has a chrome powder-coated body and a supplied operating pushrod. Its black left-hand valve assembly adds rear-pressure adjustment and a hydraulic brake-light switch to the matched master-to-valve plumbing. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems. Its Camarillo, California operation supplies master cylinders, brake lines, valves, rotors, fittings and calipers for specialized applications as well as motorsport and street-performance vehicles. Replacement and conversion parts need to match the complete braking arrangement.

Technical Details

• Manufacturer part number: 261-13271-P
• Material: Aluminum
• Cylinder bore: 7/8"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral
• Fluid capacity: 8.0 / 4.8 oz
• Flange-to-end length: 8.15"
• Overall Length: 12.26"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 4.11" x 3/8-24
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

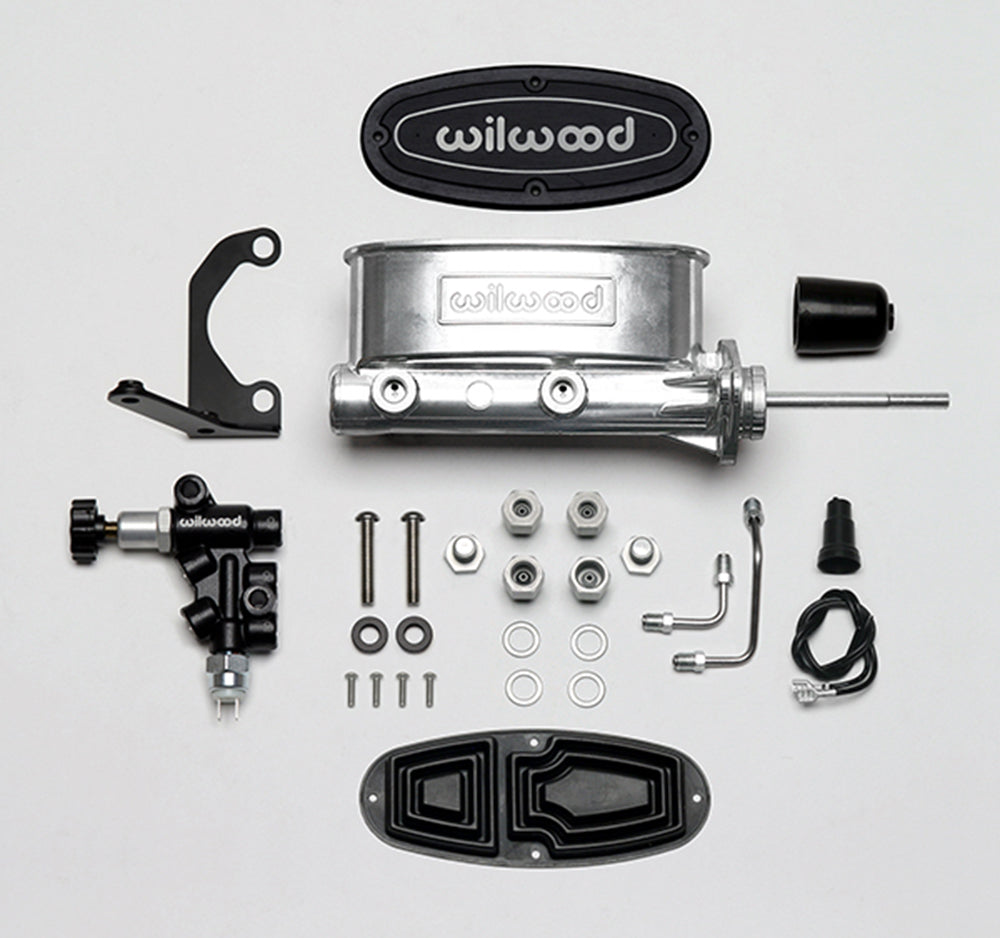

• Kit contents: Master cylinder, left-side combination proportioning valve and bracket, formed stainless connecting tubes and mounting hardware
• Combination-valve functions: Adjustable rear pressure, isolated front/rear circuits, front-line junction and hydraulic brake-light switch

Fitment & Compatibility

Use with a correctly configured manual-brake linkage, checking the 3/8-24 clevis connection and full stroke. Route the front and rear circuits to their designated valve ports and adjust proportioning only after the complete system has been bled and tested.
