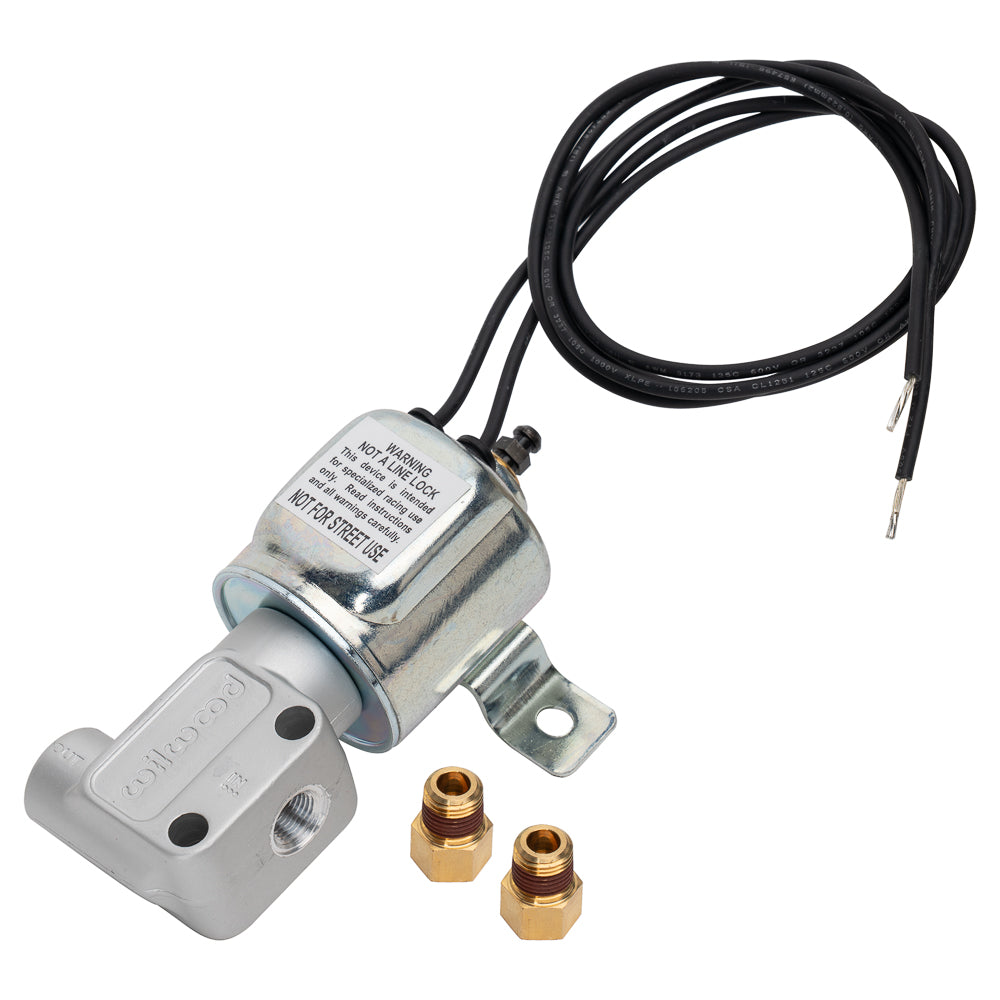

Wilwood Electric Brake Line Shut-Off Valve, 12-Volt Solenoid for Racing Use

This solenoid-operated valve shuts off pressure delivery to a selected racing brake circuit when energized. Fluid can still return toward the master cylinder, so the valve does not trap applied pressure and must not be treated as a line lock or parking brake. From calipers and rotors to master cylinders, valves, brake lines and fittings, Wilwood Engineering's range covers disc brake systems and service components. Bill Wood founded the company in 1977; it is based in Camarillo, California and designs and manufactures for street-performance, specialized and motorsport applications. All component choices need to account for the complete system.

Technical Details

• Manufacturer part number: 260-9921
• Material: Aluminum / Steel
• Finish: Clear Anodize
• Component: Electric line shut-off valve, not a line lock
• Electrical supply: 12 volts through toggle switch and recommended 5 amp fuse
• Hydraulic action: Blocks downstream pressure while energized; permits return flow to master
• Ports: 1/8-27 NPT with 3/8-24 female inverted-flare fittings
• Use restriction: Specialized racing only; not for street use
• Mounting: Bleed screw upward; mounting screws separate

Fitment & Compatibility

For specialized racing use only, not street use. Mount between the master and controlled caliper with the bleed screw upward, use the specified 12-volt fused switch circuit and turn power off whenever the shut-off function is not needed. Mounting screws are not supplied.

WARNING • NOT A LINE LOCK • NOT FOR STREET USE. This device is intended for specialized racing use only.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS572 instructions and specifications
• Wilwood FL162 instructions and specifications

For help choosing the correct service or conversion component, contact PMB Performance with the existing brake-system details. Our team has over 20 years of experience working through parts and fitment requirements.
