Product details

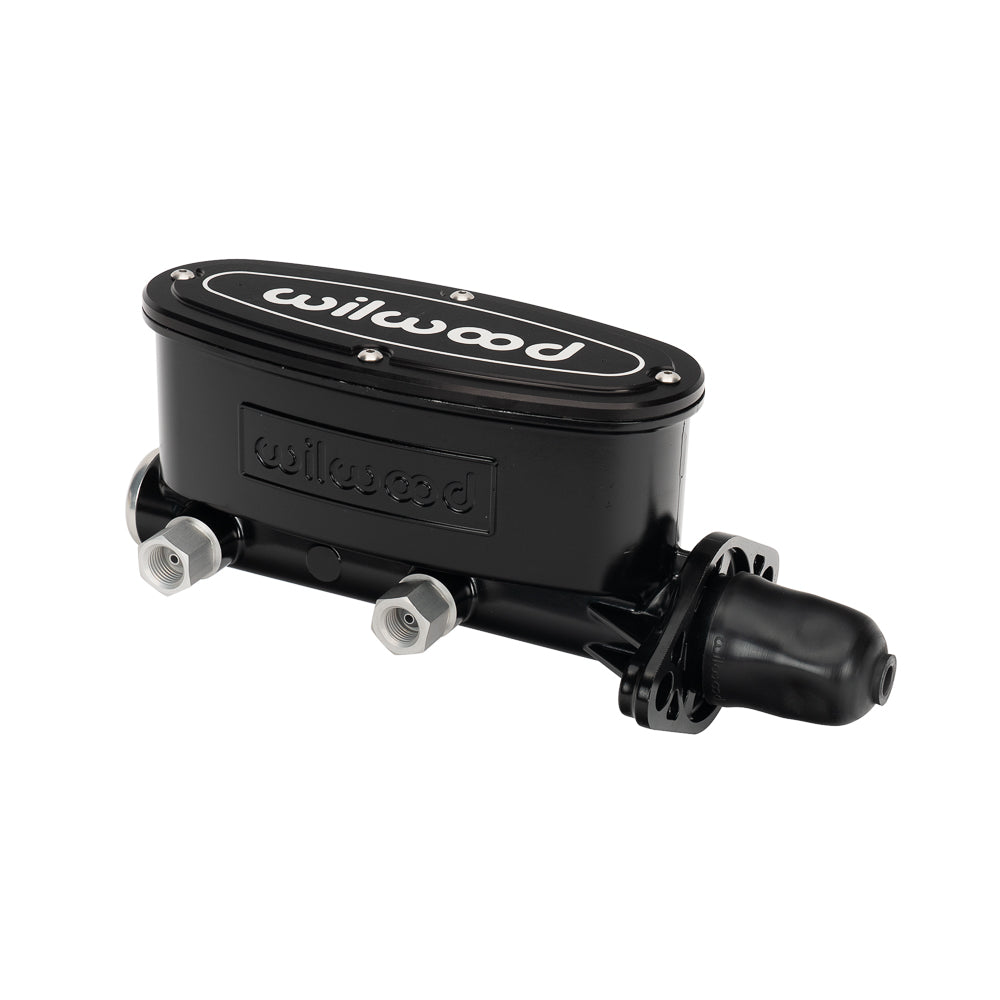

With a 1-1/8-inch bore, this black E-coated tandem master prioritizes the displacement needs of an assisted brake system. The body includes two fluid chambers and dual-side outlet choices, while the operating pushrod is selected separately. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. Its disc brake design and manufacturing range includes valves, master cylinders, calipers, brake lines, rotors and fittings for street-performance, specialized and motorsport use. These parts are selected together so the completed braking system has the required hydraulic and mechanical arrangement.
Technical Details
- Manufacturer part number: 260-8556-BK
- Material: Aluminum
- Cylinder bore: 1-1/8"
- Pressure circuits: 2
- Stroke Length: 1.10 in
- Reservoir Type: Integral
- Fluid capacity: 8.0 / 4.8 oz
- Flange-to-end length: 8.15"
- Overall Length: 8.76"
- Mounting centers: 3.22–3.40"
- Finish: Black E-coat
- Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
- Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
- Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
- Service: Factory rebuild only; do not disassemble the tandem piston assembly
Fitment & Compatibility
This size is primarily for power brakes; confirm the vacuum or hydraulic assist arrangement instead of choosing by mounting pattern alone. Provide clearance for the reservoir lid and allow the full 1.10-inch piston stroke without linkage preload.
Manufacturer Documents
- Wilwood product specifications
- Wilwood DS487 instructions and specifications
- Wilwood FL162 instructions and specifications
PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
