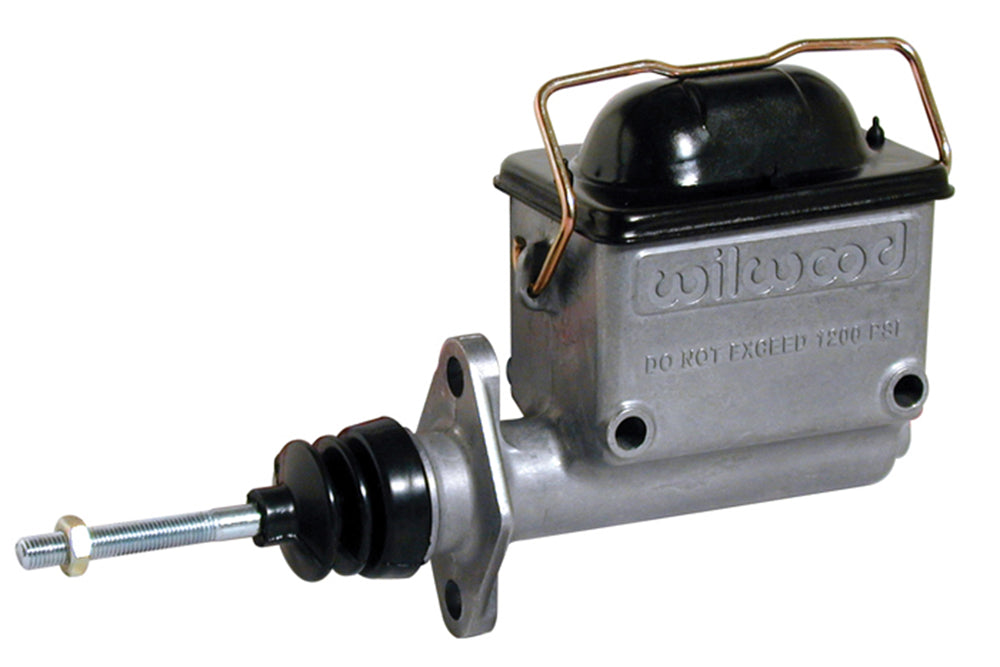

Wilwood High Volume Single Brake Master Cylinder, 3/4-inch Bore and 8.2 oz Reservoir

The 3/4-inch High Volume master supplies one hydraulic circuit from an integral 8.2 oz reservoir. Its aluminum body, removable steel lid and bellows seal suit a serviceable racing brake installation with a matched pedal assembly. Disc brake systems and components are the focus of Wilwood Engineering's design and manufacturing work for street-performance, specialized and motorsport applications. Bill Wood founded the Camarillo, California company in 1977. Its master cylinders, calipers, fittings, valves, brake lines and rotors are chosen according to the needs of the complete brake system.

Technical Details

• Manufacturer part number: 260-6764
• Material: Aluminum / Steel
• Cylinder bore: 3/4"
• Pressure circuits: 1
• Stroke Length: 1.43 in
• Listed displacement per stroke: 0.62 cu in
• Reservoir Type: Integral
• Fluid capacity: 8.2 oz
• Flange-to-end length: 4.87"
• Overall Length: 9.15"
• Mounting centers: 2.25"
• Pushrod dimensions: 4.28" x 5/16-24
• Finish: Bare
• Reservoir: Integral 8.2 oz with steel lid and bellows
• Pressure outlet: 1/8-27 NPT; separate pipe-to-flare adapter required
• Mounting: 2.25-inch flange or 3.00-inch side centers

Fitment & Compatibility

Check required fluid displacement, pedal ratio and the 2.25-inch flange or 3.00-inch side mounting arrangement. The 1/8-27 NPT outlet requires a separately supplied pipe-to-flare adapter; allow full piston return and bench bleed before installation.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS412 instructions and specifications
• Wilwood FL94 instructions and specifications
• Wilwood FL162 instructions and specifications
