Product details

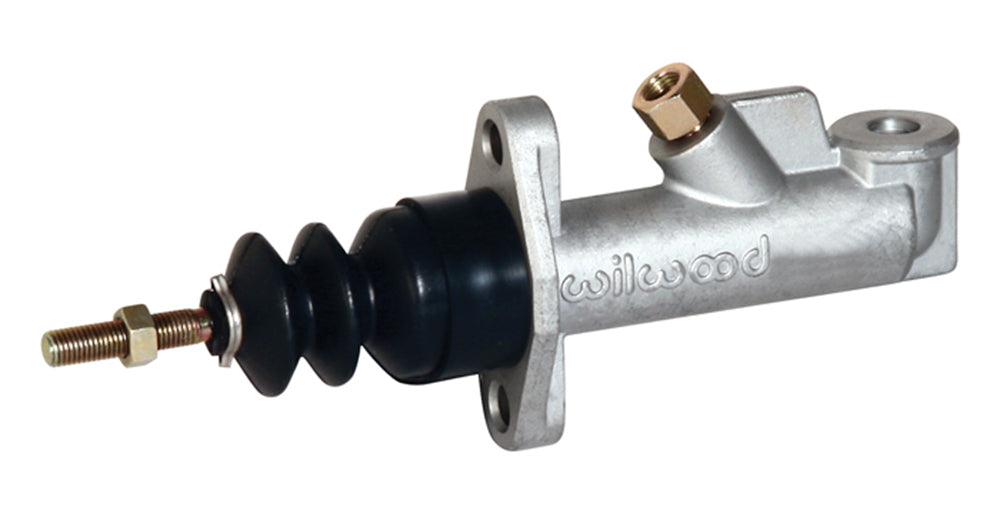

This three-quarter-inch Compact Remote master provides the specified 0.61-cubic-inch displacement across a 1.40-inch stroke. The bare cylinder receives fluid from a separate container, leaving reservoir size and location to be selected for the custom brake or clutch arrangement. Wilwood Engineering serves motorsport, specialized and street-performance applications through disc brake system design and manufacturing. Bill Wood founded the company in 1977, and it is based in Camarillo, California. The range spans valves, rotors, fittings, calipers, brake lines and master cylinders; the installed braking assembly determines the appropriate combination of parts.
Technical Details
- Manufacturer part number: 260-6089
- Material: Aluminum
- Cylinder bore: 3/4"
- Pressure circuits: 1
- Stroke Length: 1.40 in
- Listed displacement per stroke: 0.61 cu in
- Reservoir Type: Remote
- Flange-to-end length: 4.10"
- Overall Length: 7.97"
- Mounting centers: 2.25"
- Pushrod dimensions: 3.87" x 5/16-24
- Finish: Bare
- Reservoir: Separate remote reservoir required
- Feed inlet: 7/16-20
- Pressure outlet: 3/8-24 inverted flare
- Fluid inlet: 7/16-20 in
- Outlet connection: 3/8-24 IF Female
Fitment & Compatibility
Verify the 3.87-inch threaded rod, 2.25-inch flange centers and full available pedal movement. Use a compatible 7/16-20 feed adapter and the correct 3/8-24 inverted-flare pressure connection. Reservoir components are separate, and the bore must agree with the connected caliper or clutch slave's volume demand.
Manufacturer Documents
- Wilwood product specifications
- Wilwood FL95 instructions and specifications
- Wilwood FL162 instructions and specifications
PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
