Product details

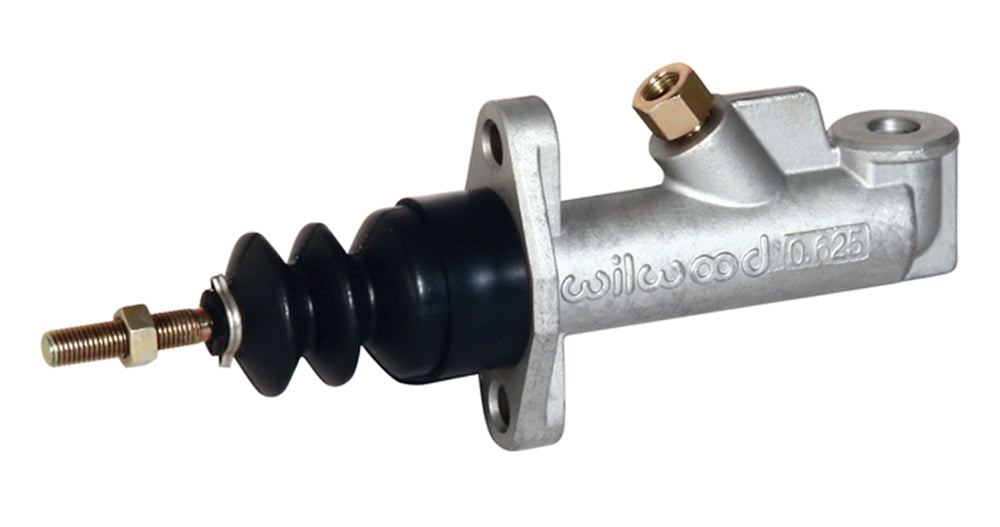

This compact aluminum master uses a five-eighths-inch bore and remote fluid supply for space-limited brake or clutch installations. Its 1.40-inch stroke distinguishes it from the later shorter-stroke Compact Combination kits despite the similar family wording. Wilwood Engineering's disc brake systems bring together calipers, rotors, valves, master cylinders, fittings and brake lines. Founded by Bill Wood in 1977 and based in Camarillo, California, the company designs and manufactures products for motorsport, street-performance and specialized applications. The installed system determines which individual component is appropriate.
Technical Details
- Manufacturer part number: 260-6087
- Material: Aluminum
- Cylinder bore: 5/8"
- Pressure circuits: 1
- Stroke Length: 1.40 in
- Listed displacement per stroke: 0.43 cu in
- Reservoir Type: Remote
- Flange-to-end length: 4.10"
- Overall Length: 7.97"
- Mounting centers: 2.25"
- Pushrod dimensions: 3.87" x 5/16-24
- Finish: Bare
- Reservoir: Separate remote reservoir required
- Feed inlet: 7/16-20
- Pressure outlet: 3/8-24 inverted flare
- Fluid inlet: 7/16-20 in
- Outlet connection: 3/8-24 IF Female
Fitment & Compatibility
Provide a compatible reservoir and a suitable 7/16-20 inlet connection separately. Match the 2.25-inch mounting centers, 5/16-24 rod and 3/8-24 female inverted-flare pressure outlet. Wilwood identifies club-sport, small open-wheel and custom hydraulic uses, with final suitability determined by the complete circuit.
Manufacturer Documents
- Wilwood product specifications
- Wilwood FL95 instructions and specifications
- Wilwood FL162 instructions and specifications
The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
