Wilwood Rebuild Kit for the 7/8-inch Pull-Type Clutch Slave Cylinder

This rebuild kit renews the sealing and service components of Wilwood's pull-type clutch slave. O-ring seals, the spring assembly, inlet fitting and bleed screw are supplied for the specified slave rather than a brake master cylinder. Wilwood Engineering designs and manufactures disc brake systems in Camarillo, California. Bill Wood founded the company in 1977; its range now encompasses calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Each component must suit the hydraulic and mechanical requirements of the complete system.

Technical Details

• Manufacturer part number: 260-5524
• Component: Cylinder rebuild/service kit; replacement housing not included
• Service bore: 7/8 inch (0.875 inch)
• Matching slave: Pull-type clutch slave 260-1333

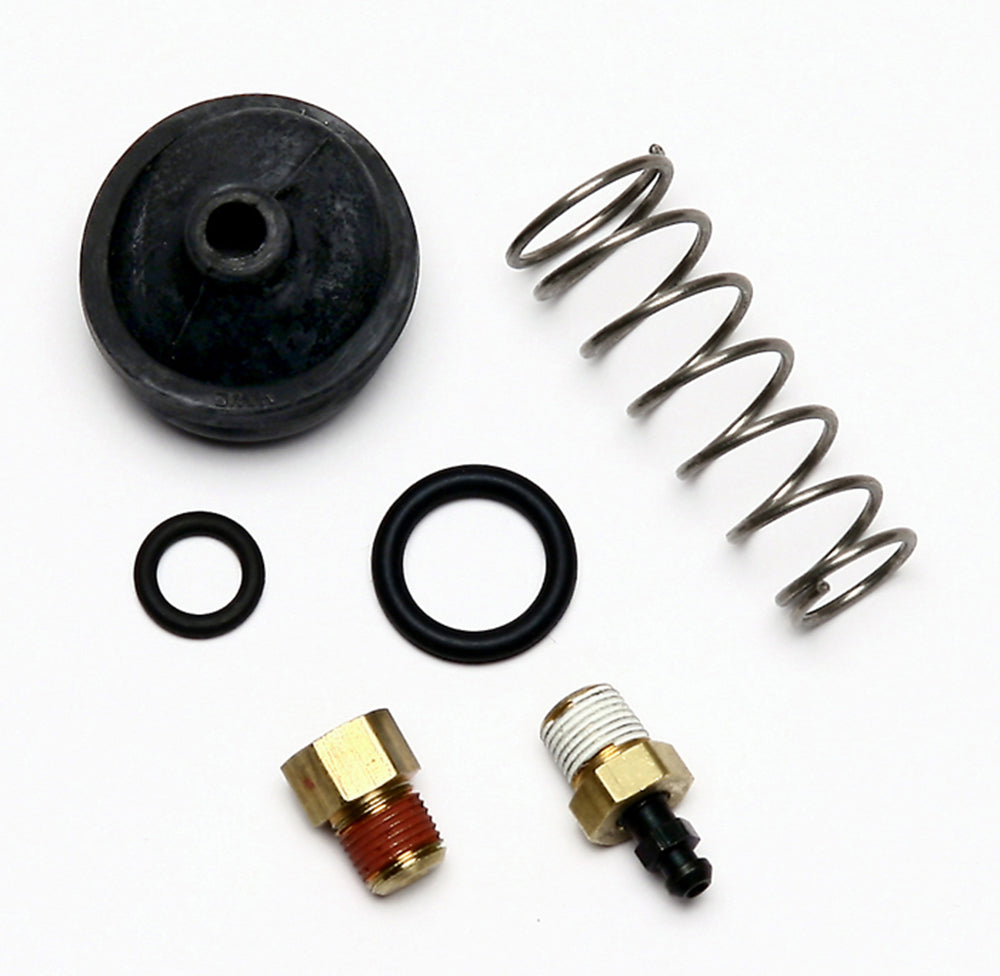

• Contents: O-rings, spring, inlet fitting and bleeder screw

Fitment & Compatibility

Use with slave cylinder 260-1333, whose bore is seven-eighths inch. Inspect the rod, housing and mounting alignment before repair, and retain the slave's maximum travel and fluid requirements. A replacement clutch master, linkage bracket and complete slave assembly are not included.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications

PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
