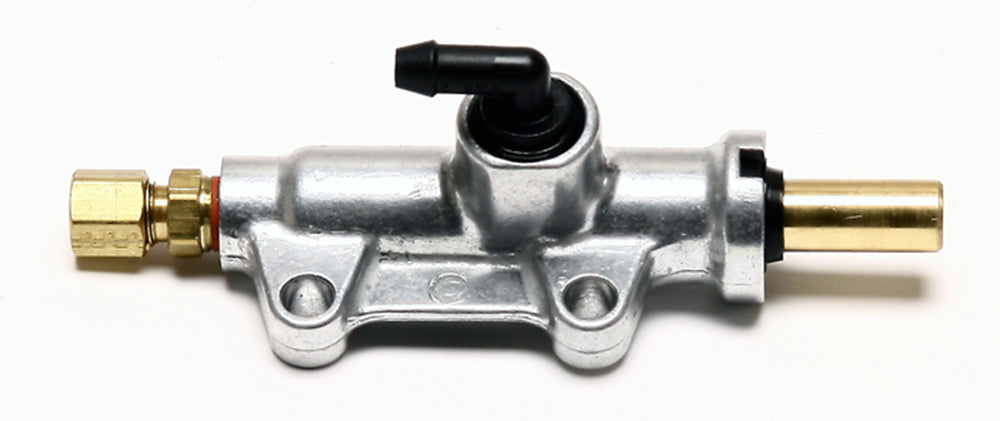

Wilwood Half-Inch Kart Master Cylinder Replacement, Without Mounting Bracket

This replacement cylinder services an existing Wilwood Kart master assembly without supplying a new mounting bracket. The bare aluminum body uses a half-inch bore and a short 0.70-inch stroke for the specified compact racing hydraulic arrangement. For motorsport, street-performance and specialized applications, Wilwood Engineering designs and manufactures disc brake systems and their components. The Camarillo, California company was founded by Bill Wood in 1977. Its range of rotors, calipers, valves, fittings, brake lines and master cylinders supports assemblies whose individual parts must be selected to work together.

Technical Details

• Manufacturer part number: 260-5516
• Material: Aluminum
• Cylinder bore: 1/2"
• Pressure circuits: 1
• Stroke Length: 0.70 in
• Listed displacement per stroke: 0.12 cu in
• Reservoir Type: Remote
• Overall Length: 3.86"
• Finish: Bare
• Package: Half-inch kart replacement master cylinder only; original bracket assembly reused
• Feed: 1/4-inch reservoir hose
• Pressure outlet: 1/8 NPT with specified 3/16-inch compression fitting

Fitment & Compatibility

Match the original Wilwood bracket and linkage before ordering. The fluid feed accepts quarter-inch hose, and the pressure side uses a native 1/8-27 NPT port with the specified 3/16-inch compression connection. Verify the complete Kart or Jr. Dragster system and do not treat the replacement cylinder as a road-car master.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications

The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
