Wilwood Chrysler-Style Tandem Master Rebuild Kit for 1-1/16-inch Bore

Primary and secondary piston assemblies service the two circuits in the specified Chrysler-style tandem master. The kit includes the sealing assemblies, dust boot, retaining ring and pushrod retainer while reusing the original actuator rod. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. Its disc brake design and manufacturing range includes valves, master cylinders, calipers, brake lines, rotors and fittings for street-performance, specialized and motorsport use. These parts are selected together so the completed braking system has the required hydraulic and mechanical arrangement.

Technical Details

• Manufacturer part number: 260-4896
• Component: Cylinder rebuild/service kit; replacement housing not included
• Service bore: 1-1/16"
• Matching units: Chrysler-style tandem masters 260-4893 and 260-4894, 1-1/16-inch bore

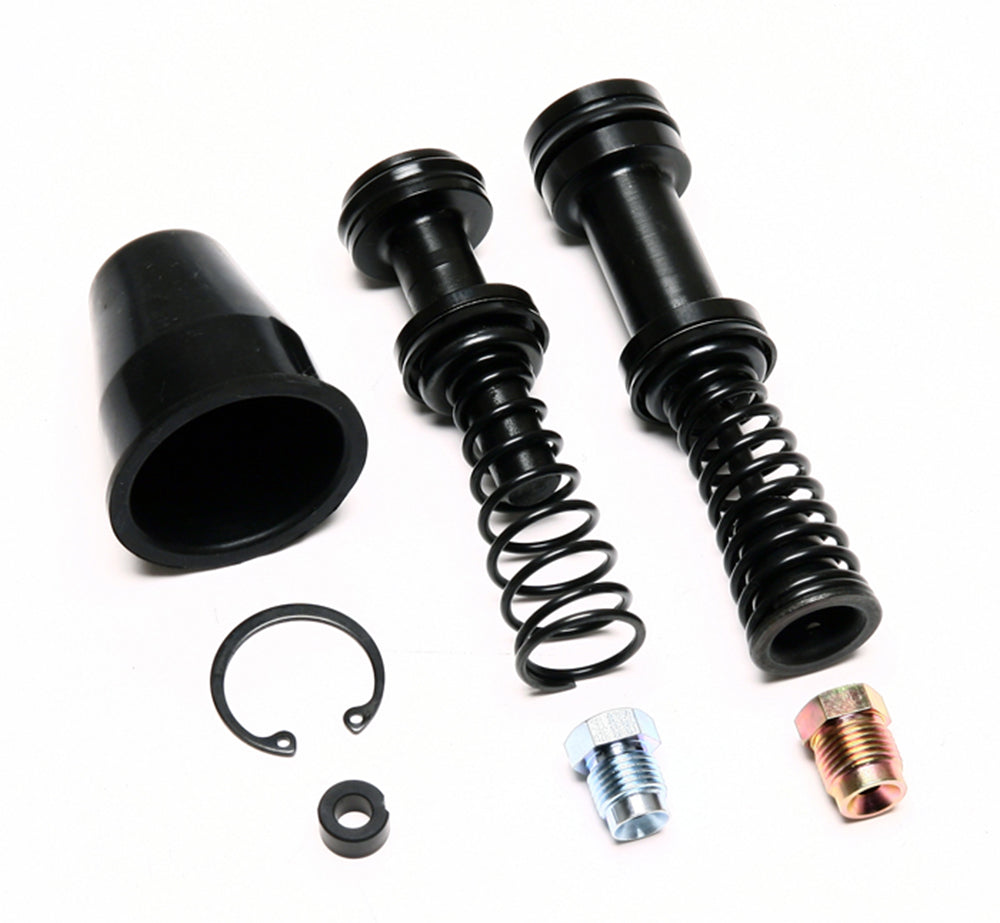

• Supplied: Two piston/seal assemblies, springs, retaining parts and boot; reuse the existing pushrod

Fitment & Compatibility

Wilwood identifies masters 260-4893 and 260-4894 with the nominal one-and-one-sixteenth-inch bore. Follow DS-225 for assembly and keep the bypass ports uncovered when the pedal is released. This kit does not fit the earlier one-and-one-thirty-second-inch tandem family merely because the components look similar.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS225 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
