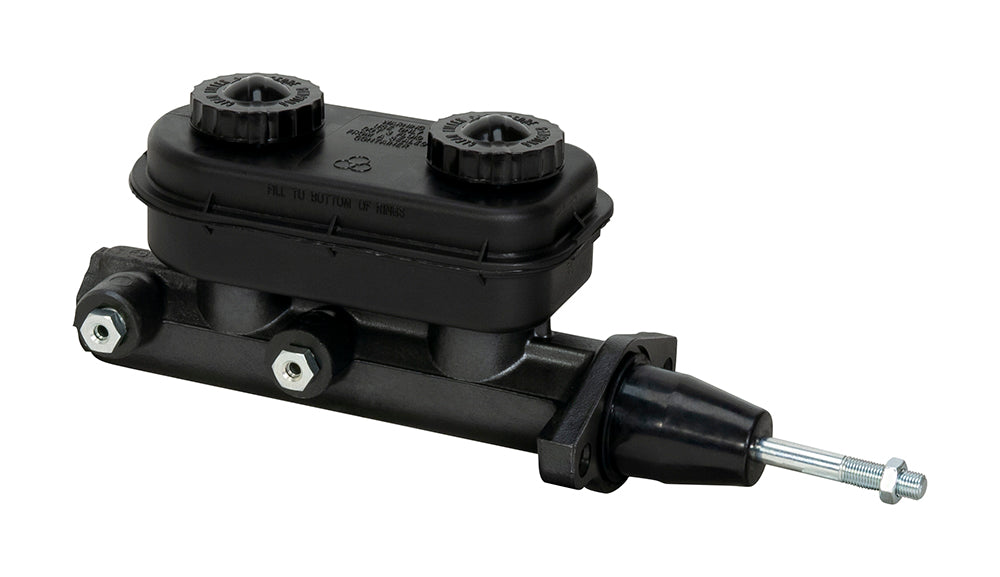

Wilwood 1-1/16-inch Chrysler-Style Tandem Master Kit with Pushrod, Retainer and Boot

The pushrod, retainer and dust boot are included with this Chrysler-style tandem master package. Its aluminum body and plastic reservoir provide the same one-and-one-sixteenth-inch hydraulic bore as the master-only version, with added manual-actuation hardware. Wilwood Engineering designs disc brake systems and manufactures a range of calipers, master cylinders, valves, fittings, rotors and brake lines. Founded in 1977 by Bill Wood, the Camarillo, California company serves specialized, street-performance and motorsport applications. Component selection requires understanding the brake assembly as a whole, including its hydraulic sizing and mechanical interfaces.

Technical Details

• Manufacturer part number: 260-4894
• Material: Aluminum / Plastic
• Cylinder bore: 1-1/16"
• Pressure circuits: 2
• Stroke Length: 1.35 in
• Reservoir Type: Integral
• Flange-to-end length: 8.14"
• Overall Length: 12.42 inches shown in DS260 with pushrod fitted; verify the actual installation envelope
• Mounting centers: 3.20"
• Finish: Anodize
• Pressure ports: Primary 1/2-20 inverted flare; secondary 9/16-20 inverted flare, with supplied tube nuts for 3/16-inch double-flared hard line
• Internal travel: 1.35 inches total: 0.90 primary plus 0.45 secondary
• Pushrod package: Pushrod, retainer and dust boot included; mounting adapter separate

Fitment & Compatibility

Confirm mounting and pedal alignment before fitting; a racing-pedal adapter is a separate component where required. Keep all 1.35 inches of piston travel available and avoid side loading the pushrod. Use the correct 1/2-20 and 9/16-20 inverted-flare outlets with double-flared brake lines and the supplied tube nuts.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS260 instructions and specifications
• Wilwood FL162 instructions and specifications
