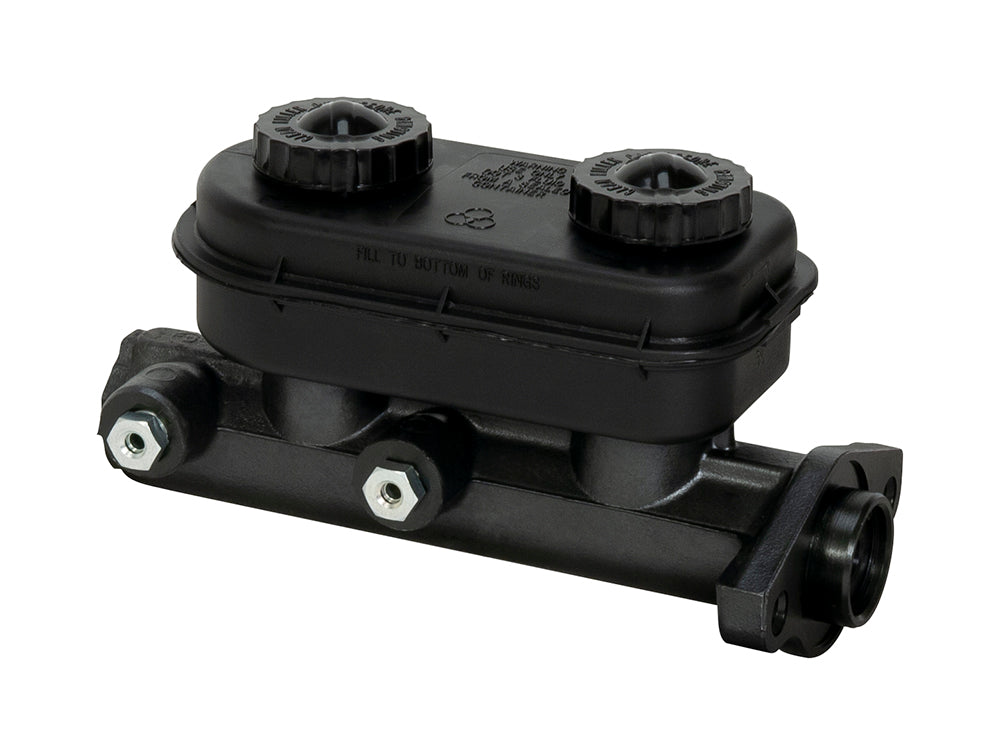

Wilwood Chrysler-Style Tandem Master Cylinder, 1-1/16-inch Bore, Without Pushrod Kit

This Chrysler-style master supplies the tandem hydraulic cylinder and large plastic reservoir without the separate pushrod installation package. Its one-and-one-sixteenth-inch bore and two pressure outlets serve a properly designed drag, stock-car, street-rod or off-road brake system. Established in 1977 by Bill Wood, Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Calipers, fittings, rotors, valves, master cylinders and brake lines serve its motorsport, street-performance and specialized applications. The full assembly, including its mating connections and operating requirements, governs the correct part selection.

Technical Details

• Manufacturer part number: 260-4893
• Material: Aluminum / Plastic
• Cylinder bore: 1-1/16"
• Pressure circuits: 2
• Stroke Length: 1.35 in
• Reservoir Type: Integral
• Flange-to-end length: 8.14"
• Overall Length: 12.42 inches shown in DS260 with pushrod fitted; verify the actual installation envelope
• Mounting centers: 3.20"
• Finish: Anodize
• Pressure ports: Primary 1/2-20 inverted flare; secondary 9/16-20 inverted flare, with supplied tube nuts for 3/16-inch double-flared hard line
• Internal travel: 1.35 inches total: 0.90 primary plus 0.45 secondary
• Pushrod package: Separate

Fitment & Compatibility

Verify the 3.20-inch mounting pattern and provide the correct actuator or optional pedal adapter. The primary outlet is 1/2-20 inverted flare and the secondary is 9/16-20 inverted flare, with suitable tube nuts for 3/16-inch double-flared line. Allow the full 1.35-inch travel and match the larger-volume circuit as instructed.
