Wilwood 7/8-inch Combination Remote Master Cylinder Rebuild Kit with Spring and Boot

The seven-eighths-inch bore version of this rebuild package renews the matching Combination Remote master's piston and seals. Its spring, boot, retaining ring and O-rings support service of the original cylinder rather than changing its displacement or mounting layout. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, Wilwood designs and manufactures disc brake systems and a component range covering master cylinders, rotors, calipers, fittings, valves and brake lines. Across its motorsport, specialized and street-performance applications, the correct choice depends on the complete brake system rather than one dimension alone.

Technical Details

• Manufacturer part number: 260-3882
• Component: Cylinder rebuild/service kit; replacement housing not included
• Service bore: 7/8"

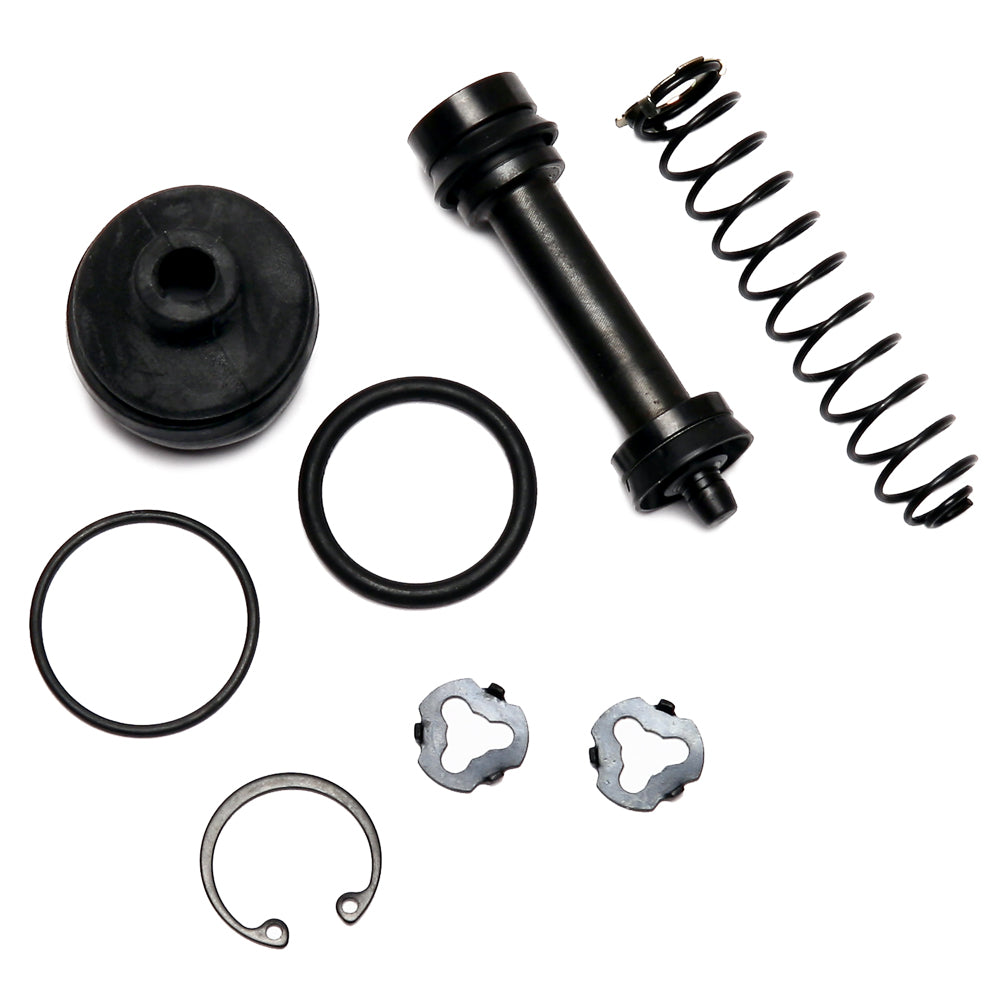

• Kit contents: Piston/seals, spring, thin cup washer, retaining ring, boot and two O-rings
• Reused components: Existing pushrod and retaining washer item 3 are not included and must be reused

Fitment & Compatibility

Confirm the installed master is the specified 260-3376 configuration. DS-241 calls for reuse of the existing pushrod and retaining washer; verify their condition and assembly position. Finish the repair with the prescribed bleeding and function checks before returning the hydraulic system to use.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS241 instructions and specifications
• Wilwood FL162 instructions and specifications

For help choosing the correct service or conversion component, contact PMB Performance with the existing brake-system details. Our team has over 20 years of experience working through parts and fitment requirements.
