Wilwood Combination Master Cylinder Repair Set for a 5/8-inch Bore, Reuses Existing Pushrod

This five-eighths-inch repair kit services the internal piston and sealing components of the matching Combination Remote master. A spring, dust boot, retaining ring and reservoir-interface seals support the rebuild without replacing the cylinder body. Wilwood Engineering, the Camarillo, California disc brake manufacturer founded by Bill Wood in 1977, designs and builds systems for specialized, motorsport and street-performance applications. The product range covers brake lines, valves, fittings, calipers, master cylinders and rotors. A replacement component must preserve the intended relationship between the system's hydraulic and mechanical parts.

Technical Details

• Manufacturer part number: 260-3880
• Component: Cylinder rebuild/service kit; replacement housing not included
• Service bore: 5/8"

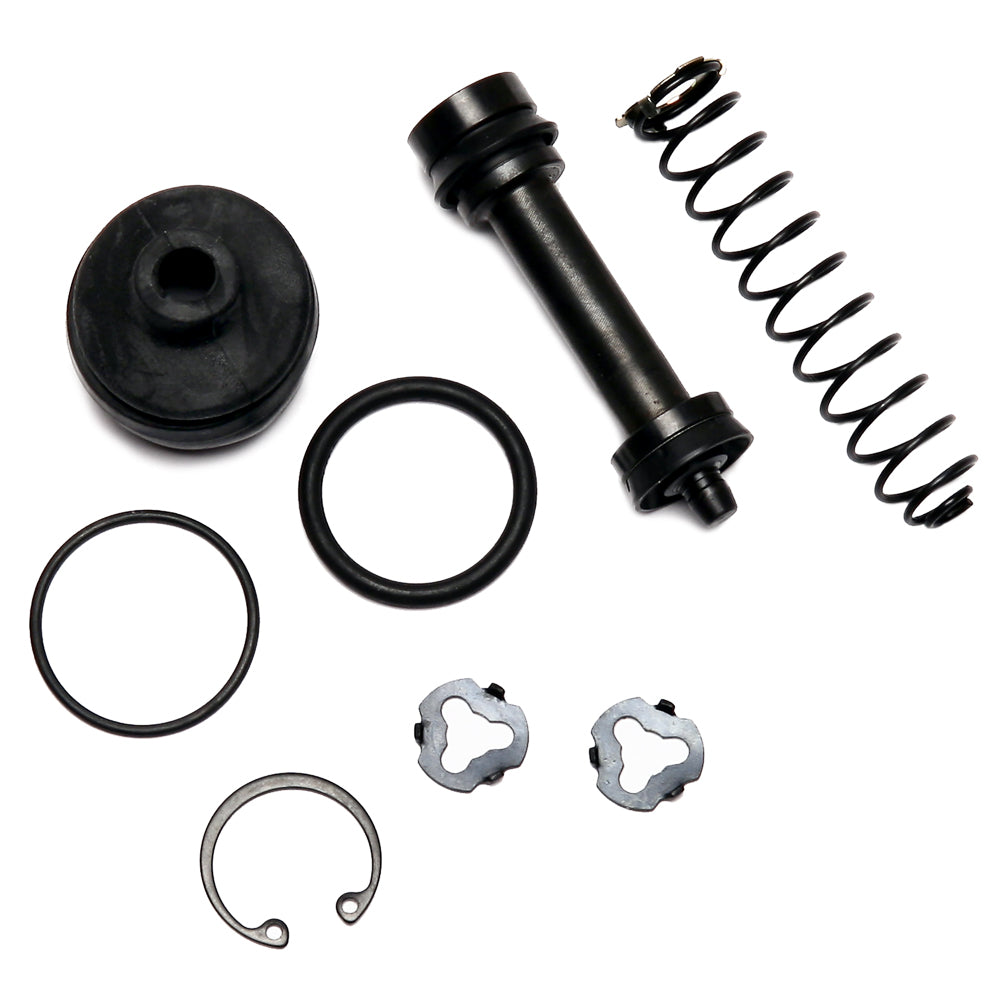

• Kit contents: Piston/seals, spring, thin cup washer, retaining ring, boot and two O-rings
• Reused components: Existing pushrod and retaining washer item 3 are not included and must be reused

Fitment & Compatibility

Match master 260-3372 and its five-eighths-inch bore. The installation sheet reuses the existing pushrod and retaining washer, so inspect those parts before dismantling the assembly. Follow the bore-specific rebuild and bleeding instructions, and do not substitute this kit for a shorter Compact Remote family solely because the bore matches.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS241 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
