Product details
This depth-transfer tool compares the master-cylinder piston recess with the brake booster's pushrod. An adjustable steel pin in an aluminum body and magnetic mounting points help establish the needed gap before the hydraulic components are assembled. Wilwood Engineering's disc brake systems bring together calipers, rotors, valves, master cylinders, fittings and brake lines. Founded by Bill Wood in 1977 and based in Camarillo, California, the company designs and manufactures products for motorsport, street-performance and specialized applications. The installed system determines which individual component is appropriate.
Technical Details
- Manufacturer part number: 260-18027
- Material: Aluminium / Steel
- Finish: Plated

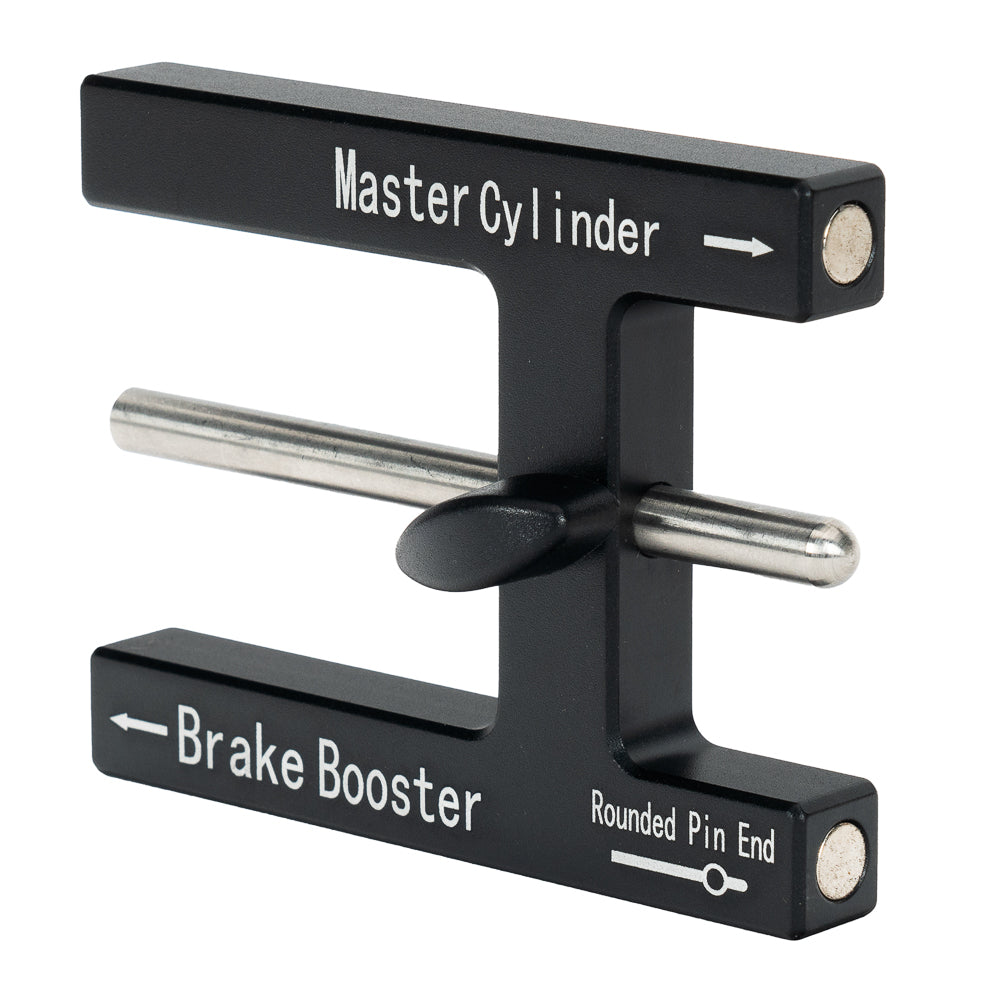

- Component: Brake booster/master pushrod depth gauge
- Construction: Aluminum body, steel magnetic measuring pin
- Clearance check: DS1601 specifies 0.010–0.030 inch gap, measured with a separate feeler gauge
Fitment & Compatibility

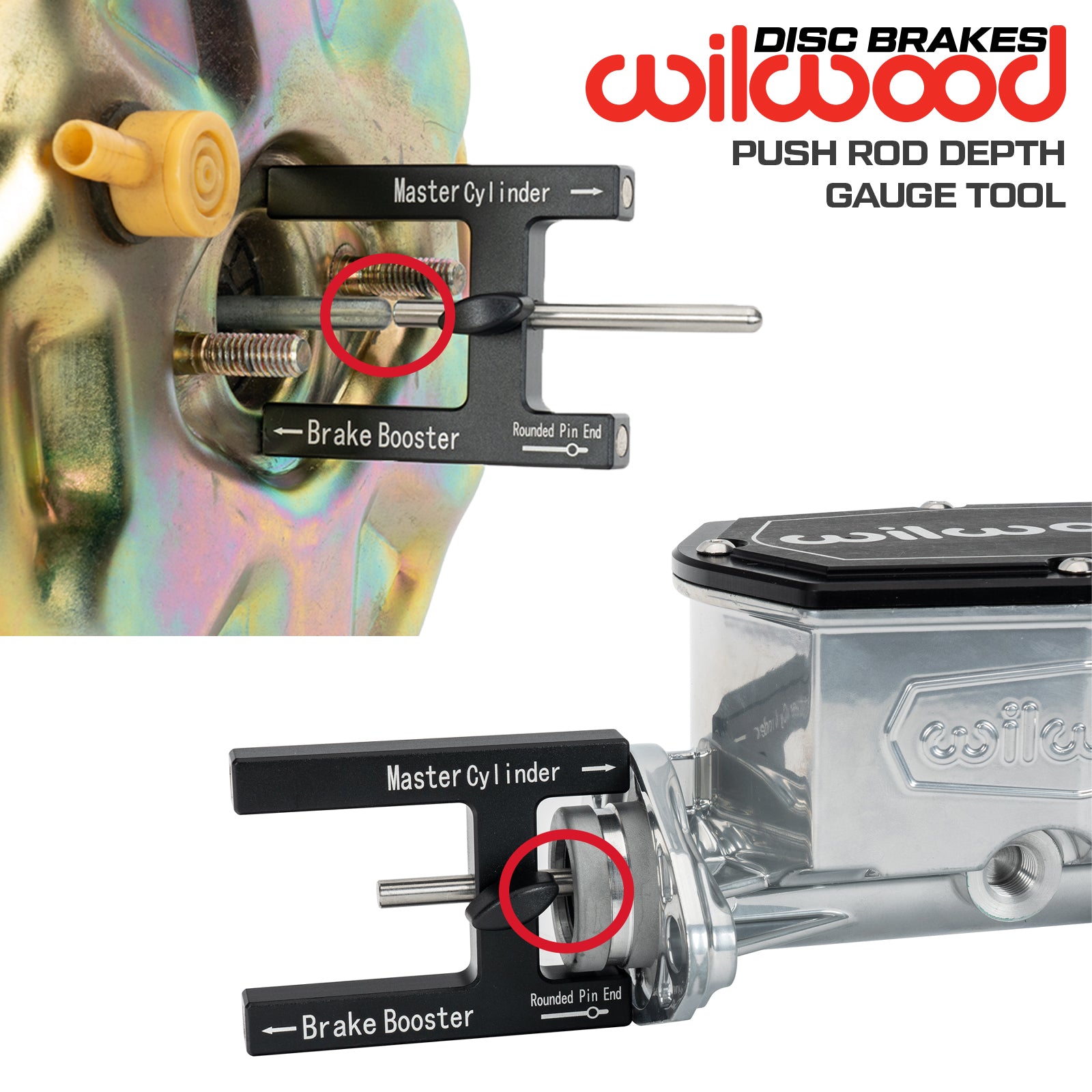

Use the labeled master-cylinder and booster faces as described in Wilwood's instructions, with the pin's rounded end against the master piston or spacer. Check the recommended 0.010–0.030-inch gap using a separate feeler gauge. The tool measures the interface; it is not a pushrod, spacer or hydraulic component.
Manufacturer Documents
- Wilwood product specifications
- Wilwood DS1601 instructions and specifications
- Wilwood FL162 instructions and specifications
The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
