Wilwood Mopar Compact Master Right-Hand Valve, Bracket and Formed-Line Package

A right-side bracket and purpose-shaped tubes distinguish this Mopar valve package from the left-side version. It includes the adjustable combination valve and mounting hardware for the specified four-bolt Compact Tandem master, which remains a separate item. From calipers and rotors to master cylinders, valves, brake lines and fittings, Wilwood Engineering's range covers disc brake systems and service components. Bill Wood founded the company in 1977; it is based in Camarillo, California and designs and manufactures for street-performance, specialized and motorsport applications. All component choices need to account for the complete system.

Technical Details

• Manufacturer part number: 260-17800
• Material: Aluminum / Steel
• Primary Outlet Thread Size: 3/8-24 IF
• Finish: Clear Anodize / Black E-coat

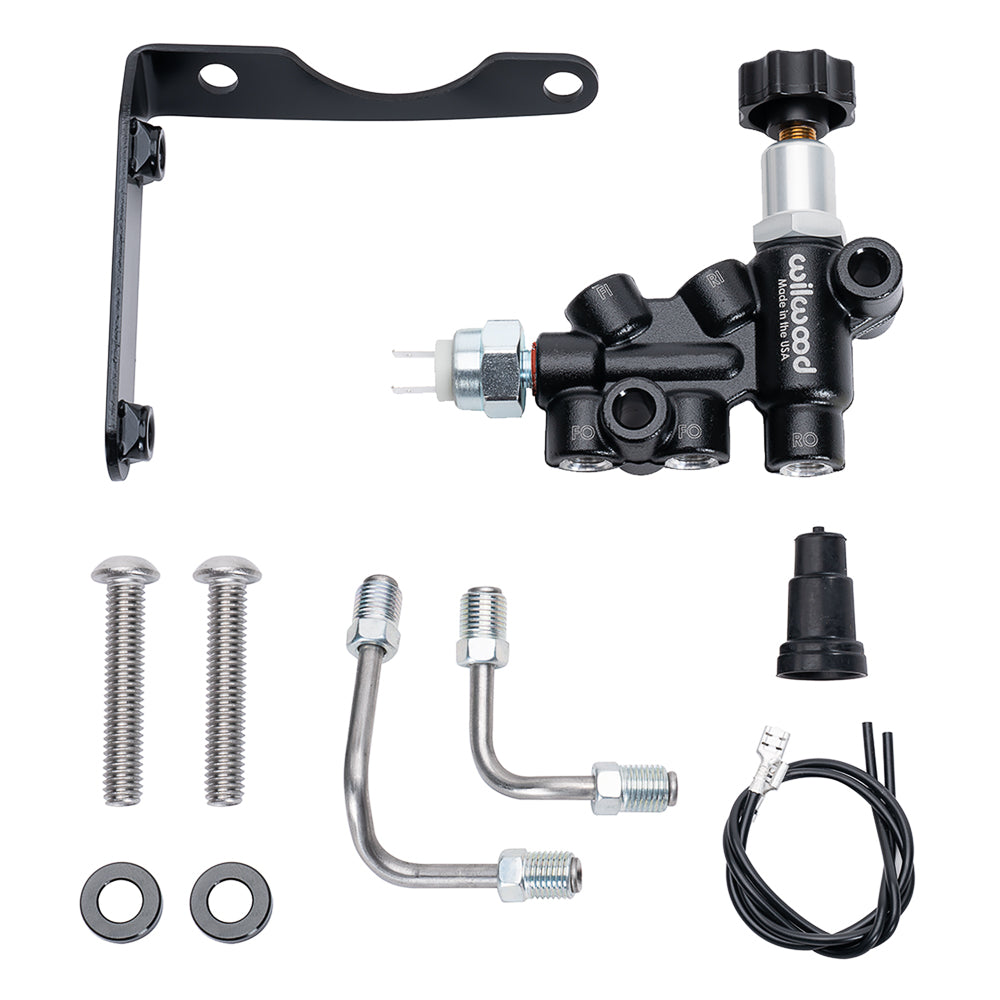

• Kit contents: Combination proportioning valve, mounting bracket, formed stainless lines and fastening hardware; master cylinder is not included
• Bracket side: Right
• Valve functions: Adjustable rear pressure, hydraulic brake-light switch and isolated front/rear circuits
• Fluid inlet: 3/8-24 IF
• Outlet connection: 3/8-24 IF

Fitment & Compatibility

Verify the exact Mopar master and available space to the right of its reservoir and flange. Connect the labeled primary, secondary, front and rear circuits as instructed instead of following the original master's port positions. Suitable manual or boosted applications depend on the master and actuator selected.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1520 instructions and specifications
• Wilwood FL524 instructions and specifications
• Wilwood FL162 instructions and specifications
