Wilwood Left-Side Combination Valve Kit for Mopar Four-Bolt Compact Tandem Masters

The left-hand bracket places the included combination valve beside a compatible Mopar four-bolt Compact Tandem master. Formed stainless tubes, fasteners and mounting parts join the pressure-control assembly to the separately purchased cylinder. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and builds disc brake systems for motorsport, street-performance and specialized applications, with a range extending through calipers, rotors, valves, brake lines, fittings and master cylinders. Individual parts must be compatible with the system in which they operate.

Technical Details

• Manufacturer part number: 260-17117
• Material: Aluminum / Steel
• Primary Outlet Thread Size: 3/8-24 IF
• Finish: Clear Anodize / Black E-coat

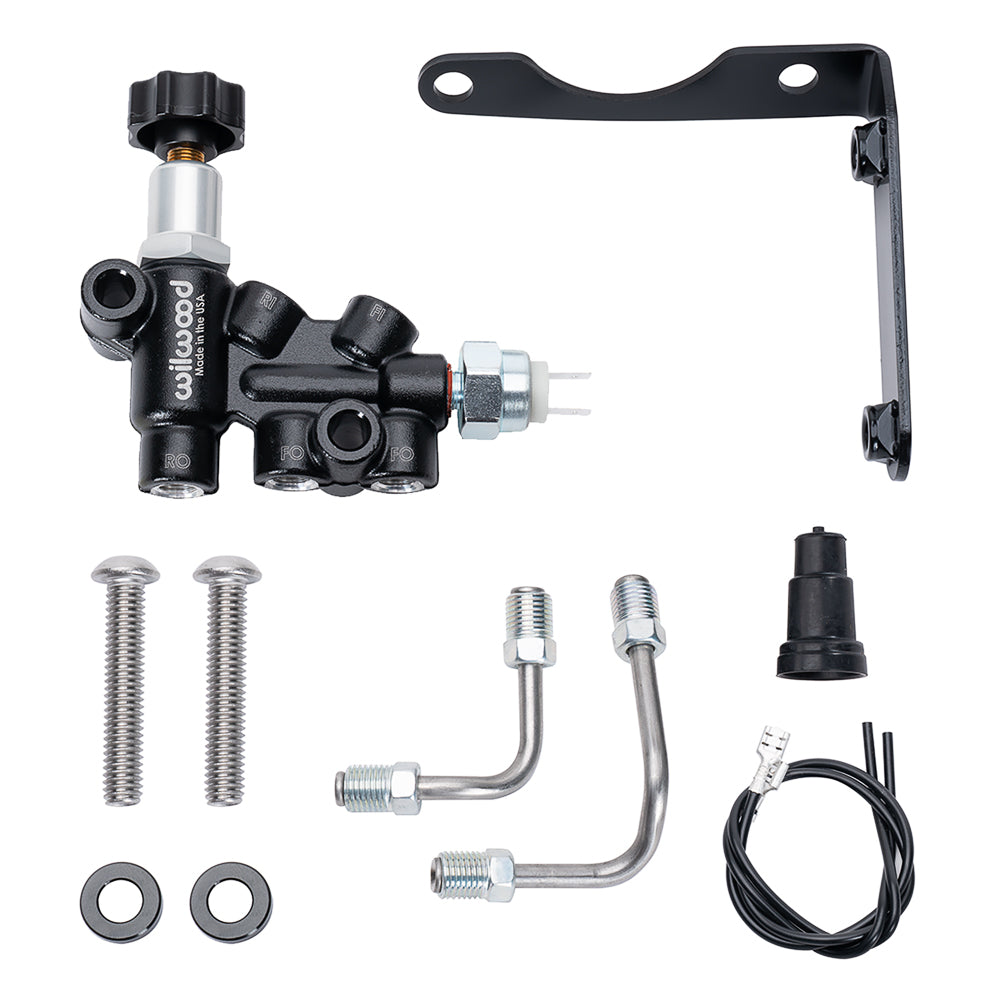

• Kit contents: Combination proportioning valve, mounting bracket, formed stainless lines and fastening hardware; master cylinder is not included
• Bracket side: Left
• Valve functions: Adjustable rear pressure, hydraulic brake-light switch and isolated front/rear circuits
• Fluid inlet: 3/8-24 IF
• Outlet connection: 3/8-24 IF

Fitment & Compatibility

Match the specified Mopar master family and verify clearance on its left side. Route the front and rear lines using the marked valve and master ports, taking account of the master's reversed original-equipment outlet positions. This is a valve-and-mounting package, not a complete master-cylinder kit.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1520 instructions and specifications
• Wilwood FL524 instructions and specifications
• Wilwood FL162 instructions and specifications

With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
