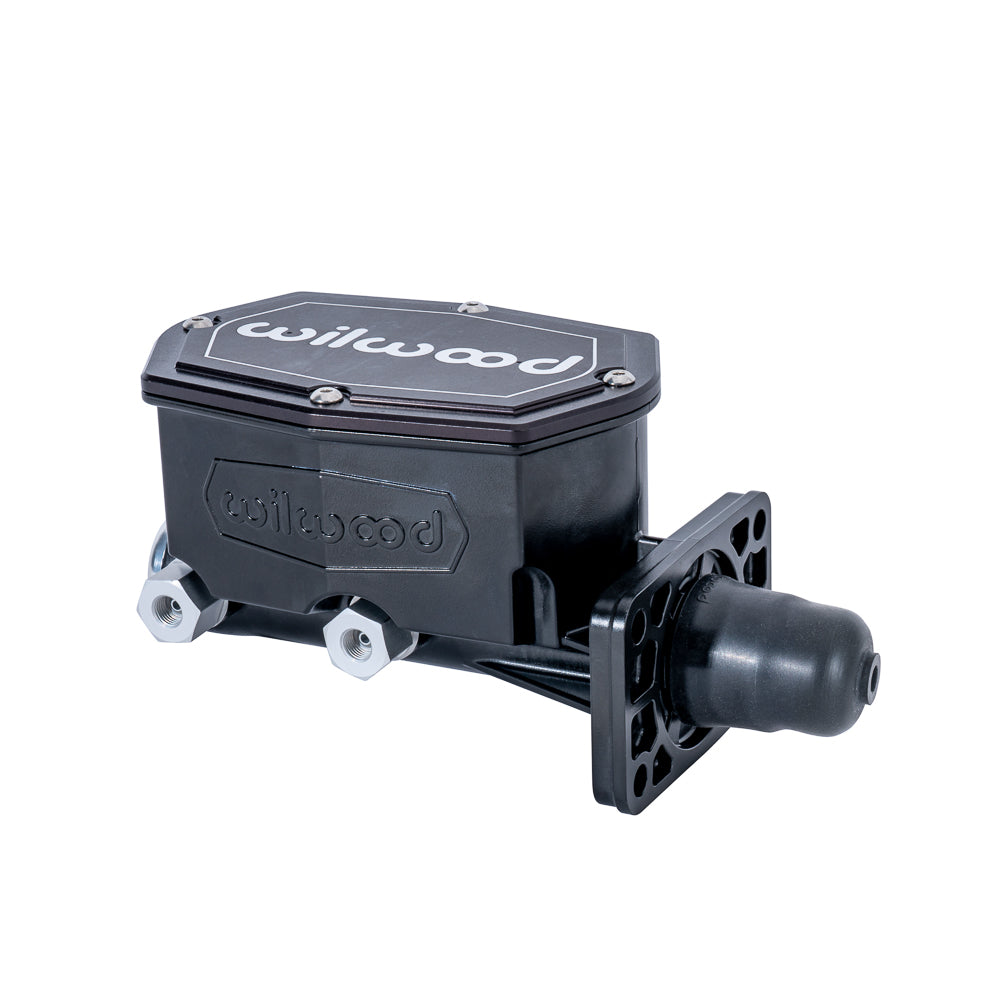

Wilwood One-Inch Mopar Four-Bolt Compact Master, Black, Without Pushrod

A one-inch bore and rodless actuator interface define this black Mopar Compact Tandem master. Its four-bolt flange targets the specified A-, B- and E-body mounting pattern, while both reservoir chambers remain integral to the housing. The broader Wilwood Engineering range includes calipers, brake lines, rotors, valves, fittings and master cylinders for disc brake systems. Established by Bill Wood in 1977 and based in Camarillo, California, Wilwood designs and manufactures for motorsport, street-performance and specialized applications. Correct component selection considers the complete system's geometry and hydraulic requirements.

Technical Details

• Manufacturer part number: 260-16792-BK
• Material: Aluminum
• Cylinder bore: 1.00"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral
• Fluid capacity: 7.8 / 4.7 oz
• Overall Length: 7.16"
• Mounting centers: 3.25 × 1.76"
• Finish: Black E-coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-20 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly
• Flange-to-end references: Exact product page: 6.55 inches; DS-1520 dimensional drawing: 6.70 inches. Confirm the available installation envelope.
• Circuit routing: Primary outlet A feeds the axle with greater total effective caliper piston area, normally the front; secondary B feeds the lesser-area axle, normally the rear. Outlet locations are reversed from the original Mopar master cylinder; follow DS-1520.
• Linkage: Pushrod not included; match the existing or separately supplied actuation interface

Fitment & Compatibility

Provide a compatible pedal or booster actuator and verify its engagement in the piston recess without preload. Confirm the 3.25-by-1.76-inch mounting pattern and route front and rear circuits according to the instructions: the outlet positions are reversed from the original Mopar master. A separate valve package is not included.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1520 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance offers over 20 years of parts and brake-fitment experience. For a compatibility check, provide the existing assembly and the dimensions that govern the replacement.
