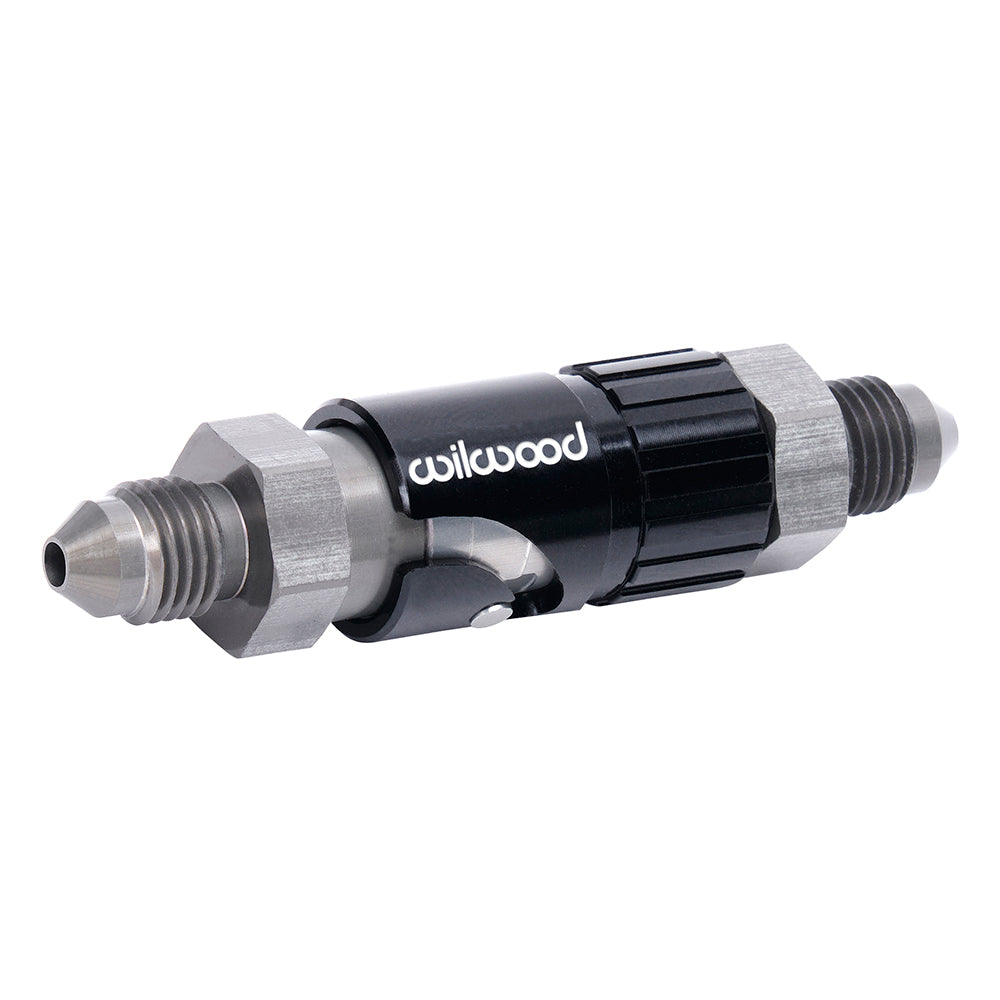

Wilwood Dry-Break Quick-Disconnect Pair with -3 AN Male Connections on Both Ends

The complete dry-break kit supplies both mating coupling halves for a hydraulic brake-fluid line. Male -3 AN threaded ends connect to the surrounding plumbing, while the central quarter-turn coupling separates without tools and seals both sides. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, Wilwood designs and manufactures disc brake systems and a component range covering master cylinders, rotors, calipers, fittings, valves and brake lines. Across its motorsport, specialized and street-performance applications, the correct choice depends on the complete brake system rather than one dimension alone.

Technical Details

• Manufacturer part number: 260-16771
• Material: Aluminum
• Primary Outlet Thread Size: -3 AN Male
• Finish: Type III Ano / Black Ano
• Component: Dry-break quick-disconnect coupling pair
• Line ends: -3 AN male thread at each supplied coupling half
• Connection: Quarter-turn dry-break for brake-fluid pressure lines
• Fluid inlet: -3 AN Male

Fitment & Compatibility

Use with appropriate brake-fluid lines and configure spare components with their correct couplings before bleeding them. This package supplies the disconnect pair, not flexlines or a complete brake circuit. Confirm the mechanical lock and test the system after reconnection before returning the vehicle to use.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL548 instructions and specifications
• Wilwood FL162 instructions and specifications

For help choosing the correct service or conversion component, contact PMB Performance with the existing brake-system details. Our team has over 20 years of experience working through parts and fitment requirements.
