Product details

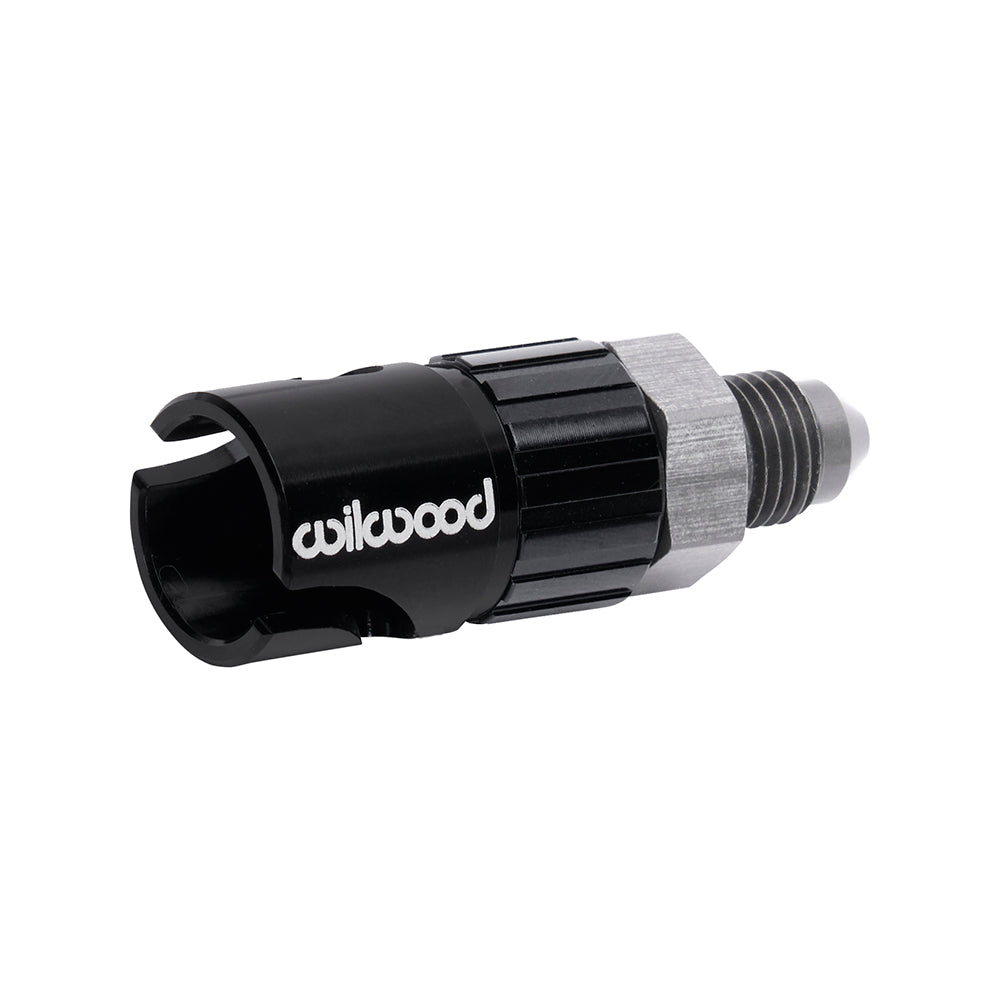

This female quick-disconnect half provides the receiving socket for a matching Wilwood dry-break connector. The hose-side fitting remains -3 AN male, so coupling gender must not be confused with the gender of the threaded brake-line connection. A disc brake manufacturer based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures calipers, rotors, brake lines, fittings, valves and master cylinders for street-performance, motorsport and specialized systems. The chosen service part must agree with the complete system's connections, dimensions and operating demands.
Technical Details
- Manufacturer part number: 260-16770
- Material: Aluminum
- Primary Outlet Thread Size: -3 AN Male
- Finish: Type III Ano / Black Ano
- Component: Dry-break quick-disconnect female coupling half
- Line ends: -3 AN male thread at each supplied coupling half
- Connection: Quarter-turn dry-break for brake-fluid pressure lines
Fitment & Compatibility
Purchase the matching male coupling separately if a complete connection is needed. Install the correct ends on the vehicle and pre-bled spare components, and confirm the quarter-turn lock is fully engaged after reconnection. The internal seal limits fluid loss and air entry during the specified service operation.
Manufacturer Documents
- Wilwood product specifications
- Wilwood FL548 instructions and specifications
- Wilwood FL162 instructions and specifications
With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
