Product details

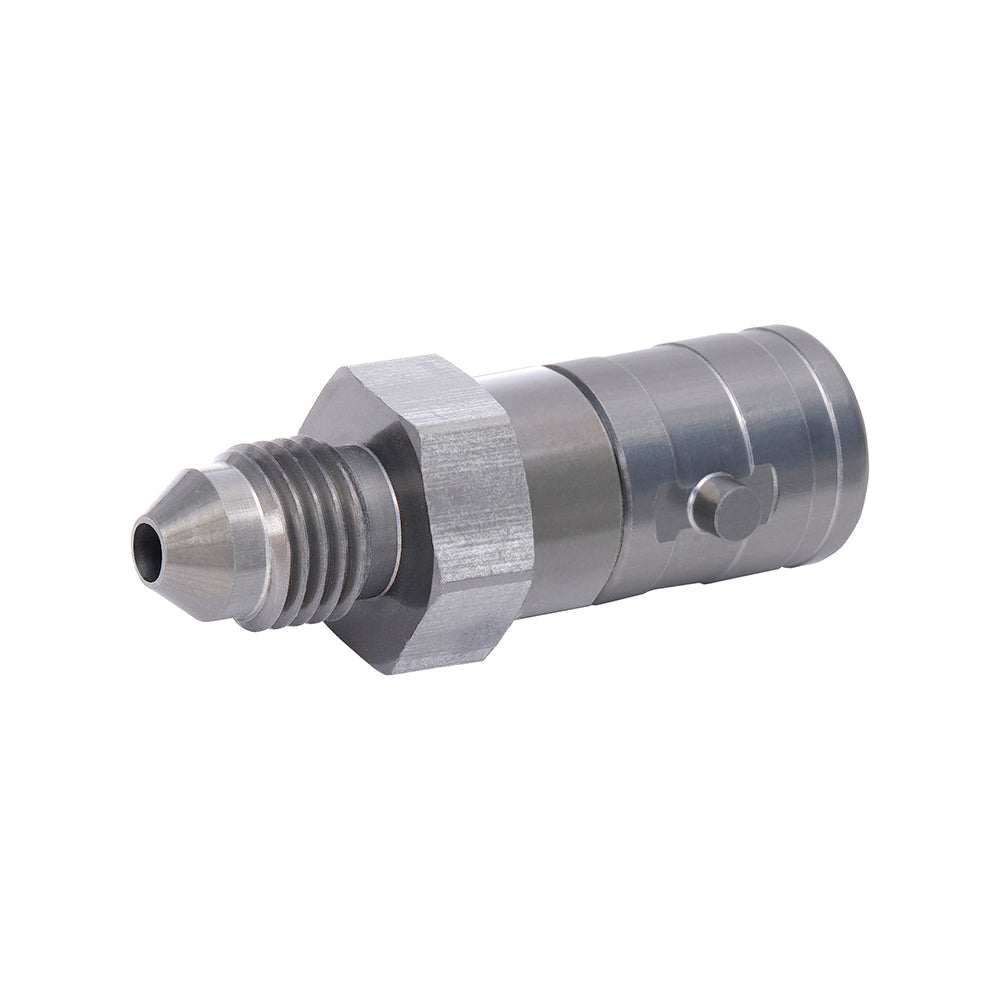

The male half of Wilwood's dry-break coupling ends in a -3 AN male line fitting. Its spring-loaded seal closes when separated from the matching socket, allowing a pre-bled brake-fluid component to be exchanged without opening an ordinary threaded union. Wilwood Engineering, the Camarillo, California disc brake manufacturer founded by Bill Wood in 1977, designs and builds systems for specialized, motorsport and street-performance applications. The product range covers brake lines, valves, fittings, calipers, master cylinders and rotors. A replacement component must preserve the intended relationship between the system's hydraulic and mechanical parts.
Technical Details
- Manufacturer part number: 260-16769
- Material: Aluminum
- Primary Outlet Thread Size: -3 AN Male
- Finish: Type III Ano
- Component: Dry-break quick-disconnect male coupling half
- Line ends: -3 AN male thread at each supplied coupling half
- Connection: Quarter-turn dry-break for brake-fluid pressure lines
Fitment & Compatibility
This item supplies one male coupling half, not the mating female half or a complete pair. Use the matching Wilwood coupling and properly prepared, pre-bled components. Verify secure quarter-turn engagement and system integrity after reconnection; the fitting is intended for hydraulic brake-fluid service.
Manufacturer Documents
- Wilwood product specifications
- Wilwood FL548 instructions and specifications
- Wilwood FL162 instructions and specifications
PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
