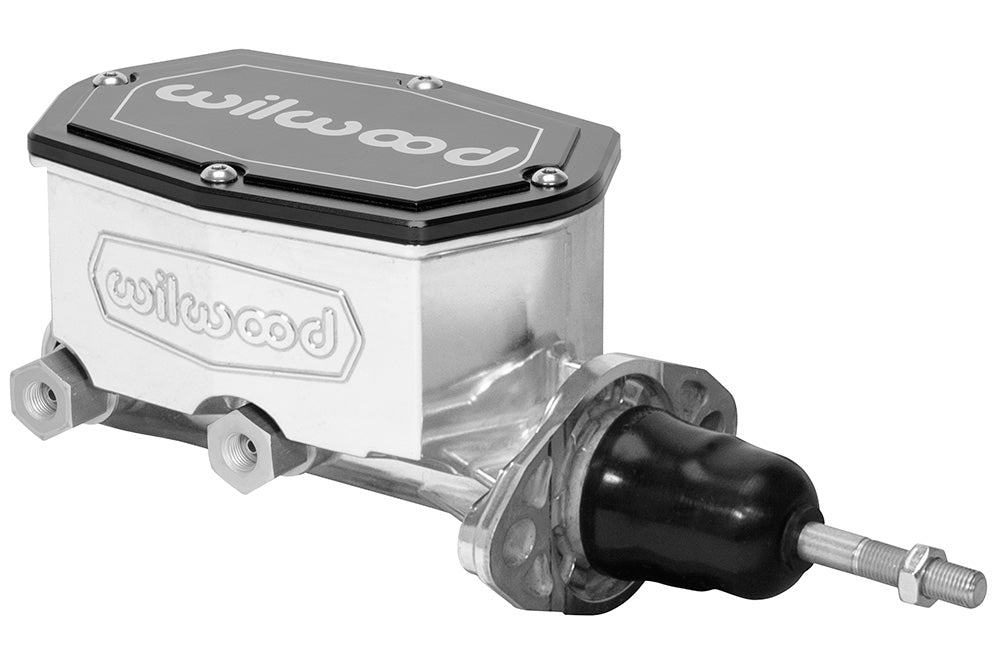

Wilwood Chrome Powder Corvette C2 Tandem Master, 1963–1967, 7/8-inch Bore with Pushrod

Chrome powder coating finishes this C2-specific seven-eighths-inch tandem master. It combines a shorter Corvette pushrod with an integral reservoir, supporting a dual-circuit conversion without using the generic long-rod Compact Tandem configuration. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded the company in 1977. Its fittings, valves, calipers, brake lines, master cylinders and rotors are used across motorsport, street-performance and specialized applications. Matching a component means checking both its own specification and the braking assembly around it.

Technical Details

• Manufacturer part number: 260-16520-P
• Material: Aluminum
• Cylinder bore: 7/8"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
• Fluid capacity: 7.8 / 4.7 oz
• Flange-to-end length: 6.55"
• Mounting centers: 3.22–3.40"
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly
• C2 linkage dimensions: Exact page lists 2.73-inch rod and 9.28-inch overall; DS-1287 shows 2.90 inches from flange to rod tip. Confirm the actual assembly and pedal engagement.
• Valve clearance: Optional bracket kit 260-14248 does not fit the C2 installation space; mount the valve separately

Fitment & Compatibility

Match the actual 1963–1967 Chevrolet Corvette C2 brake system: early drum cars require a properly plumbed tandem conversion, and the disc-brake reference is for non-power 1965–1967 cars. Wilwood brake-kit installations require their own bore check. Do not use optional valve bracket kit 260-14248; C2 clearance prevents its installation.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1287 instructions and specifications
• Wilwood FL162 instructions and specifications
• Wilwood FL467 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
