Wilwood Type III Anodized Four-Ounce Remote Reservoir with Fins and -3 AN Feed

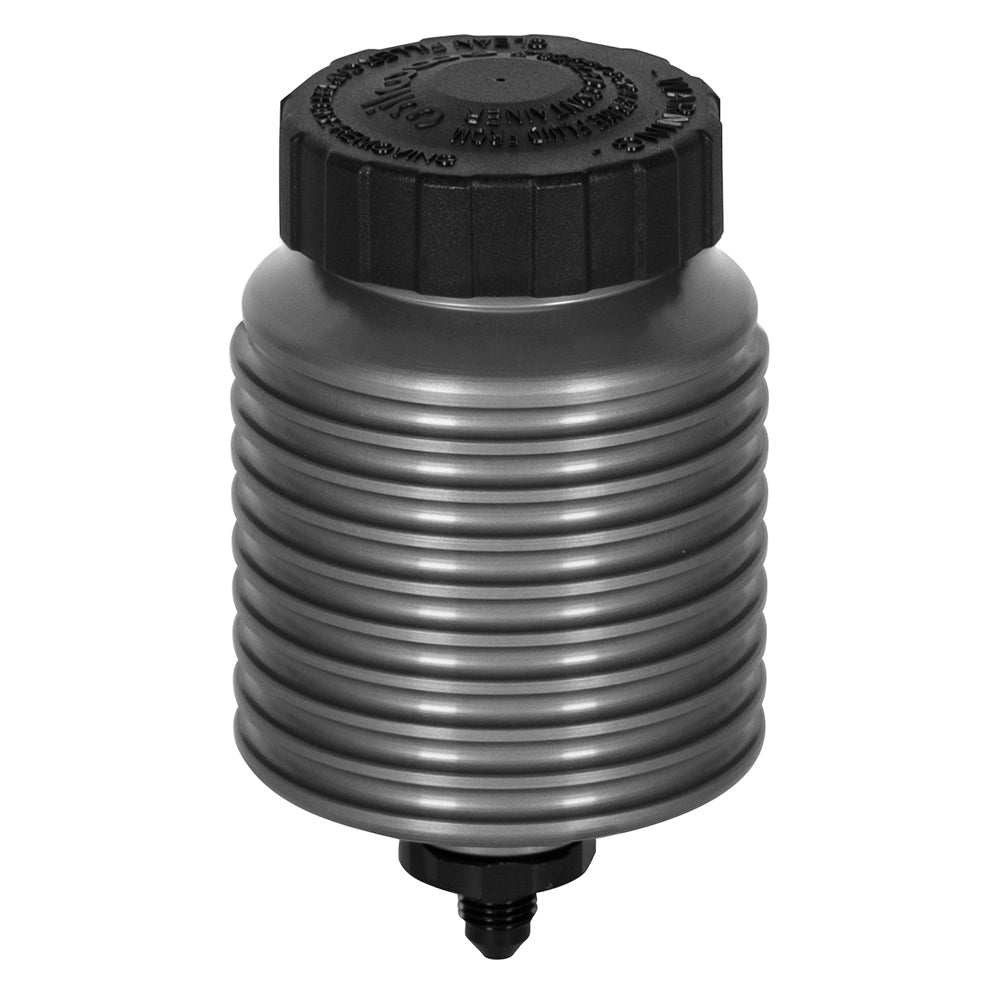

This remote reservoir combines a gray hard-anodized finned body with a black nylon cap and internal bellows seal. Its four-ounce capacity feeds a suitably matched master through the supplied -3 AN adapter rather than mounting directly on the cylinder. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and builds disc brake systems, with calipers, master cylinders, rotors, brake lines, fittings and valves serving street-performance, motorsport and specialized applications. Selecting an individual part requires checking how it works with the rest of the braking assembly.

Technical Details

• Manufacturer part number: 260-16392
• Material: Aluminum
• Finish: Type III Ano
• Component: Lightweight finned billet aluminum fluid reservoir
• Capacity: 4 oz
• Native reservoir outlet: 9/16-18
• Supplied adapter: -3 AN remote-feed adapter
• Cap: Black nylon
• Outside diameter: 2.45 inches
• Mounting: Separate bracket and remote feed hose required
• Reservoir height: 4.38 inches, remote configuration

Fitment & Compatibility

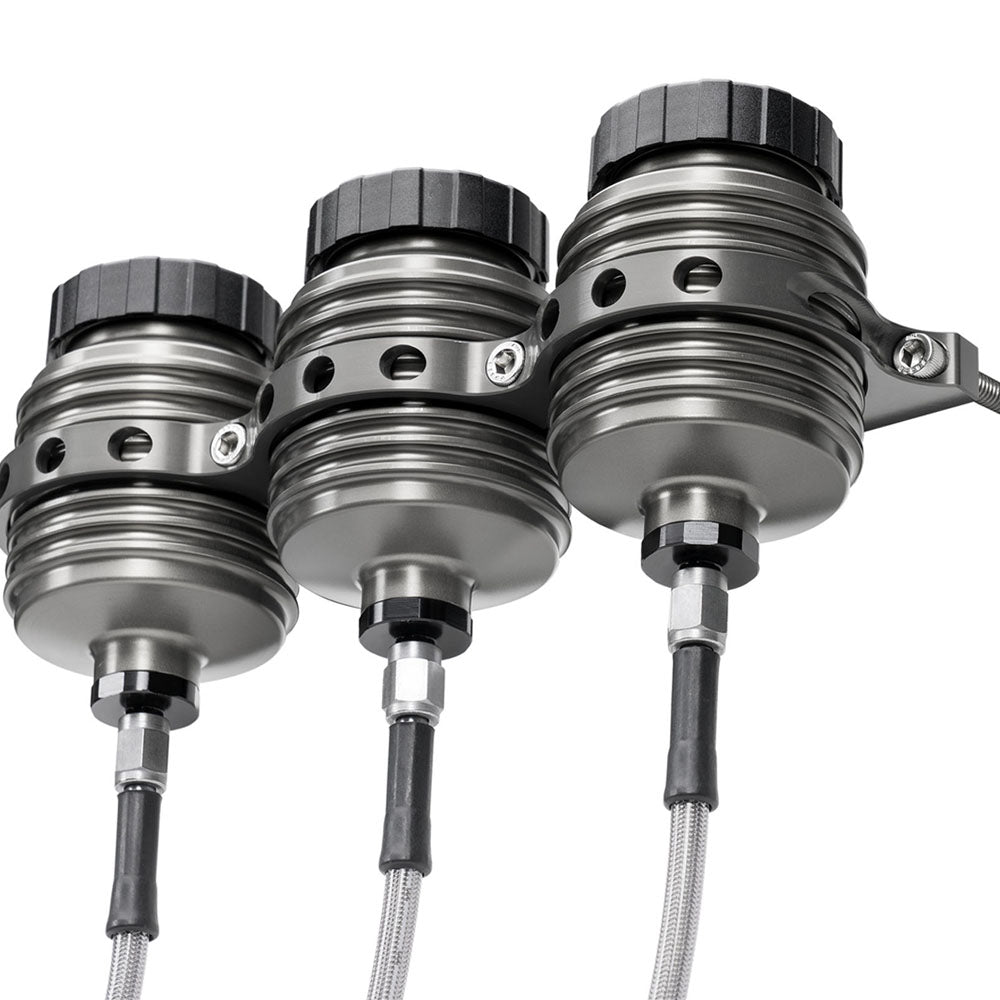

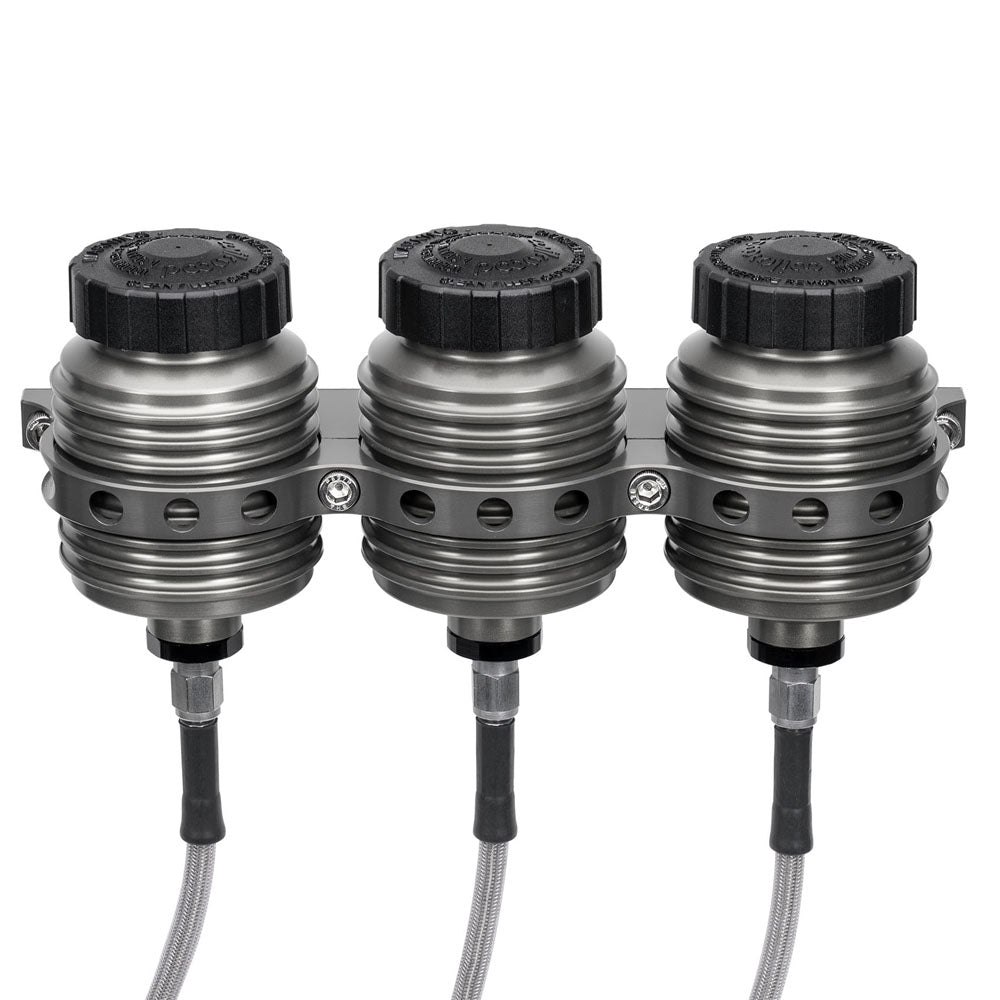

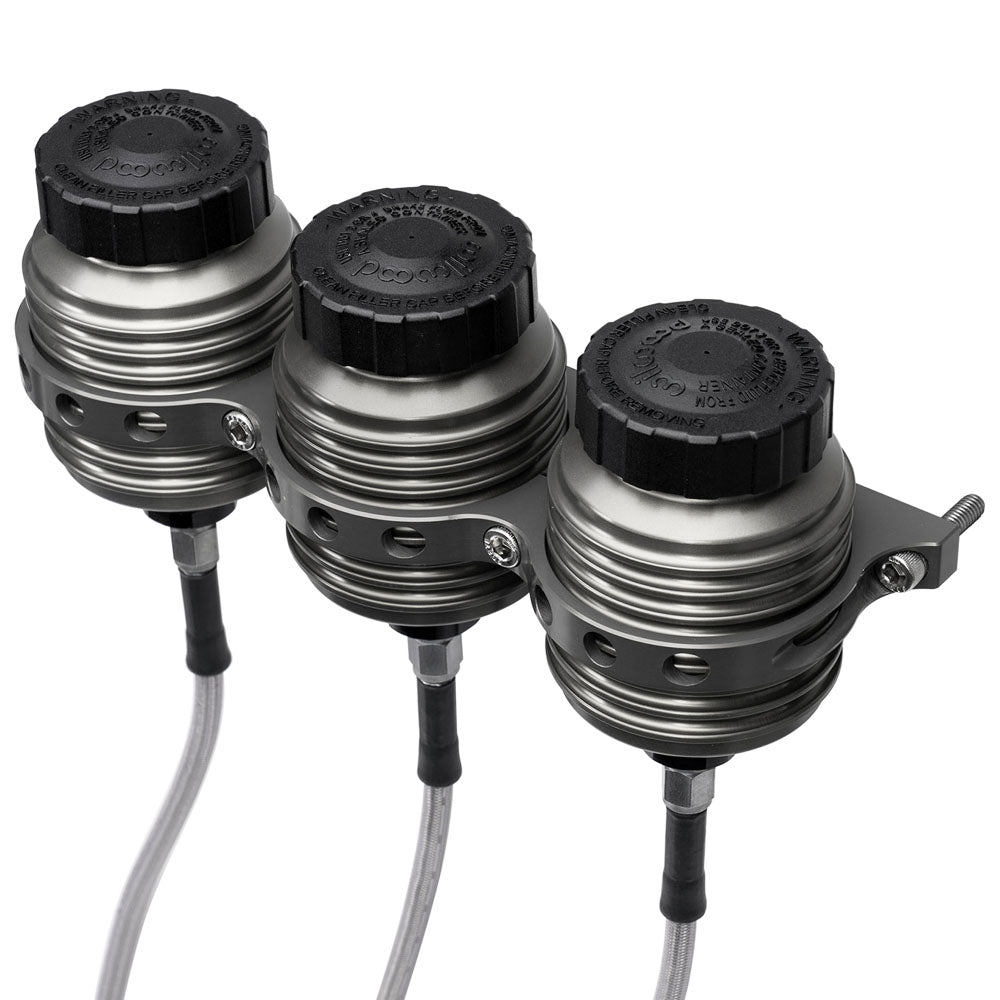

Choose the remote bracket, flexline and master-end adapter separately. The multi-reservoir installation photograph illustrates additional reservoirs and mounting parts, not the contents of this single-reservoir package. Verify sufficient capacity, an unobstructed feed path and access to the cap at the chosen location.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1448 instructions and specifications
• Wilwood FL162 instructions and specifications

With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
