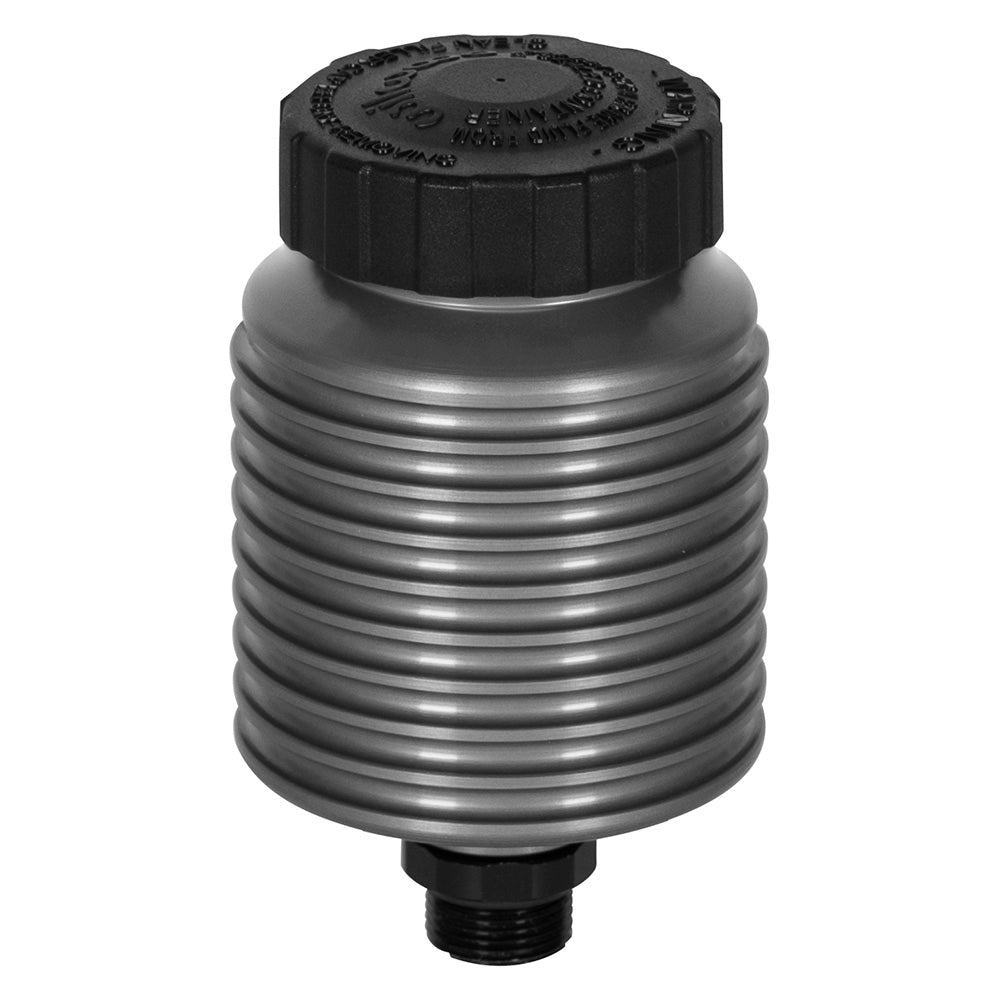

Wilwood Anodized Finned Reservoir for Direct Mounting, 4 Ounces, with Nylon Cap

Type III hard anodizing and a black nylon cap distinguish this lightweight reservoir from the bright aluminum-cap version. The finned four-ounce body mounts directly to the specified master through a threaded adapter and seals the fluid opening with an internal bellows. Wilwood Engineering serves motorsport, specialized and street-performance applications through disc brake system design and manufacturing. Bill Wood founded the company in 1977, and it is based in Camarillo, California. The range spans valves, rotors, fittings, calipers, brake lines and master cylinders; the installed braking assembly determines the appropriate combination of parts.

Technical Details

• Manufacturer part number: 260-16391
• Material: Aluminum
• Finish: Type III Ano
• Component: Lightweight finned billet aluminum fluid reservoir
• Capacity: 4 oz
• Native reservoir outlet: 9/16-18
• Supplied adapter: 11/16-20 direct-master adapter
• Cap: Black nylon
• Outside diameter: 2.45 inches
• Mounting: Direct attachment to specified Compact Remote master
• Reservoir height: 4.27 inches, direct configuration

Fitment & Compatibility

Match the Compact Remote master's 11/16-20 reservoir support to the included direct-mount adapter. The reservoir body itself has a 9/16-18 bottom thread; this package is not the remote -3 AN version. Confirm fluid reserve and cap-removal clearance for the installed brake or clutch system.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1448 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
