Product details

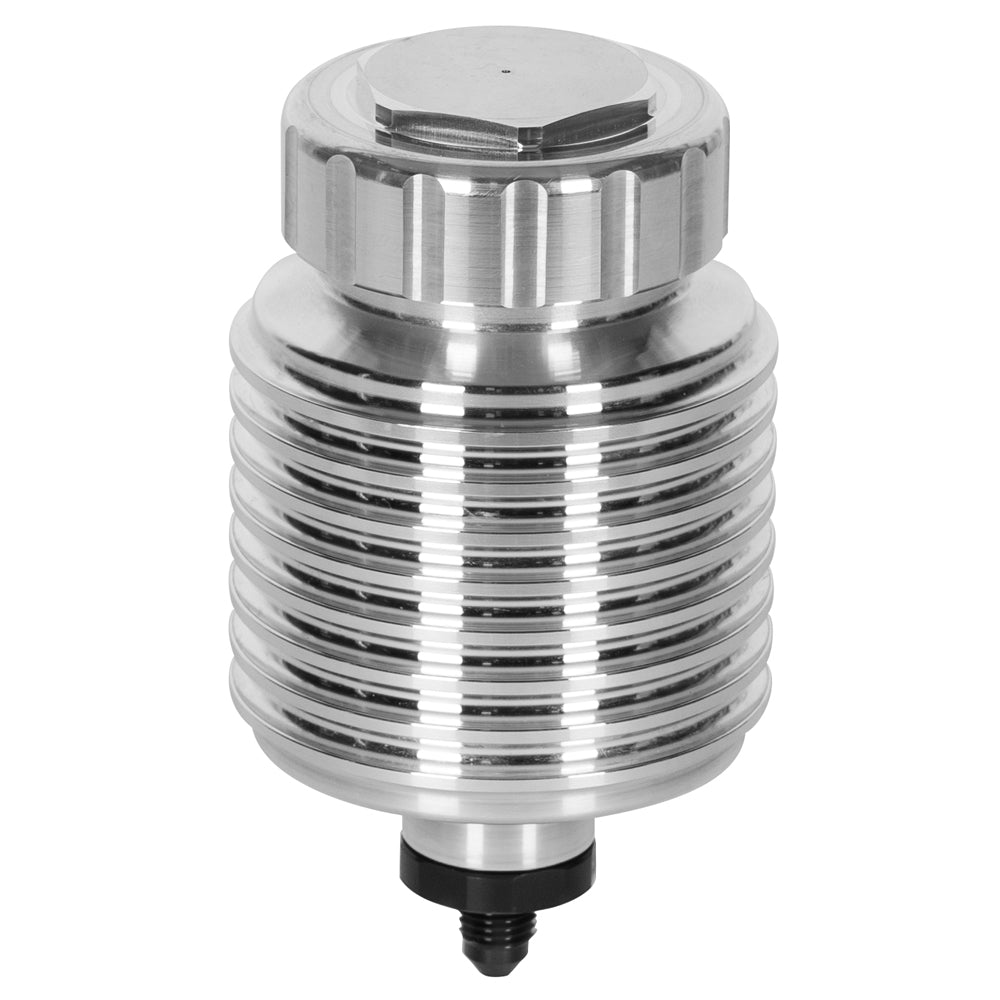

A finned aluminum body and matching cap give this four-ounce remote reservoir its bright machined appearance. Its supplied bottom adapter accepts a -3 AN fluid-feed line, allowing the reservoir to be mounted away from the master cylinder. Master cylinders are part of Wilwood Engineering's wider disc brake range, alongside calipers, rotors, valves, fittings and brake lines. Wilwood was founded in 1977 by Bill Wood and designs and manufactures its systems from Camarillo, California for motorsport, specialized and street-performance applications. Hydraulic sizing and mechanical compatibility remain decisions for the complete brake system.
Technical Details
- Manufacturer part number: 260-16390
- Material: Aluminum
- Finish: Burnished
- Component: Lightweight finned billet aluminum fluid reservoir
- Capacity: 4 oz
- Native reservoir outlet: 9/16-18
- Supplied adapter: -3 AN remote-feed adapter
- Cap: Aluminum
- Outside diameter: 2.45 inches

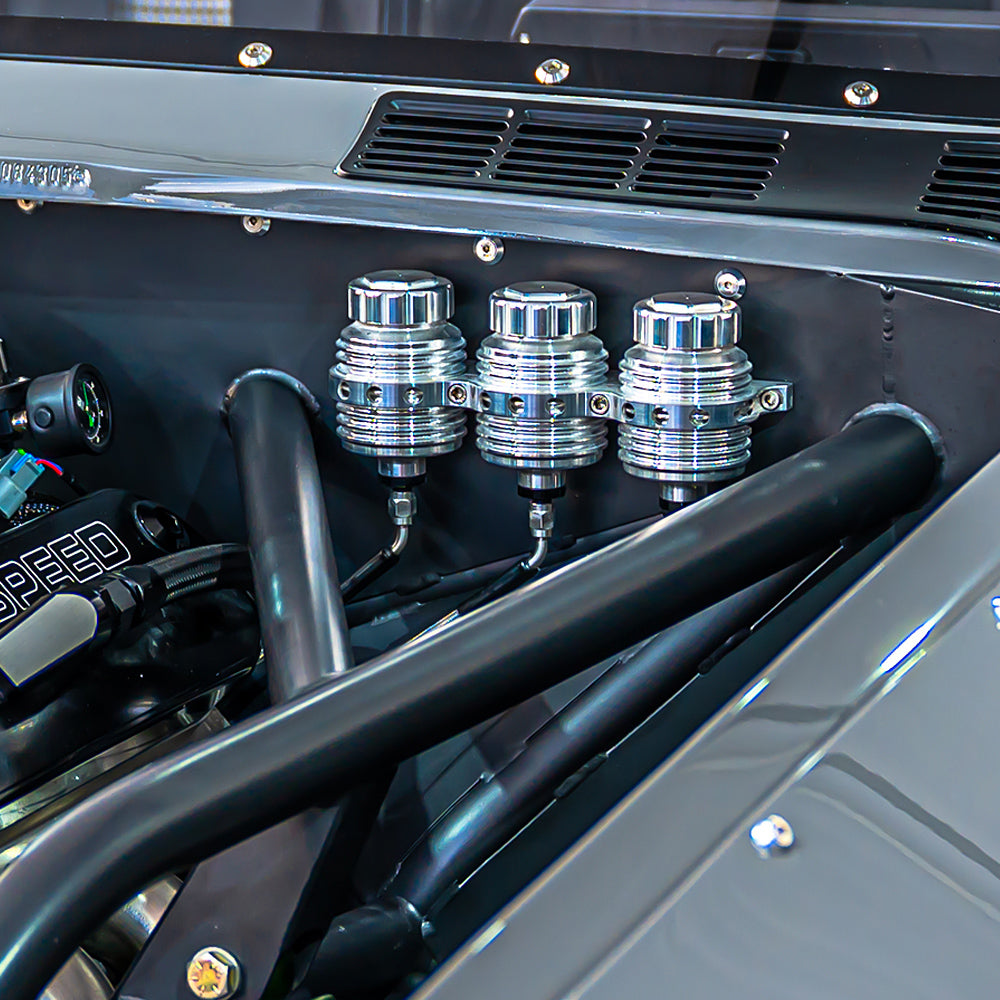

- Mounting: Separate bracket and remote feed hose required
- Reservoir height: 4.38 inches, remote configuration
Fitment & Compatibility
Provide a suitable reservoir bracket, flexline and master-cylinder inlet adapter separately. The reservoir's native 9/16-18 outlet uses the supplied -3 AN connector; it is not the direct-mount 11/16-20 package. Check reservoir height, cap access and feed routing before selecting the final position.
Manufacturer Documents
- Wilwood product specifications
- Wilwood DS1448 instructions and specifications
- Wilwood FL162 instructions and specifications
