Product details

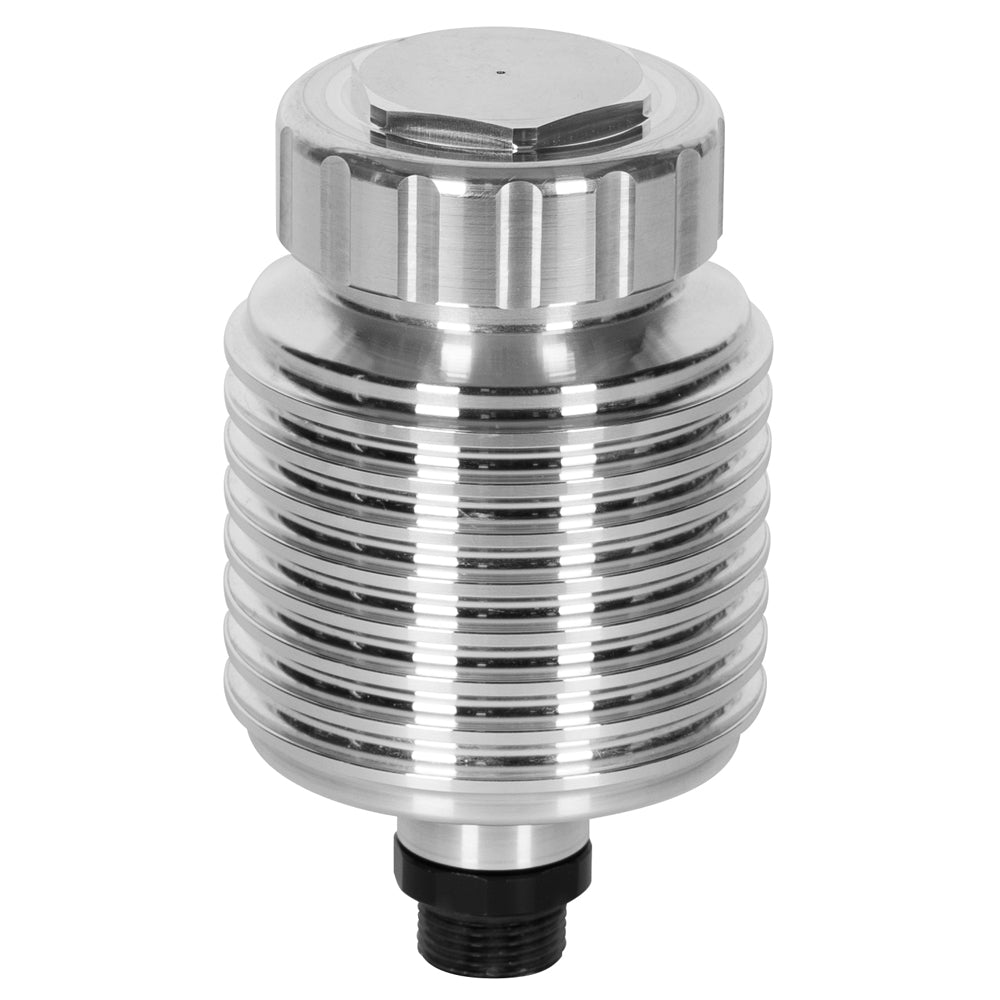

The finned billet reservoir places four ounces of fluid directly above a compatible Compact Remote master. A matching aluminum cap and bellows seal close the bright body, while the supplied adapter joins its bottom outlet to the master's threaded reservoir support. Wilwood Engineering's disc brake systems bring together calipers, rotors, valves, master cylinders, fittings and brake lines. Founded by Bill Wood in 1977 and based in Camarillo, California, the company designs and manufactures products for motorsport, street-performance and specialized applications. The installed system determines which individual component is appropriate.
Technical Details
- Manufacturer part number: 260-16389
- Material: Aluminum
- Finish: Burnished
- Component: Lightweight finned billet aluminum fluid reservoir
- Capacity: 4 oz
- Native reservoir outlet: 9/16-18
- Supplied adapter: 11/16-20 direct-master adapter
- Cap: Aluminum
- Outside diameter: 2.45 inches
- Mounting: Direct attachment to specified Compact Remote master
- Reservoir height: 4.27 inches, direct configuration
Fitment & Compatibility
Use the included 9/16-18-to-11/16-20 adapter with the specified flange- or side-mounted Compact Remote cylinder. Confirm cap clearance and fluid capacity for the brake or clutch circuit. This is the direct-mount reservoir package; a master cylinder and a remote mounting bracket are not included.
Manufacturer Documents
- Wilwood product specifications
- Wilwood DS1448 instructions and specifications
- Wilwood FL162 instructions and specifications
The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
