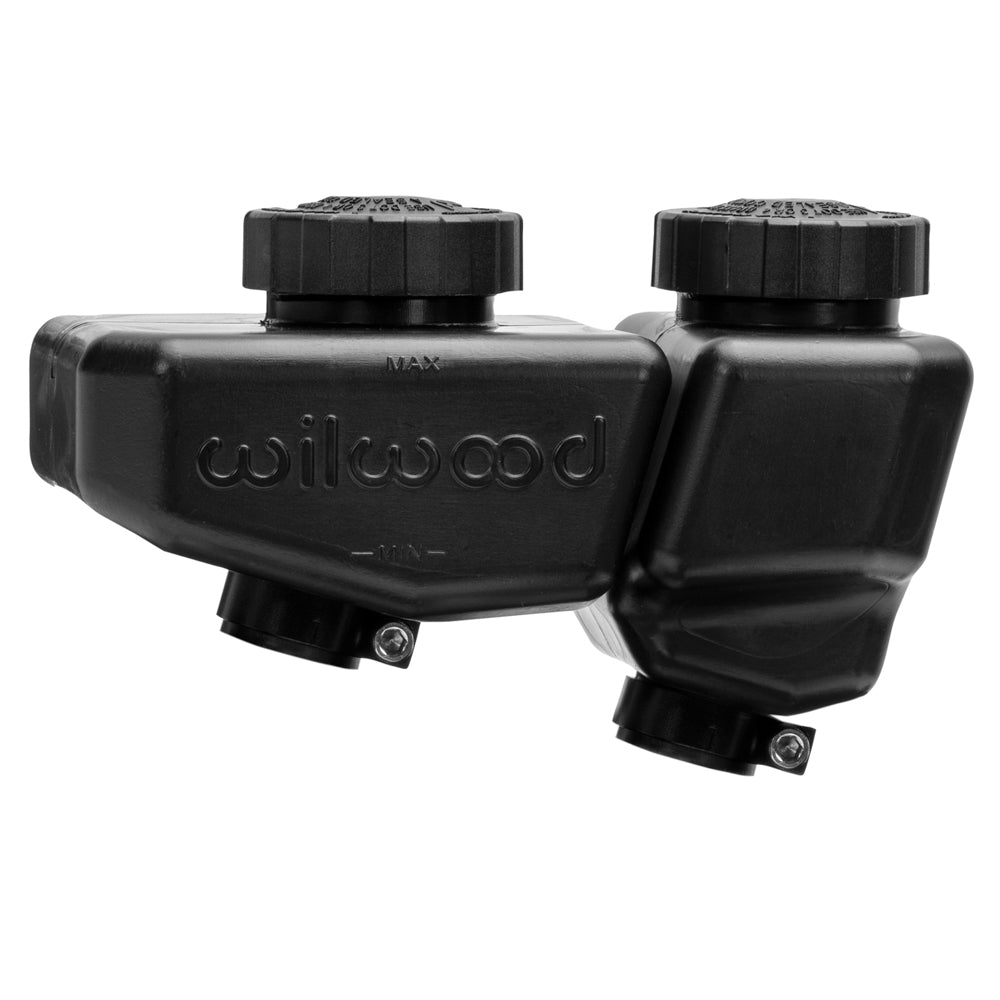

Wilwood Angled Reservoir Kit for Remote Tandem Masters on 15-Degree GM Booster Mounts

This reservoir pair corrects the container angle when a compatible Remote Tandem master sits on an upward-tilted booster. The tops are designed to lie level at a 15-degree cylinder angle, with separate 7.8- and 4.7-ounce fluid capacities. Founded in 1977 by Bill Wood, Wilwood Engineering carries out disc brake design and manufacturing from Camarillo, California. Its rotors, calipers, brake lines, master cylinders, fittings and valves serve motorsport, street-performance and specialized applications. Parts within that range must be matched to one another and to the requirements of the complete braking system.

Technical Details

• Manufacturer part number: 260-16240
• Material: Plastic
• Component: Angled reservoir conversion set for Remote Tandem master
• Containers: 7.8 and 4.7 oz; level tops when master is tilted upward 15 degrees
• Supplied: Reservoirs and attachment hardware; master cylinder and booster separate

Fitment & Compatibility

Use with the specified Wilwood Remote Tandem body and verify the booster angle and inlet spacing. Wilwood identifies GM applications including G-body-style layouts, but the vehicle's actual mount determines suitability. Attachment hardware is included; the master cylinder and booster are not part of this reservoir package.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications

PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
