Wilwood Brake Bleeding Catch Bottle, 500 mL, with Silicone Tube and Hanging Lanyard

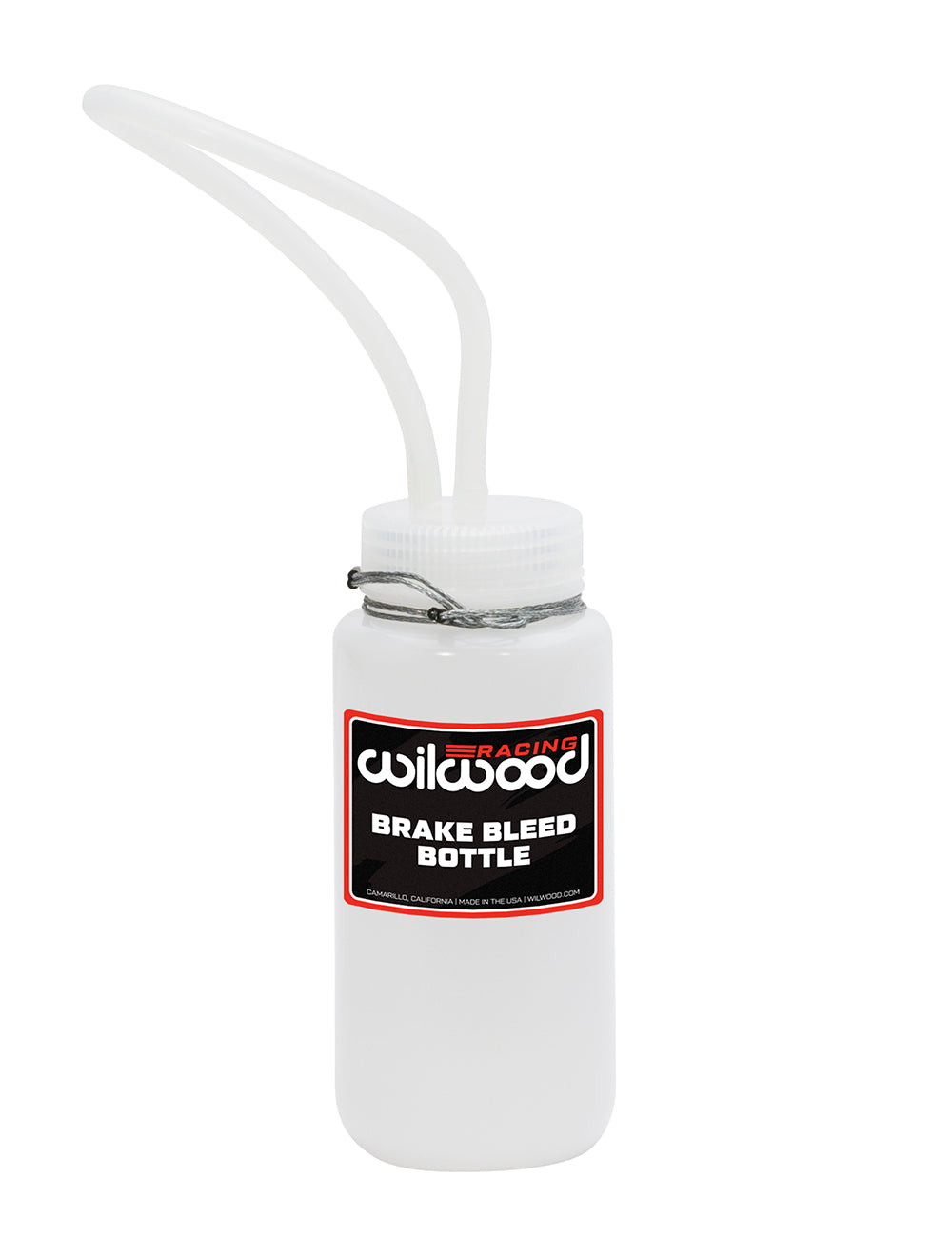

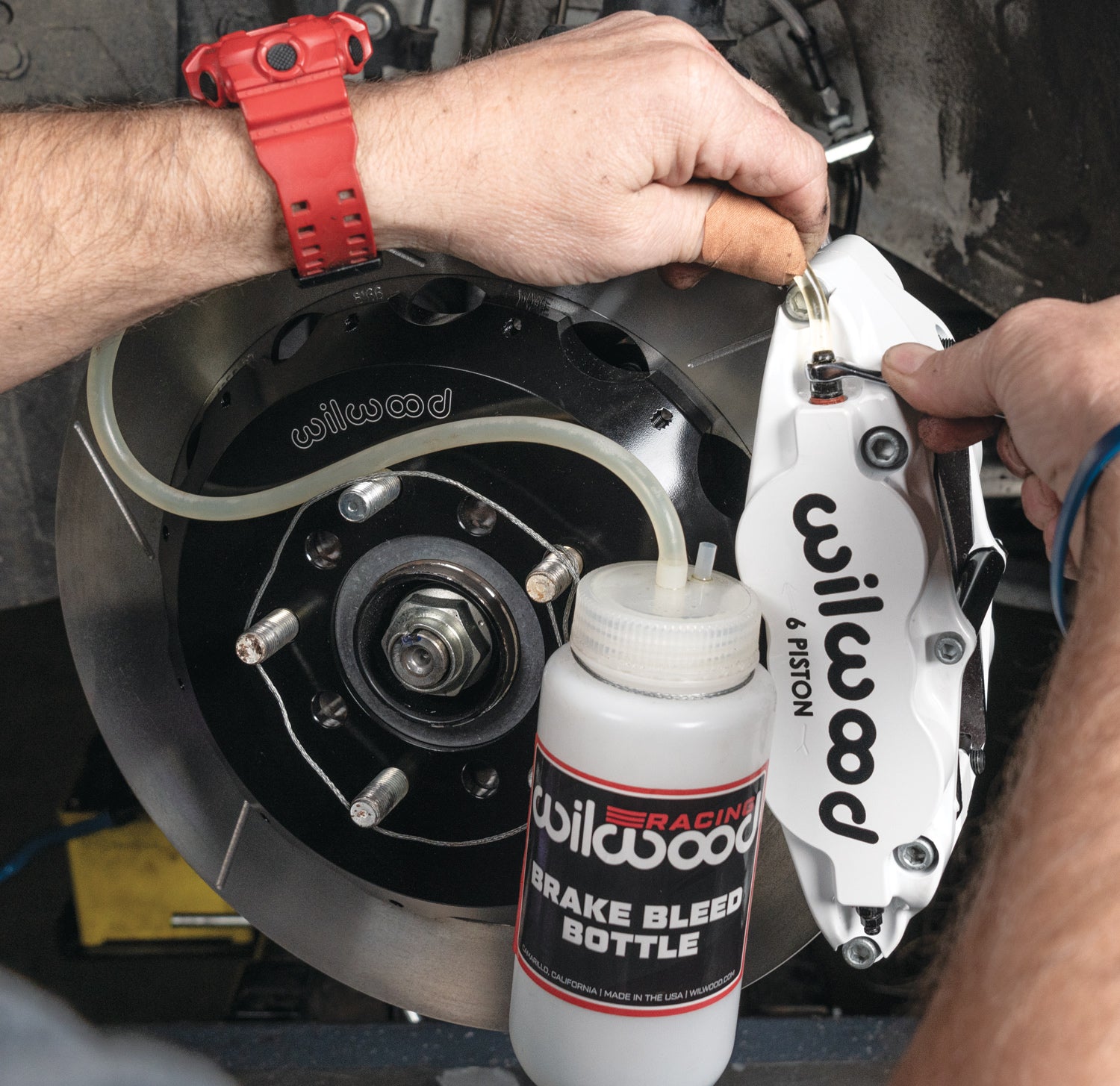

This polyethylene catch bottle receives fluid expelled through a brake bleeder during servicing. A semi-transparent silicone hose allows the flow to be observed, and a braided wire lanyard helps suspend the container close to the working area. From calipers and rotors to master cylinders, valves, brake lines and fittings, Wilwood Engineering's range covers disc brake systems and service components. Bill Wood founded the company in 1977; it is based in Camarillo, California and designs and manufactures for street-performance, specialized and motorsport applications. All component choices need to account for the complete system.

Technical Details

• Manufacturer part number: 260-16018
• Material: Plastic
• Finish: Bare
• Component: Brake-bleeding catch bottle
• Capacity: 500 mL (16.9 oz)
• Supplied: Polyethylene bottle, 3/16-inch silicone tube and hanging wire lanyard
• Function: Collects expelled fluid; does not pressurize the brake system

Fitment & Compatibility

Check the supplied 3/16-inch hose against the actual bleeder nipple and support the bottle securely while bleeding. The nominal 500 mL capacity is approximately 16.9 fluid ounces. This is a fluid-collection tool, not a pressure bleeder, master-cylinder reservoir or permanent hydraulic component.

Manufacturer Documents

• Wilwood product specifications
• Wilwood FL162 instructions and specifications

For help choosing the correct service or conversion component, contact PMB Performance with the existing brake-system details. Our team has over 20 years of experience working through parts and fitment requirements.
