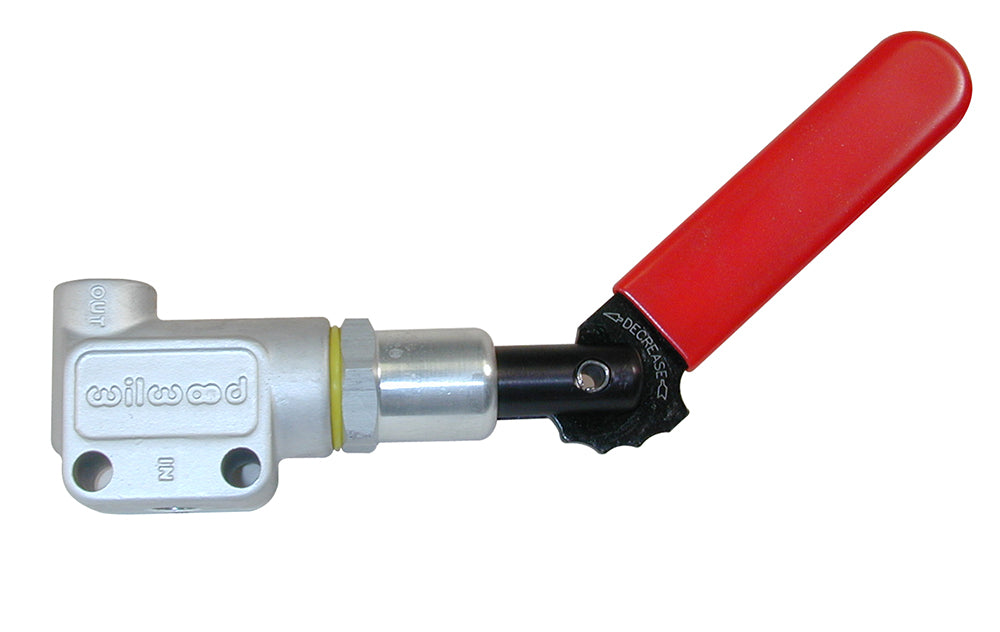

Wilwood Six-Position Lever Proportioning Valve with M10 x 1 Bubble-Flare Ports

Six positive lever positions let this valve reduce pressure in an appropriately designed rear brake circuit. Both connections use M10 x 1 bubble-flare seats, distinguishing the metric version from a pipe-thread lever valve that may look similar. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and builds disc brake systems for motorsport, street-performance and specialized applications, with a range extending through calipers, rotors, valves, brake lines, fittings and master cylinders. Individual parts must be compatible with the system in which they operate.

Technical Details

• Manufacturer part number: 260-15832
• Material: Aluminum / Steel
• Finish: Clear Anodize
• Maximum pressure reduction: 57%
• Mounting: Two 0.25-inch holes on 1.00-inch centers
• Use: Custom brake-system proportioning, normally in the rear circuit; not a direct OEM replacement
• Pressure connections: M10 × 1.0 bubble-flare inlet and outlet
• Adjustment: Six-position lever

Fitment & Compatibility

Connect the master-cylinder supply to IN and the rear brake line to OUT. Mount through the two quarter-inch body holes on one-inch centers without removing the lever or end cap for panel mounting. It is a custom-system proportioning valve, with up to 57 percent reduction, not a direct replacement for an arbitrary original-equipment valve.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1346 instructions and specifications
• Wilwood FL162 instructions and specifications

With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
