Wilwood Right-Hand Combination Valve and Line Kit for Compact Tandem Masters

This right-hand mounting package includes the combination valve and formed stainless tubes for a compatible Compact Tandem master. Its bracket and fasteners support the valve beside the smaller master housing, keeping the pressure-control assembly together at the cylinder. Wilwood Engineering designs and manufactures disc brake systems in Camarillo, California. Bill Wood founded the company in 1977; its range now encompasses calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Each component must suit the hydraulic and mechanical requirements of the complete system.

Technical Details

• Manufacturer part number: 260-15667
• Material: Aluminum / Steel
• Primary Outlet Thread Size: 3/8-24 IF
• Finish: Clear Anodize / Black E-coat

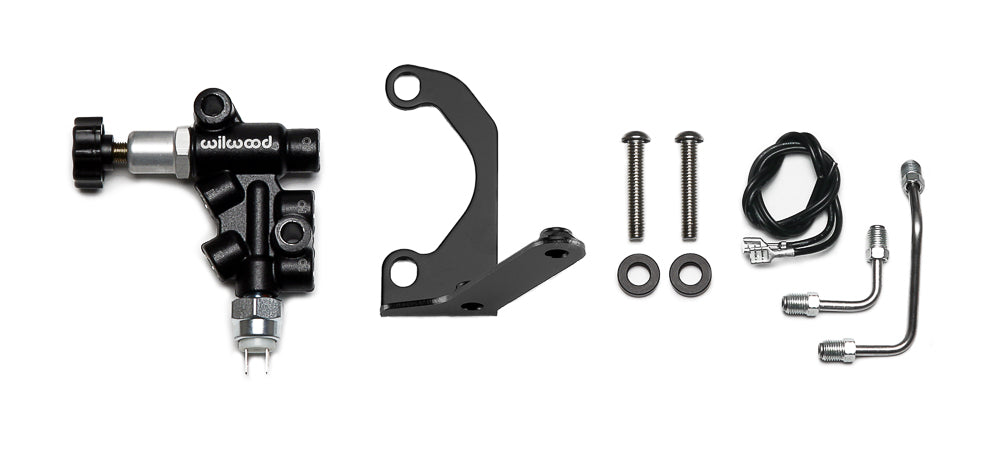

• Kit contents: Combination proportioning valve, mounting bracket, formed stainless lines and fastening hardware; master cylinder is not included
• Bracket side: Right
• Valve functions: Adjustable rear pressure, hydraulic brake-light switch and isolated front/rear circuits
• Fluid inlet: 3/8-24 IF
• Outlet connection: 3/8-24 IF

Fitment & Compatibility

Use the specified Compact Tandem outlet layout and confirm clearance to the right of the master. Wilwood identifies the 260-14957 through 260-14960 families and applicable pushrod variants. Verify the labeled front and rear valve connections; the linked bracket instructions do not make this complete valve kit a master-cylinder package.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1178 instructions and specifications
• Wilwood FL162 instructions and specifications

PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
