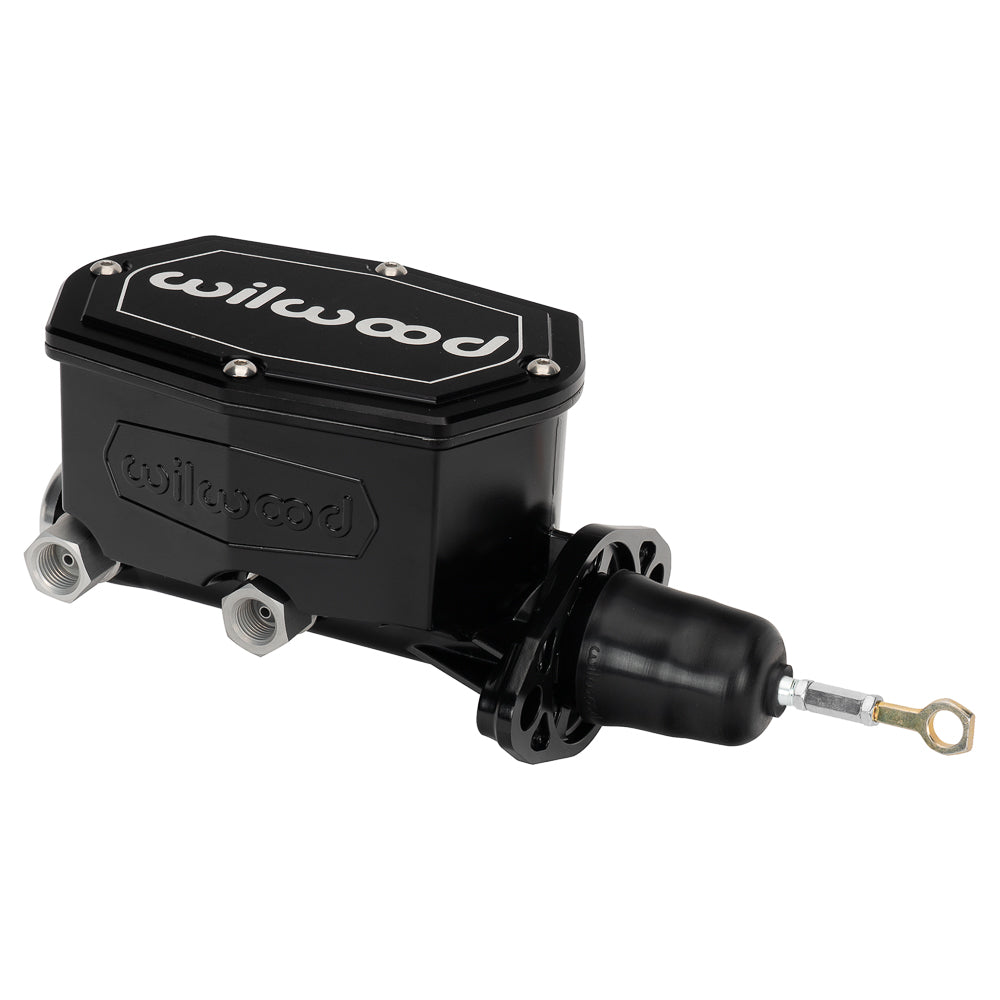

Wilwood Black One-Inch Compact Master with Mustang-Style Manual Pushrod and Eyelet

A one-inch Compact Tandem bore is combined with a Mustang-style manual-pedal eyelet in this black assembly. The integral reservoir and longer vehicle-style rod distinguish it from a generic compact master with only a threaded rod end. Wilwood Engineering designs disc brake systems and manufactures a range of calipers, master cylinders, valves, fittings, rotors and brake lines. Founded in 1977 by Bill Wood, the Camarillo, California company serves specialized, street-performance and motorsport applications. Component selection requires understanding the brake assembly as a whole, including its hydraulic sizing and mechanical interfaces.

Technical Details

• Manufacturer part number: 260-15542-BK
• Material: Aluminum
• Cylinder bore: 1.00"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
• Fluid capacity: 7.8 / 4.7 oz
• Flange-to-end length: 6.55"
• Overall Length: 12.32"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 5.75"
• Finish: Black E-coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

Fitment & Compatibility

Match the factory manual pedal described by Wilwood's 1964–1972 Mustang master page and its broader Ford-style flyer. Check the actual eyelet engagement, flange and 1.10-inch travel rather than relying on a model-year label alone. The bore must still suit the installed front and rear brakes and the selected pedal leverage.
