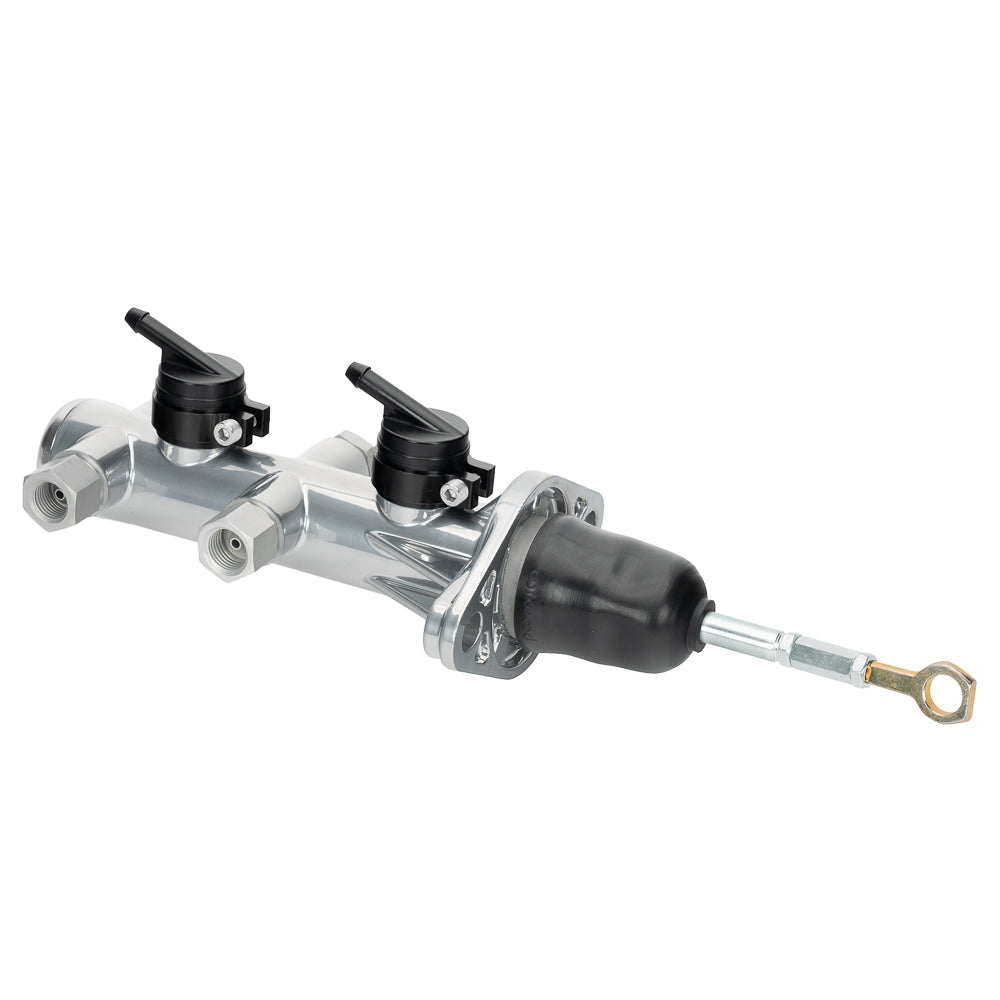

Wilwood Chrome Powder Remote Master with Mustang-Style Eyelet, 15/16-inch Bore

This chrome powder-coated Remote Tandem master combines the fifteen-sixteenths-inch bore with a Ford manual-pedal pushrod and eyelet. Separate reservoir mounts allow the two fluid containers to be positioned for accessible filling rather than directly above the cylinder. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems. Its Camarillo, California operation supplies master cylinders, brake lines, valves, rotors, fittings and calipers for specialized applications as well as motorsport and street-performance vehicles. Replacement and conversion parts need to match the complete braking arrangement.

Technical Details

• Manufacturer part number: 260-15491-P
• Material: Aluminum / Plastic
• Cylinder bore: 15/16"
• Pressure circuits: 2
• Reservoir Type: Remote
• Fluid capacity: 7.0 / 7.0 oz
• Flange-to-end length: 6.56"
• Overall Length: 10.76"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 4.23" x 3/8-24
• Finish: Chrome powder coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly
• Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
• Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs

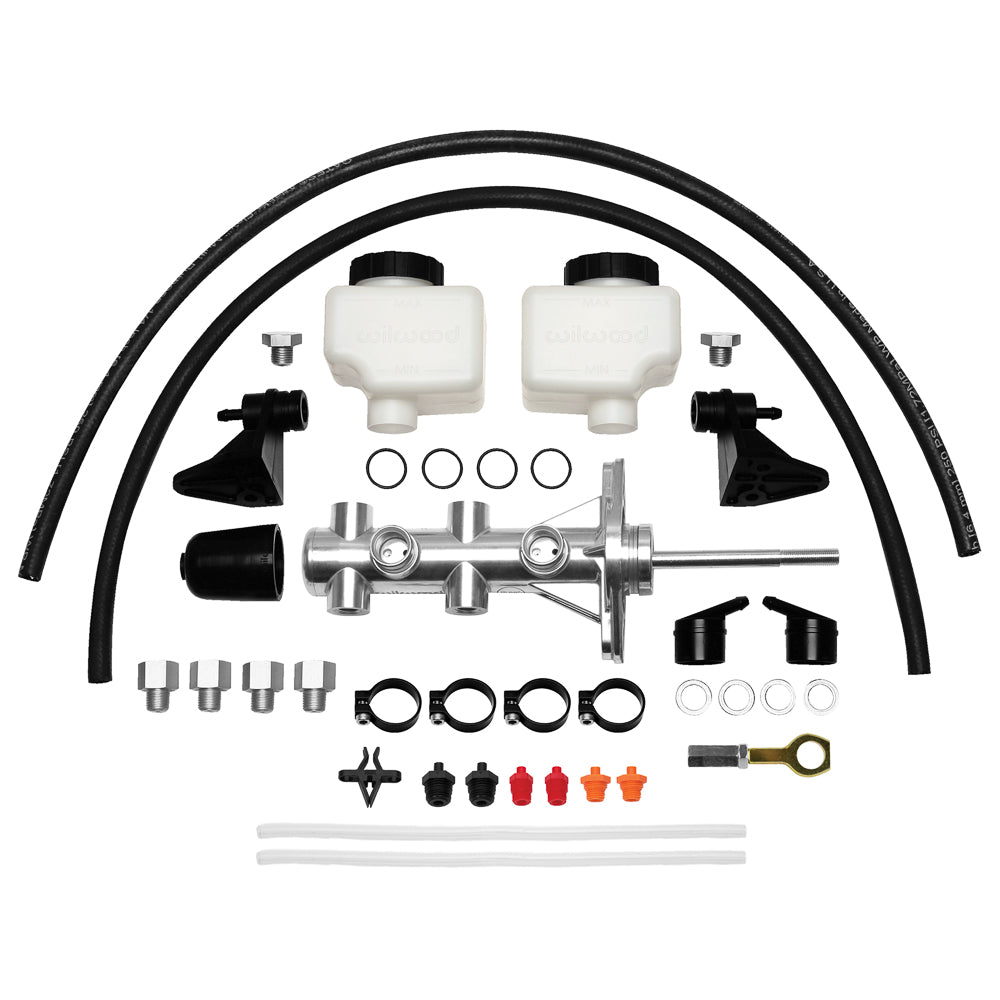

• Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting

Fitment & Compatibility

Verify the actual Ford linkage and 3.22–3.40-inch mounting span. The product page's 1965–1973 Mustang/Ford reference and the flyer's broader 1960–1973 pedal reference both depend on matching hardware geometry. Maintain full piston travel, complete return and the correct flare connections for the independent circuits.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1189 instructions and specifications
• Wilwood FL428 instructions and specifications
• Wilwood FL162 instructions and specifications
• Wilwood FL467 instructions and specifications

PMB Performance offers over 20 years of parts and brake-fitment experience. For a compatibility check, provide the existing assembly and the dimensions that govern the replacement.
