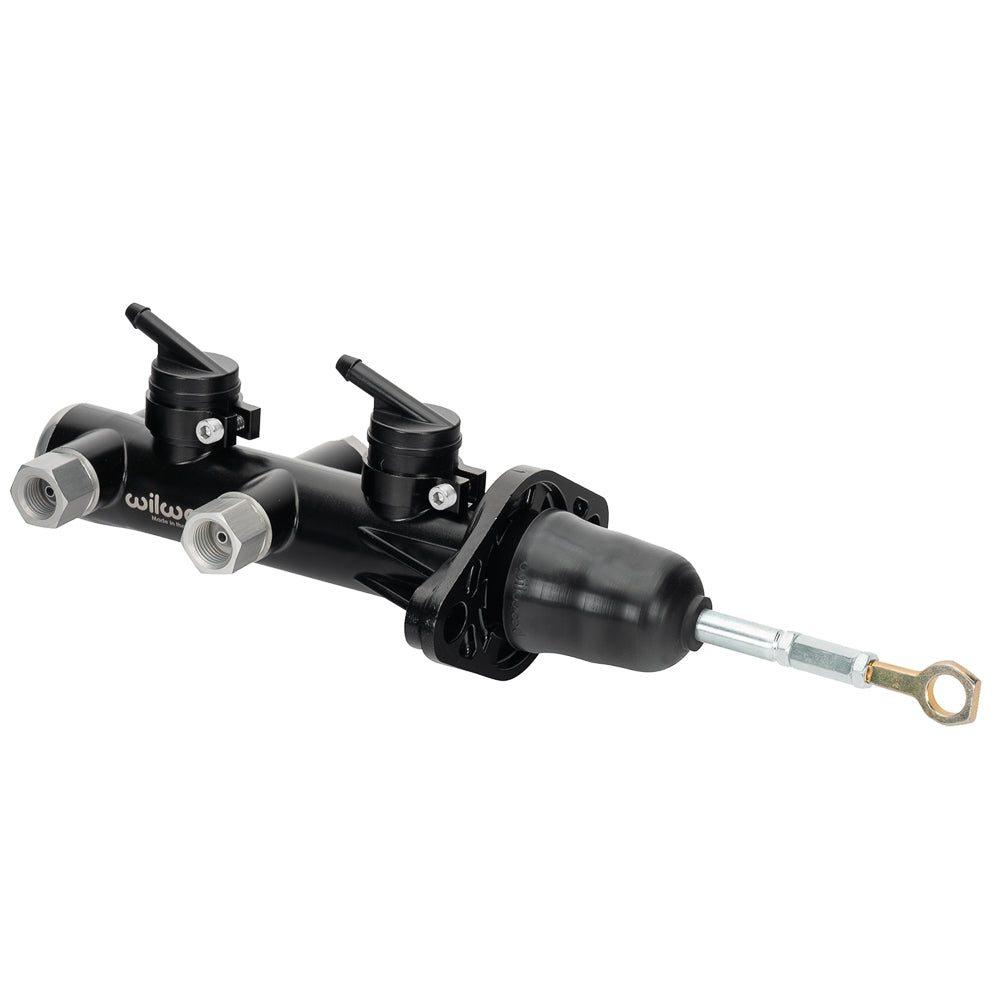

Wilwood Black 7/8-inch Remote Tandem Master with Ford Mustang Manual-Pedal Pushrod

This black Remote Tandem master includes the eyelet-style pushrod for the specified classic Ford manual pedal arrangement. A seven-eighths-inch bore works with two seven-ounce remote reservoirs, making pedal compatibility and reservoir placement separate installation checks. Disc brake systems and components are the focus of Wilwood Engineering's design and manufacturing work for street-performance, specialized and motorsport applications. Bill Wood founded the Camarillo, California company in 1977. Its master cylinders, calipers, fittings, valves, brake lines and rotors are chosen according to the needs of the complete brake system.

Technical Details

• Manufacturer part number: 260-15490-BK
• Material: Aluminum / Plastic
• Cylinder bore: 7/8"
• Pressure circuits: 2
• Reservoir Type: Remote
• Fluid capacity: 7.0 / 7.0 oz
• Flange-to-end length: 6.56"
• Overall Length: 10.76"
• Mounting centers: 3.22–3.40"
• Pushrod dimensions: 4.23" x 3/8-24
• Finish: Black E-coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly
• Travel check: DS-1189 specifies 1.12-inch stroke and also states 1.10 inches in its full-travel warning; verify actual full piston travel before the pedal reaches a stop
• Reservoir feed: 0.87-inch inlet seating diameter with 11/16-20 internal thread; 1/4-inch feed-hose adapters for the standard remote reservoirs

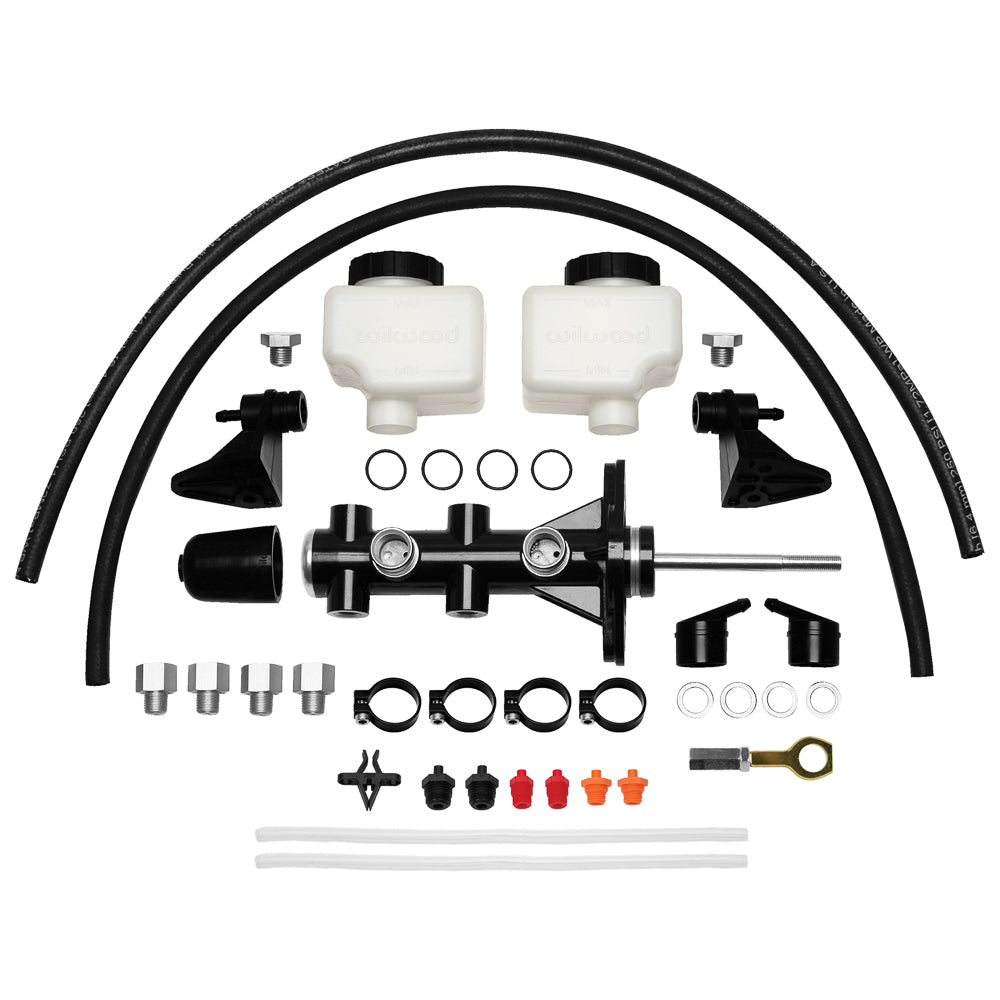

• Reservoir package: Two 7 oz reservoirs with caps, brackets, clamps, hoses and feed adapters for direct or remote mounting

Fitment & Compatibility

Wilwood's exact page identifies 1965–1973 Mustang/Ford applications, while its Ford-style flyer describes compatible factory manual-pedal geometry across 1960–1973 Ford cars. Verify the actual pedal, eyelet and mounting dimensions instead of treating those broad ranges as universal vehicle fitment. Retain independent circuits and full piston travel.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1189 instructions and specifications
• Wilwood FL428 instructions and specifications
• Wilwood FL162 instructions and specifications
