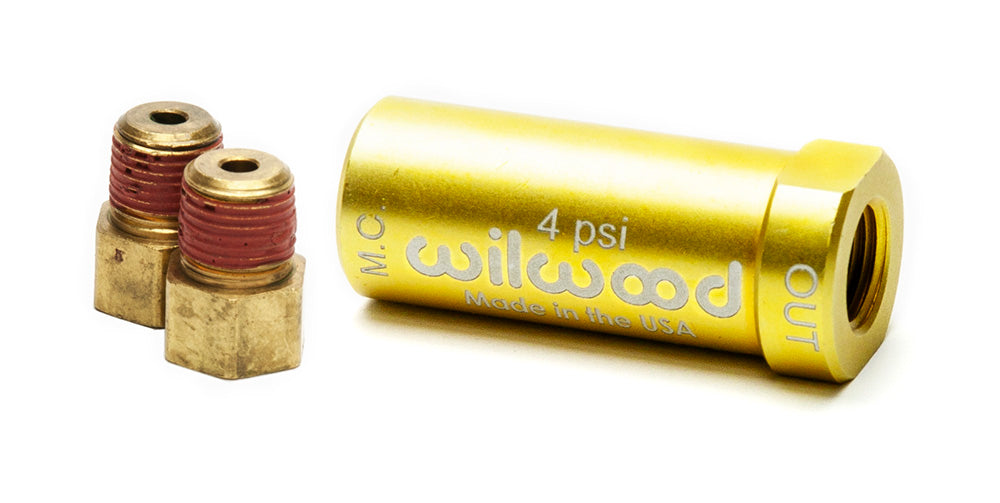

Wilwood 4 psi Gold Residual Valve Kit with Female Inverted-Flare Adapters

The four-psi valve and supplied adapter pair provide a residual-pressure connection for an appropriately specified high-vibration brake circuit. Each adapter converts a native pipe port to a 3/8-24 female inverted-flare seat for three-sixteenths-inch hard line. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and builds disc brake systems, with calipers, master cylinders, rotors, brake lines, fittings and valves serving street-performance, motorsport and specialized applications. Selecting an individual part requires checking how it works with the rest of the braking assembly.

Technical Details

• Manufacturer part number: 260-15366
• Material: Aluminum
• Finish: Gold Anodize
• Component: Inline residual-pressure valve
• Residual setting: 4 psi
• Native ports: 1/8-27 NPT
• Adapters: Two adapters to 3/8-24 female inverted flare for 3/16-inch double-flared line included
• Selection: Specified high-vibration dirt-track or off-road brake applications

Fitment & Compatibility

Use in a system assessed for the four-pound setting, including suitable dirt-track or off-road configurations. Confirm brake release and orient the marked master end toward the pressure source. The fitting package changes the line connection, not the residual setting or the need to verify hydraulic suitability.

Manufacturer Documents

• Wilwood product specifications
• Wilwood NEW_RPV instructions and specifications
• Wilwood FL162 instructions and specifications
