Product details

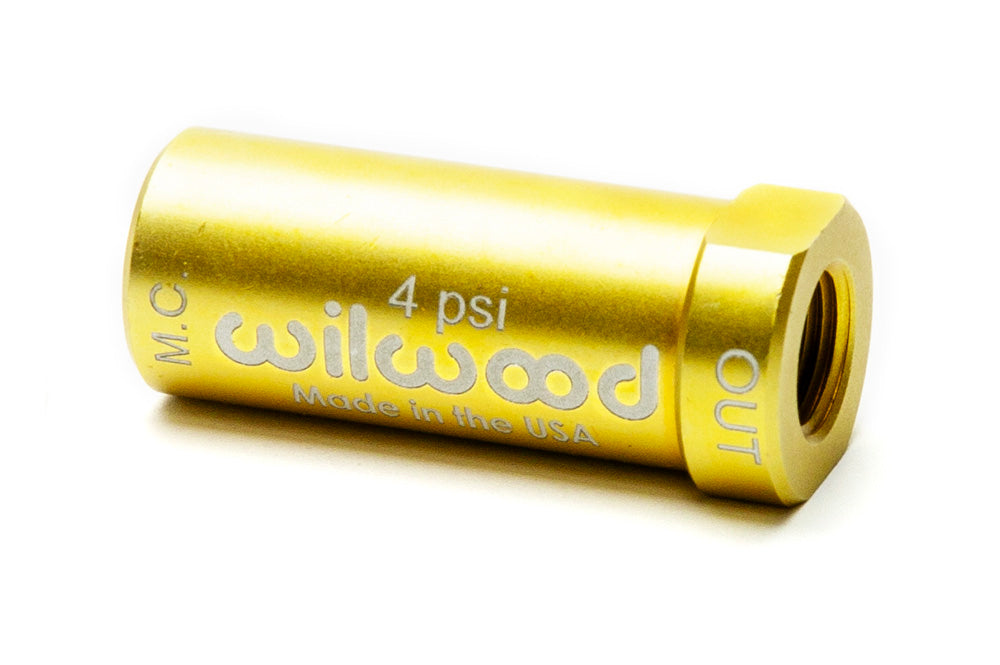

A four-pound residual setting distinguishes this gold valve from the standard two- and ten-pound versions. Wilwood identifies it as an option for suitable high-vibration brake systems, such as off-road and dirt circle-track installations, where residual-pressure requirements need specific assessment. Wilwood Engineering serves motorsport, specialized and street-performance applications through disc brake system design and manufacturing. Bill Wood founded the company in 1977, and it is based in Camarillo, California. The range spans valves, rotors, fittings, calipers, brake lines and master cylinders; the installed braking assembly determines the appropriate combination of parts.
Technical Details
- Manufacturer part number: 260-15365
- Material: Aluminum
- Finish: Gold Anodize
- Component: Inline residual-pressure valve
- Residual setting: 4 psi
- Native ports: 1/8-27 NPT
- Adapters: Not included
- Selection: Specified high-vibration dirt-track or off-road brake applications
Fitment & Compatibility
Verify that four psi is appropriate for the actual circuit and will not create brake drag. The valve's native inlet and outlet are 1/8-27 NPT and no adapters are included. Place it near the master with the marked flow direction observed; it does not provide adjustable brake bias.
Manufacturer Documents
- Wilwood product specifications
- Wilwood NEW_RPV instructions and specifications
- Wilwood FL162 instructions and specifications
PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
