Product details

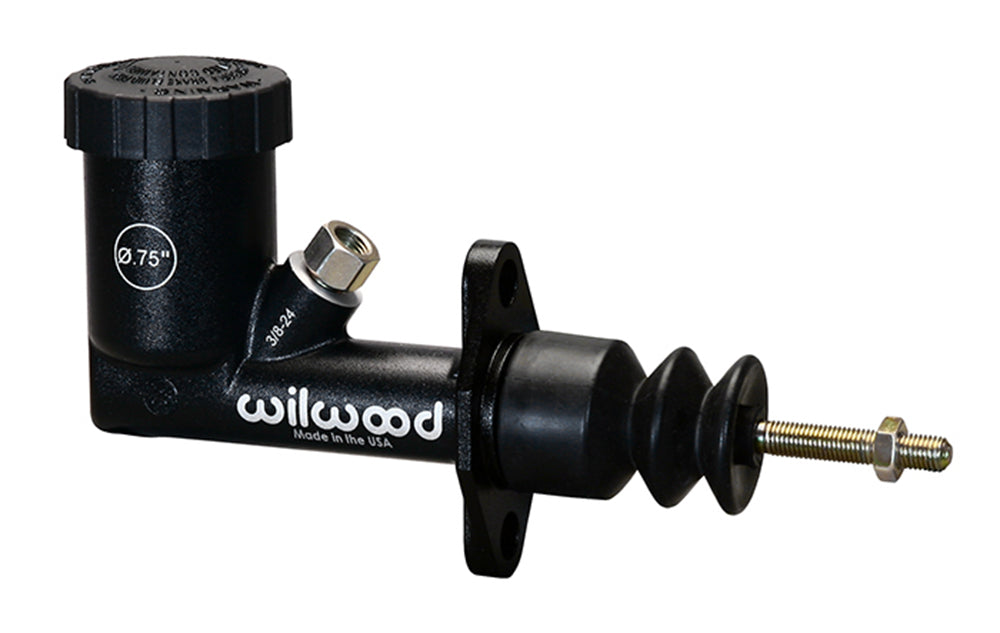

The three-quarter-inch GS Integral master carries its fluid reservoir directly on the cylinder body. Its bore and 1.25-inch stroke provide the specified 0.55-cubic-inch output, while the black finish and bellows-seal cap protect the exterior and fluid opening. Wilwood Engineering's disc brake systems bring together calipers, rotors, valves, master cylinders, fittings and brake lines. Founded by Bill Wood in 1977 and based in Camarillo, California, the company designs and manufactures products for motorsport, street-performance and specialized applications. The installed system determines which individual component is appropriate.
Technical Details
- Manufacturer part number: 260-15098
- Material: Aluminum
- Cylinder bore: 3/4"
- Pressure circuits: 1
- Stroke Length: 1.25 in
- Listed displacement per stroke: 0.55 cu in
- Reservoir Type: Integral
- Fluid capacity: 1.5 oz
- Flange-to-end length: 3.96
- Overall Length: Exact page: 7.99 inches; DS-1151 Figure 2 integral drawing: 7.85 inches. Confirm installed clearance.
- Mounting centers: 2.25"
- Pushrod dimensions: 3.37" x 5/16-24
- Finish: Black E-coat
- Pressure outlet: 3/8-24 inverted flare
- Fluid selection: DOT 3, DOT 4 or DOT 5.1 for performance use; DOT 5 silicone not recommended
- Reservoir package: Integral 1.5 oz chamber with sealed cap
- Outlet connection: 3/8-24 IF Female
Fitment & Compatibility
Check both displacement and reservoir reserve for the installed hydraulic circuit. Use the 3/8-24 female inverted-flare outlet, 5/16-24 rod and 2.25-inch flange as distinct connection requirements. If the system places the master below the brakes, assess the appropriate residual-pressure arrangement separately.
Manufacturer Documents
- Wilwood product specifications
- Wilwood DS1151 instructions and specifications
- Wilwood FL402 instructions and specifications
- Wilwood FL162 instructions and specifications
The component must suit the completed installation. PMB Performance draws on over 20 years of experience to help you check the part identification, mating connections and required operating dimensions.
