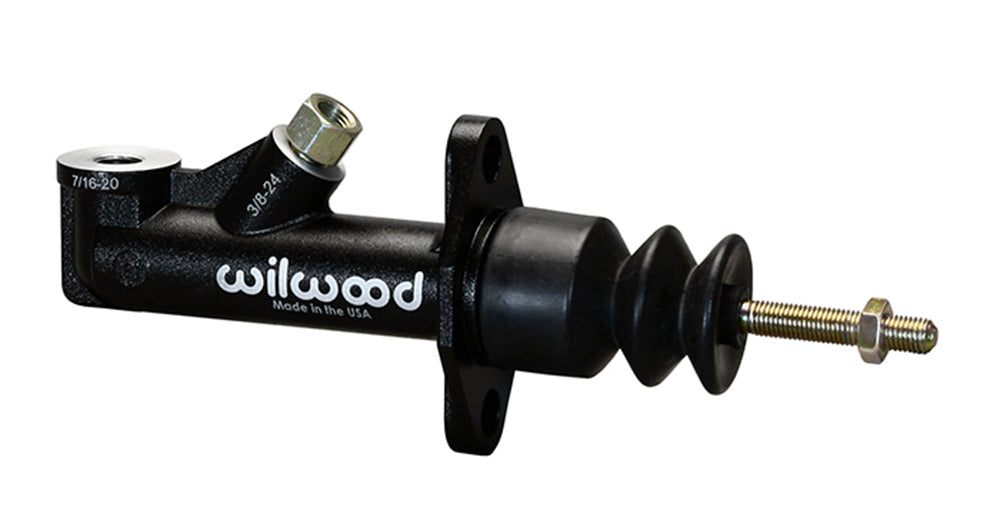

Wilwood 5/8-inch GS Remote Master with Inverted-Flare Outlet and Threaded Inlet

This GS Compact Remote master uses a five-eighths-inch bore in a rebuildable die-cast aluminum housing. The remote supply connects through a threaded inlet, allowing the fluid container to be mounted away from the cylinder while the pressure outlet remains on the body. For motorsport, street-performance and specialized applications, Wilwood Engineering designs and manufactures disc brake systems and their components. The Camarillo, California company was founded by Bill Wood in 1977. Its range of rotors, calipers, valves, fittings, brake lines and master cylinders supports assemblies whose individual parts must be selected to work together.

Technical Details

• Manufacturer part number: 260-15089
• Material: Aluminum
• Cylinder bore: 5/8"
• Pressure circuits: 1
• Stroke Length: 1.25 in
• Listed displacement per stroke: 0.39 cu in
• Reservoir Type: Remote
• Flange-to-end length: 4.10
• Overall Length: Exact page: 7.85 inches; DS-1151 Figure 1 remote drawing: 7.99 inches. Confirm installed clearance.
• Mounting centers: 2.25"
• Pushrod dimensions: 3.37" x 5/16-24
• Finish: Black E-coat
• Pressure outlet: 3/8-24 inverted flare
• Fluid selection: DOT 3, DOT 4 or DOT 5.1 for performance use; DOT 5 silicone not recommended
• Reservoir package: Remote reservoir and feed connection purchased separately
• Feed inlet: 7/16-20 thread
• Fluid inlet: 7/16-20 in
• Outlet connection: 3/8-24 IF Female

Fitment & Compatibility

Choose a reservoir, hose and compatible 7/16-20 inlet adapter separately. Check pedal leverage, the 1.25-inch stroke and 2.25-inch flange centers against the circuit's needs. Install the pressure line at the 3/8-24 inverted-flare outlet and keep the piston free to return completely.
