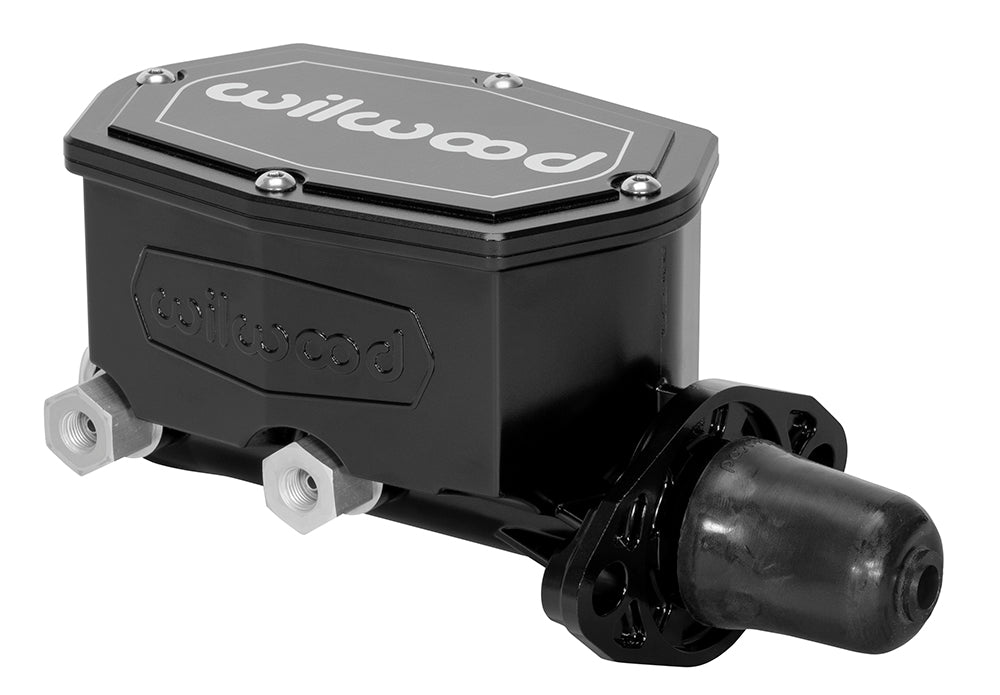

Wilwood Black 1-1/8-inch Compact Tandem Master for Assisted Brakes, Without Pushrod

The one-and-one-eighth-inch bore is intended primarily for suitable vacuum- or hydraulically assisted brake systems. This black Compact Tandem version omits a pedal pushrod and stores fluid in two chambers within the master housing. The manufacturer is Wilwood Engineering of Camarillo, California, established by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems alongside calipers, fittings, master cylinders, rotors, brake lines and valves. Its street-performance, motorsport and specialized ranges require component selection around the demands of the complete assembly.

Technical Details

• Manufacturer part number: 260-14960-BK
• Material: Aluminum
• Cylinder bore: 1-1/8"
• Pressure circuits: 2
• Stroke Length: 1.10 in
• Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
• Fluid capacity: 7.8 / 4.7 oz
• Flange-to-end length: 6.55"
• Overall Length: 7.16"
• Mounting centers: 3.22–3.40"
• Finish: Black E-coat
• Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
• Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
• Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
• Service: Factory rebuild only; do not disassemble the tandem piston assembly

Fitment & Compatibility

Check the booster's actuator length, piston recess and the 3.22–3.40-inch mounting span. Use the supplied spacer only where the matched short-rod configuration calls for it, and retain full piston return. The master requires its complete 1.10-inch stroke before a stop limits pedal motion.

Manufacturer Documents

• Wilwood product specifications
• Wilwood DS1287 instructions and specifications
• Wilwood FL162 instructions and specifications
