Product details

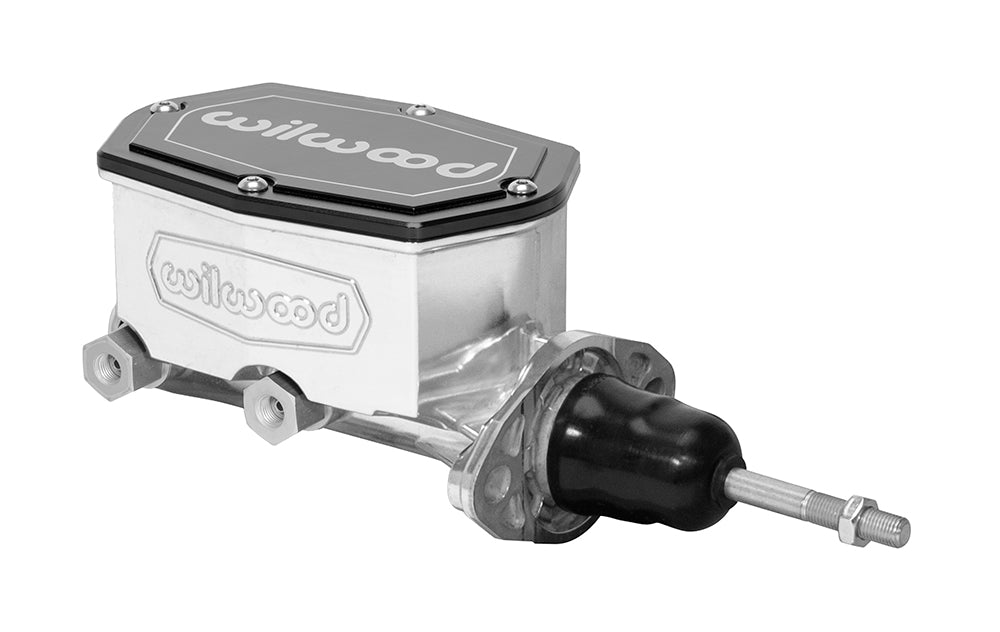

This fifteen-sixteenths-inch Compact Tandem master packages both reservoir chambers above a chrome powder-coated cylinder body. The threaded pushrod is included, so the installed length and pedal attachment must be checked along with the compact housing dimensions. Bill Wood's founding of Wilwood Engineering in 1977 established a disc brake design and manufacturing business based in Camarillo, California. Calipers, rotors, master cylinders, fittings, valves and brake lines form its range for motorsport, street-performance and specialized applications. Choosing a service component still requires checking the mating parts and overall system configuration.
Technical Details
- Manufacturer part number: 260-14958-P
- Material: Aluminum
- Cylinder bore: 15/16"
- Pressure circuits: 2
- Stroke Length: 1.10 in
- Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
- Fluid capacity: 7.8 / 4.7 oz
- Flange-to-end length: 6.55"
- Overall Length: 10.93"
- Mounting centers: 3.22–3.40"
- Pushrod dimensions: 4.38" x 3/8-24
- Finish: Chrome powder coat
- Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
- Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
- Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
- Service: Factory rebuild only; do not disassemble the tandem piston assembly
Fitment & Compatibility
Use a secure mounting flange with 3.22–3.40-inch centers and verify full piston return at rest. Both circuits require their own correctly routed lines, and the master must complete its 1.10-inch stroke before the pedal stops. Wilwood specifies factory rebuilding for this tandem design rather than routine user disassembly.
Manufacturer Documents
- Wilwood product specifications
- Wilwood DS1287 instructions and specifications
- Wilwood FL162 instructions and specifications
- Wilwood FL467 instructions and specifications
PMB Performance has more than 20 years of experience matching brake components. Share the actual mounting, linkage and hydraulic arrangement when requesting fitment assistance.
