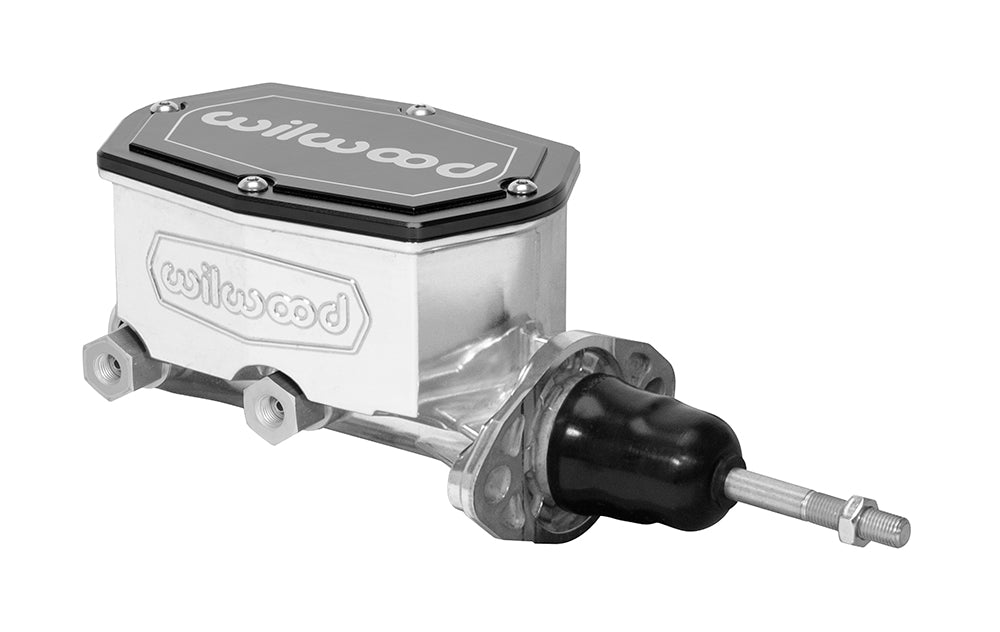

Wilwood Compact Tandem Brake Master Cylinder, Chrome Powder Coat, 7/8-inch Manual Bore and Integral Reservoir

SKU: 260-14957-P

$365.21

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

Chrome powder coating gives this seven-eighths-inch Compact Tandem master its bright exterior. The integral fluid chambers eliminate separate reservoir hoses, while the included pushrod connects to a correctly designed manual pedal linkage. A disc brake manufacturer based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures calipers, rotors, brake lines, fittings, valves and master cylinders for street-performance, motorsport and specialized systems. The chosen service part must agree with the complete system's connections, dimensions and operating demands.

Technical Details

Manufacturer part number: 260-14957-P
Material: Aluminum
Cylinder bore: 7/8"
Pressure circuits: 2
Stroke Length: 1.10 in
Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
Fluid capacity: 7.8 / 4.7 oz
Flange-to-end length: 6.55"
Overall Length: 10.93"
Mounting centers: 3.22–3.40"
Pushrod dimensions: 4.38" x 3/8-24
Finish: Chrome powder coat
Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
Service: Factory rebuild only; do not disassemble the tandem piston assembly

Fitment & Compatibility

Use the 3.22–3.40-inch flange range and check the actual installed rod length. The primary circuit should serve the axle with greater effective caliper piston area as detailed in the instructions. The 2:1 volume ratio does not replace a correctly selected proportioning valve or establish a 2:1 pressure bias.

Manufacturer Documents

With more than 20 years of experience, PMB Performance can help compare the specified part with the assembly you are servicing. Include the existing part identification and relevant hydraulic dimensions.
