Product details

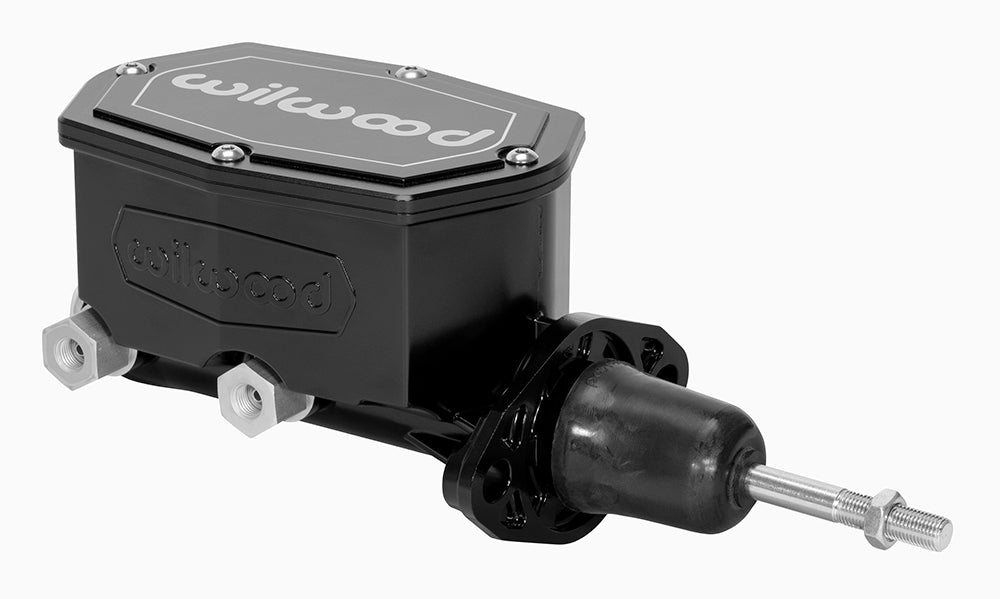

This black Compact Tandem master keeps both fluid chambers within a shorter integral-reservoir housing. A seven-eighths-inch bore and included threaded pushrod suit an appropriately matched manual brake layout, with pressure-port choices on both sides. Wilwood Engineering, the Camarillo, California disc brake manufacturer founded by Bill Wood in 1977, designs and builds systems for specialized, motorsport and street-performance applications. The product range covers brake lines, valves, fittings, calipers, master cylinders and rotors. A replacement component must preserve the intended relationship between the system's hydraulic and mechanical parts.
Technical Details
- Manufacturer part number: 260-14957-BK
- Material: Aluminum
- Cylinder bore: 7/8"
- Pressure circuits: 2
- Stroke Length: 1.10 in
- Reservoir Type: Integral tandem chambers, 7.8 and 4.7 oz
- Fluid capacity: 7.8 / 4.7 oz
- Flange-to-end length: 6.55"
- Overall Length: 10.93"
- Mounting centers: 3.22–3.40"
- Pushrod dimensions: 4.38" x 3/8-24
- Finish: Black E-coat
- Native pressure ports: 1/2-20 at both circuits; use the correct included outlet adapters and seal washers
- Circuit outlet adapters: Primary: 3/8-24 or 1/2-20 inverted flare; secondary: 3/8-24 or 9/16-18 inverted flare
- Hydraulic relationship: Equal pressure output from the two circuits before external proportioning; 2:1 primary/secondary volume relationship
- Service: Factory rebuild only; do not disassemble the tandem piston assembly
Fitment & Compatibility
Check the slotted 3.22–3.40-inch flange and the space needed by the complete rod-equipped assembly. The cylinder must reach its full 1.10-inch stroke before an external pedal stop. Fit the supplied line adapters to double-flared tubing, plug unused outlets and select any combination valve separately.
Manufacturer Documents
- Wilwood product specifications
- Wilwood DS1287 instructions and specifications
- Wilwood FL162 instructions and specifications
PMB Performance brings over 20 years of brake-system experience to component selection. Send the installed cylinder, pedal and connection details if you need help checking this configuration.
